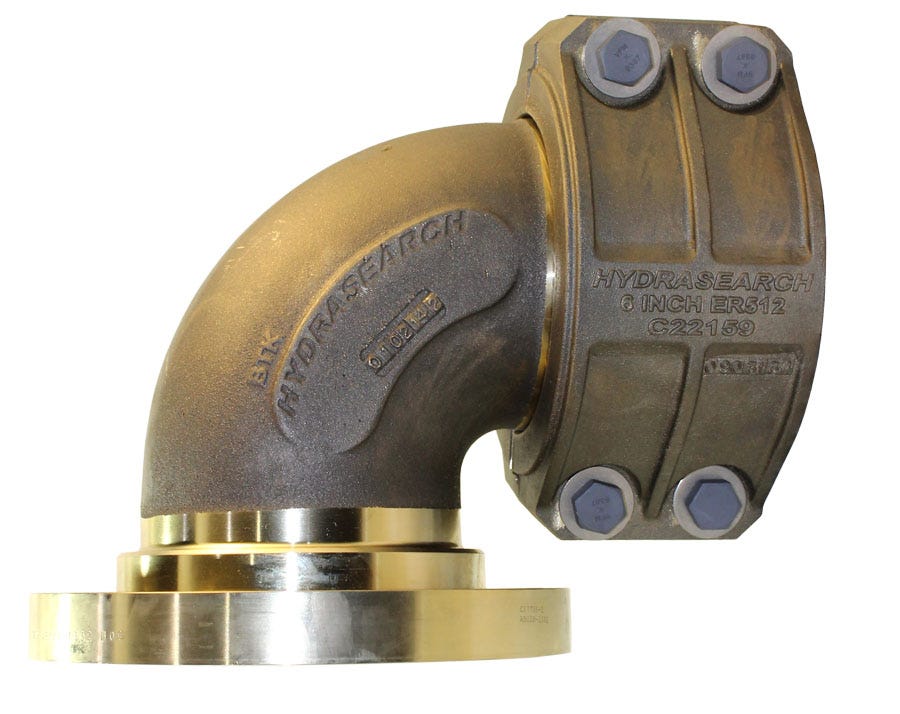

( MIL-DTL-24787/1, Type FL, Group IX, Class III, 250 Lb, 2-Piece End Fittings – 90º – Flange to Hose )

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: ER512 2580
  • Component 1: Required per Assembly – 1 Description – Swivel Flange C16915-2 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Required per Assembly – 1 Description – Elbow D16921 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
  • Component 4: Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-1
  • Component 5: Description – Nut Required per Assembly – 4 B16551-3 Material – Monel in accordance with QQ-N-281
  • Component 6: Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
  • H: '7.34
  • J: '10.13
  • K: '7.38
  • L: '8.88
  • M: '0.69
  • N: '1.19
  • R: '4.00
  • S: '6.31
  • T: '11.32
  • A: '9.20
  • D: '5.07
  • Est. Wt. (lbs.): '68
  • Hydrasearch Drawing Number: C22199
  • IPS Size: 6
  • Mil Spec: MIL-DTL-24787/1
  • No. of Bolt Holes: 12

Specification Table

Applicable HosesER512 2580
Component 1Required per Assembly – 1 Description – Swivel Flange C16915-2 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Required per Assembly – 1 Description – Elbow D16921 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22159
Component 4Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-1
Component 5Description – Nut Required per Assembly – 4 B16551-3 Material – Monel in accordance with QQ-N-281
Component 6Description – Washer B16551-2 Material – Monel in accordance with QQ-N-281 Required per Assembly – 4
H'7.34
J'10.13
K'7.38
L'8.88
M'0.69
N'1.19
R'4.00
S'6.31
T'11.32
A'9.20
D'5.07
Est. Wt. (lbs.)'68
Hydrasearch Drawing NumberC22199
IPS Size6
Mil SpecMIL-DTL-24787/1
No. of Bolt Holes12
