90EF-449DA-3-48 – End Fittings – 90º – Male Sil-Braze to Hose (MIL-DTL-24787/4, Type EL, Group IV)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/4, Type EL, Group IV, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 375-190784 & FC9589-375,
Use with the following hose: HS4265, HS4224, 2562, 150901

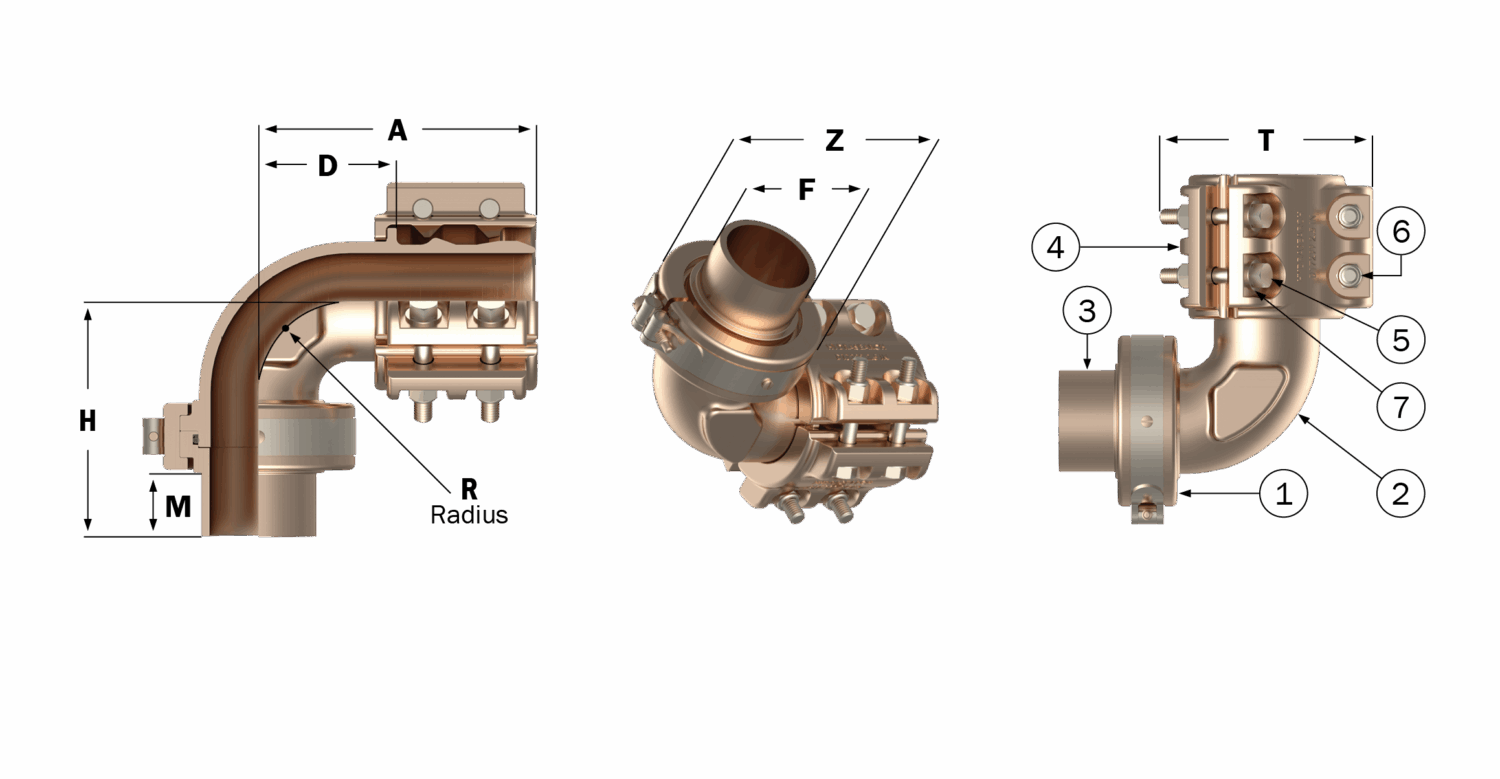

Specification

  • Part Number: 90EF-449DA-3-48
  • Hydrasearch Drawing Number: D18070
  • IPS Size: 3
  • A: 6.01
  • D: 3.09
  • F: 3.50
  • H: 6.65
  • M: 2.55
  • R: 2.09
  • Z: 5.19
  • T: 5.58
  • Est. Wt. (lbs.): 16.00

Specification Table

Part Number90EF-449DA-3-48
Hydrasearch Drawing NumberD18070
IPS Size3
A6.01
D3.09
F3.50
H6.65
M2.55
R2.09
Z5.19
T5.58
Est. Wt. (lbs.)16.00

Components Table

DescriptionReq’d per Ass’y2-402.5-483-483.5-644-64Material
Clamp Assy.1C18078C18079C18080C18081C18082Aluminum. Bronze
Elbow1D18124D18125D18126D18127D18128Aluminum. Bronze
Tailpiece1C18088C18089C18090C18091C18092Aluminum. Bronze
Grip Segment3D17299-1D17300-1D17300-1 D17301-1 D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-1 B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B17986B17986Monel
