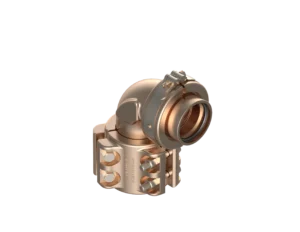

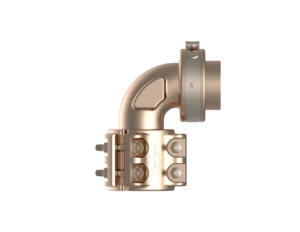

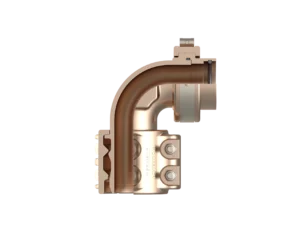

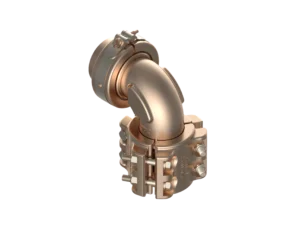

90EF-449D-2-40 – End Fittings – 90º – Female Sil-Braze to Hose (MIL-DTL-24787/4, Type EL, Group IV)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/4, Type EL, Group IV, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 375-190785 & FC9074-375,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90EF-449D-2-40
  • Hydrasearch Drawing Number: D18063
  • IPS Size: 2
  • A: 5.75
  • D: 2.84
  • F: 2.38
  • H: 4.31
  • M: .83
  • R: 1.88
  • Z: 5.35
  • T: 4.00
  • Est. Wt. (lbs.): 10.00

Specification Table

Part Number90EF-449D-2-40
Hydrasearch Drawing NumberD18063
IPS Size2
A5.75
D2.84
F2.38
H4.31
M.83
R1.88
Z5.35
T4.00
Est. Wt. (lbs.)10.00

Specification Image

90EF-449D

Components Table

DescriptionReq’d per Ass’y2-402.5-483-483.5-644-64Material
Clamp Assy.1C18078C18079C18080C18081C18082Aluminum. Bronze
Elbow1D18124D18125D18126D18127D18128Aluminum. Bronze
Tailpiece1C18083C18084C18085C18086C18087Aluminum. Bronze
Grip Segment3D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B17986B17986Monel
