90EF-449B5-2-40

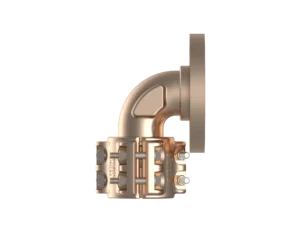

90EF-449B5-2-40 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class II, 150/400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group IV, Class II, 150/400lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 375-190757,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90EF-449B5-2-40
  • Hydrasearch Drawing Number: D18573
  • IPS Size: 2
  • No. of Bolt Holes: 6
  • M: .56
  • A: 5.75
  • D: 2.83
  • H: 3.50
  • J: 5.56
  • K: 3.22
  • L: 4.44
  • N: .81
  • R: 1.88
  • S: 2.24
  • T: 5.35
  • Est. Wt. (lbs.): 11.00

Specification Table

Part Number90EF-449B5-2-40
Hydrasearch Drawing NumberD18573
IPS Size2
No. of Bolt Holes6
M.56
A5.75
D2.83
H3.50
J5.56
K3.22
L4.44
N.81
R1.88
S2.24
T5.35
Est. Wt. (lbs.)11.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17765C17796C17795C17766C17794C17767Aluminum. Bronze
Elbow1D17862D17863D17870D17886D17890D17896Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987D17987Monel
Lock Nut6B18176B18176B18176B18176B17984D17984Monel
Washer6B18175B18175B18175B18175B17986D17986Monel
