90EF-449B4-4-64-BSS – End Fittings – 90º – Hose to Flange (150 Lb. Flange per A.N.S.I. B16.5)
90EF-449B4-4-64-BSS – End Fittings – 90º – Hose to Flange (150 Lb. Flange per A.N.S.I. B16.5)iso-1-23iso-2-20std-18q-cut-22iso-3-3
90EF-449B4-4-64-BSS

90EF-449B4-4-64-BSS – End Fittings – 90º – Hose to Flange (150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF

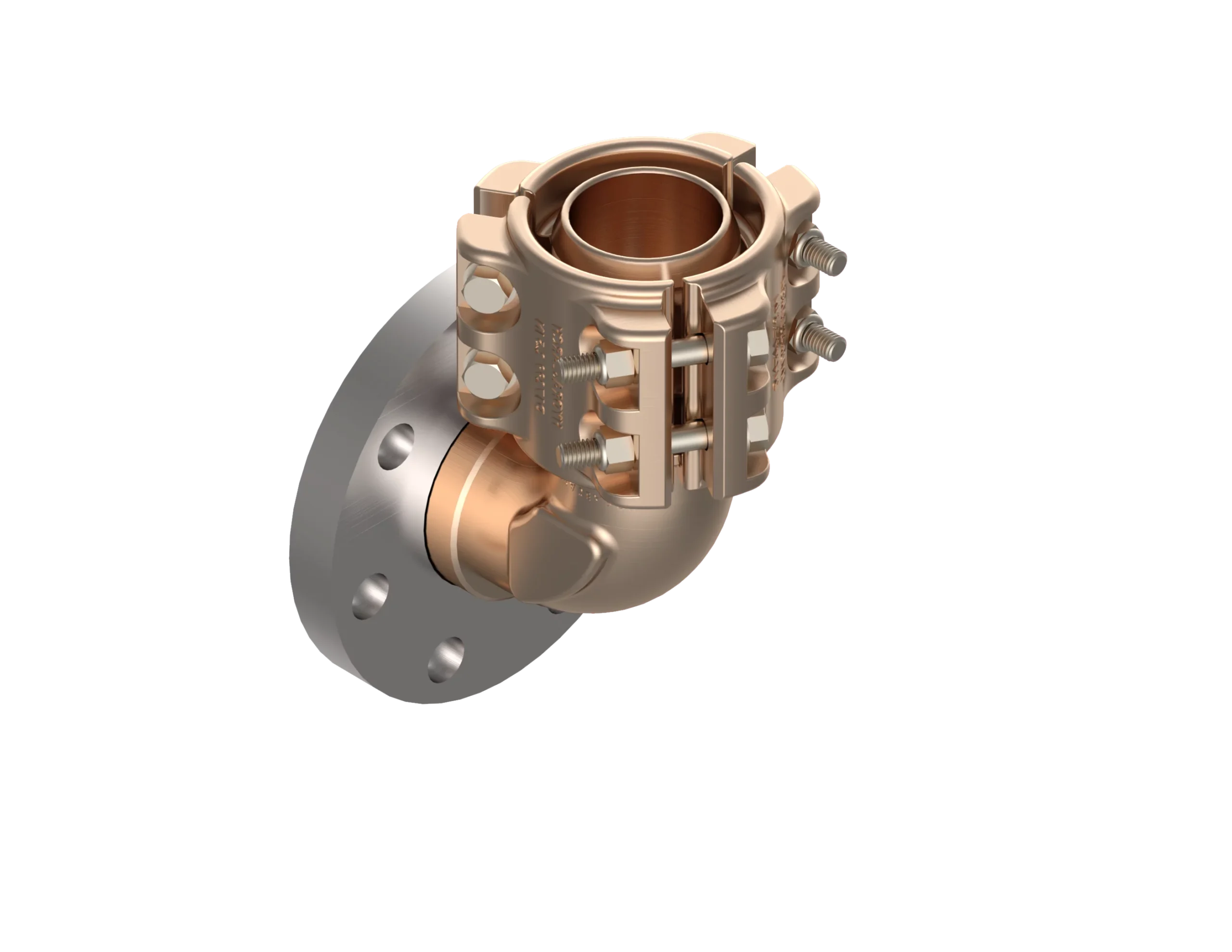

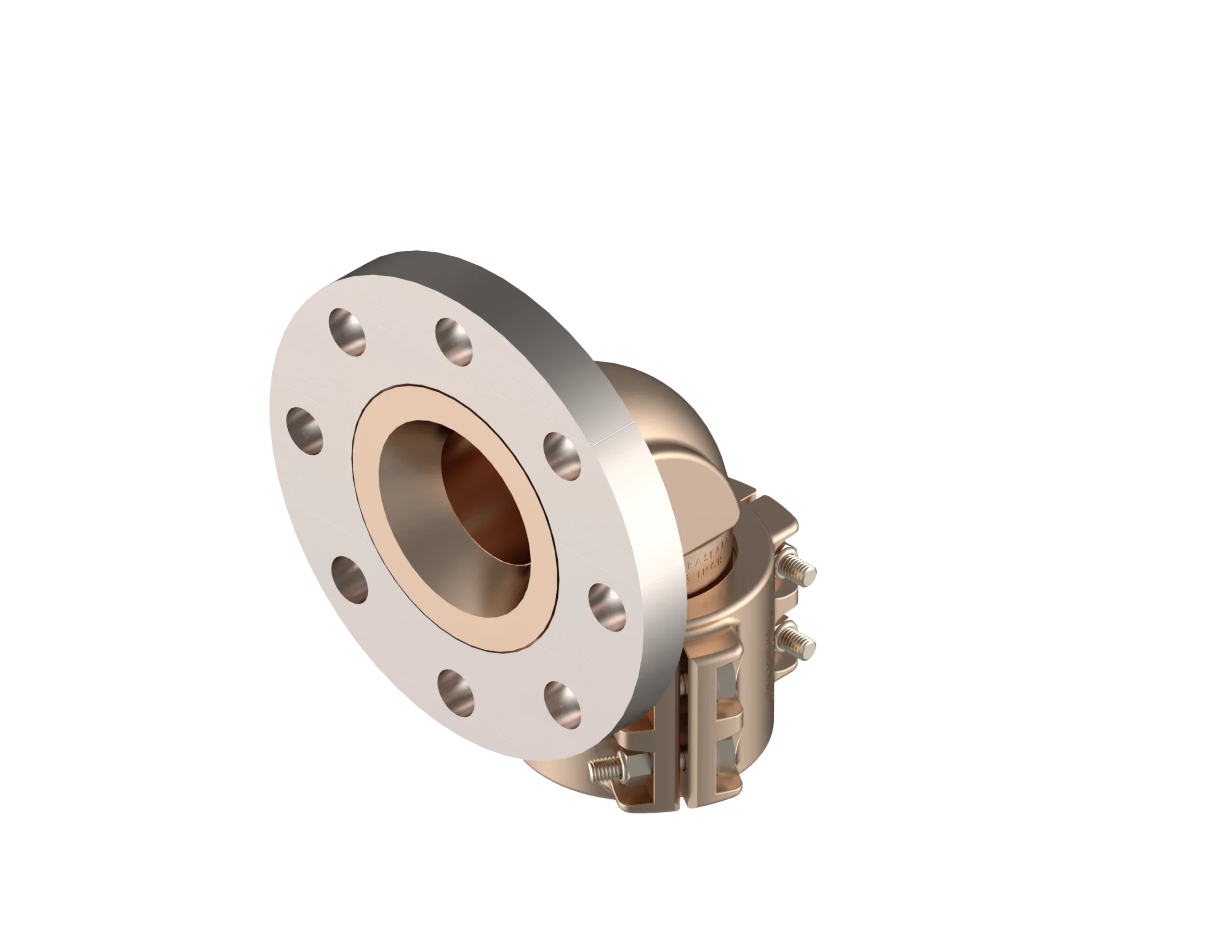

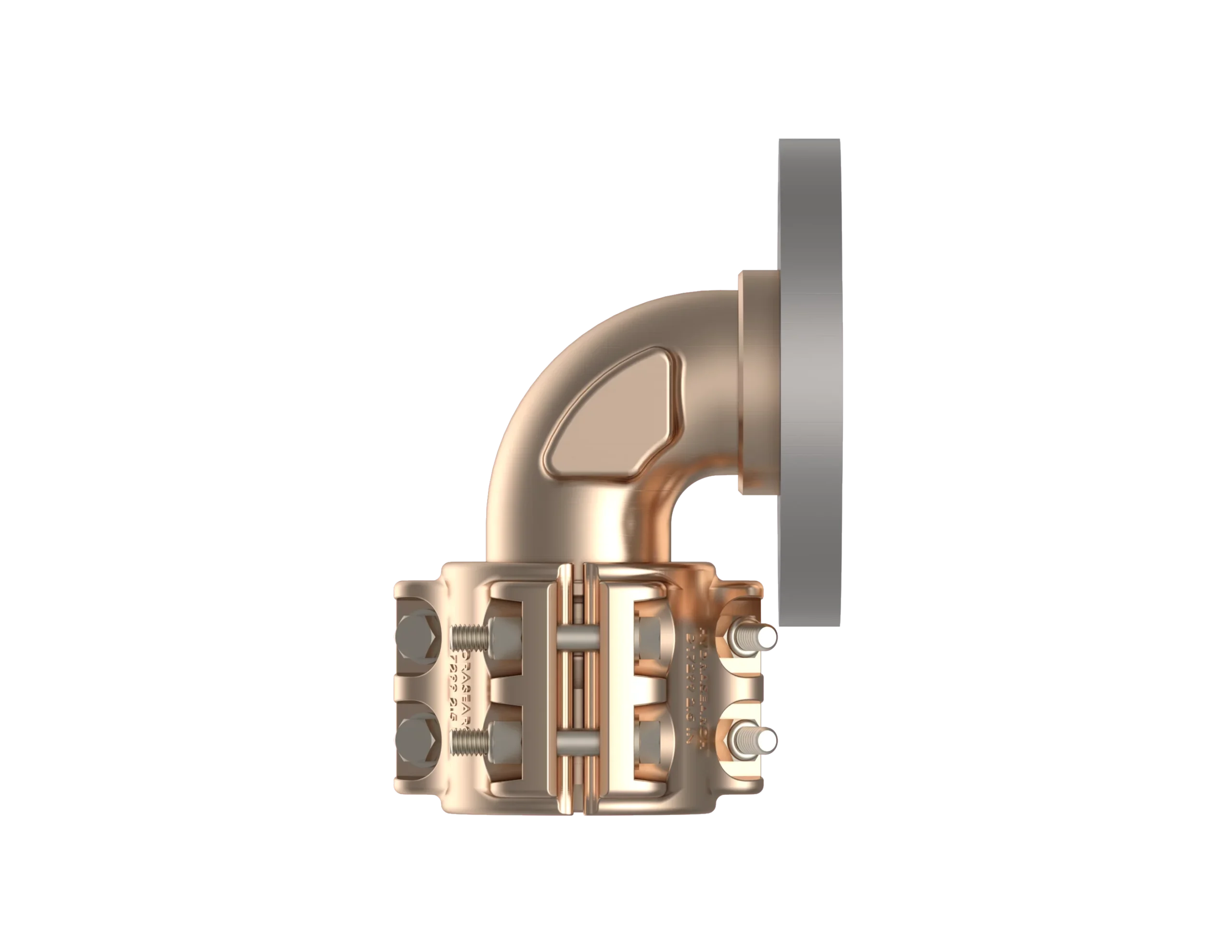

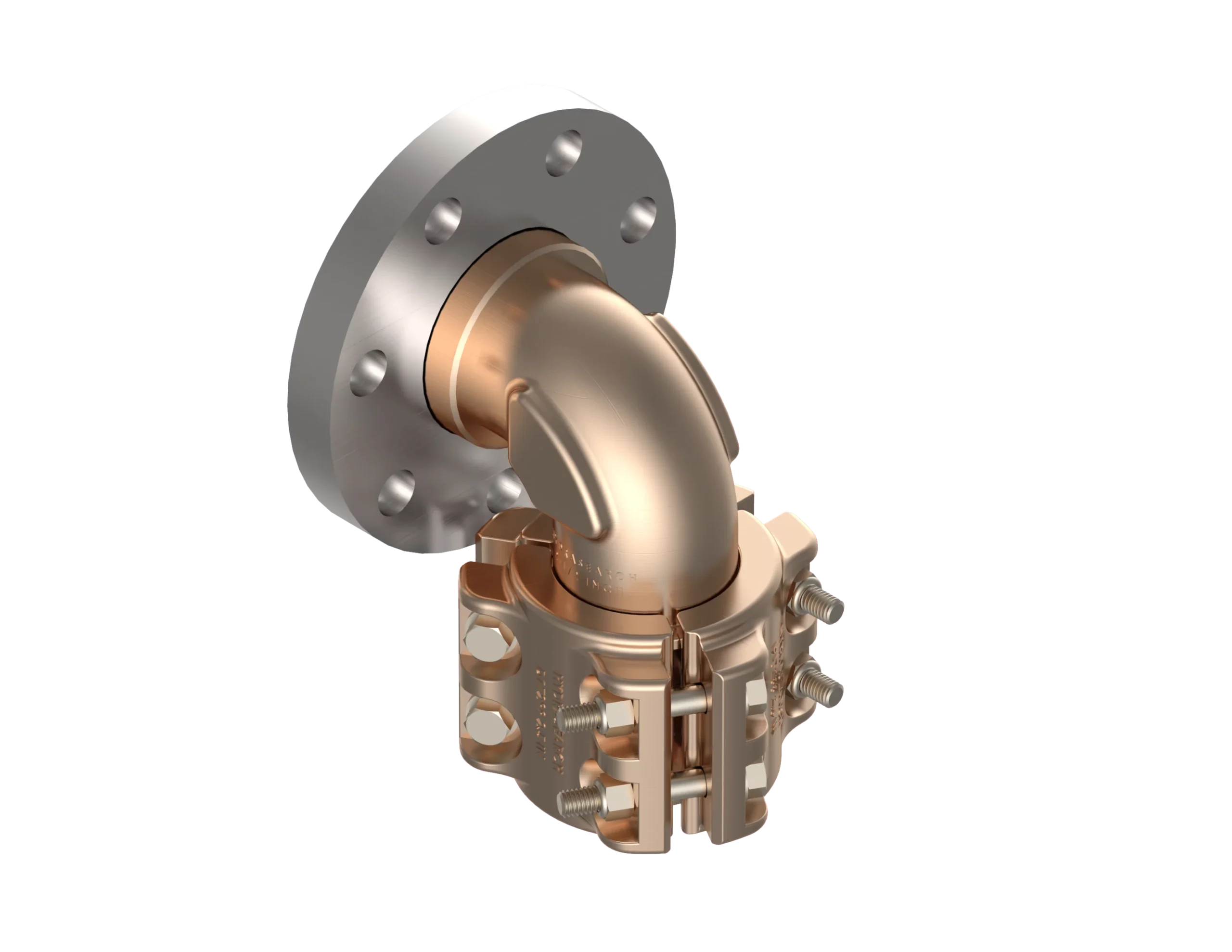

( 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 413-190769,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90EF-449B4-4-64-BSS
  • Hydrasearch Drawing Number: D19630
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • M: .75
  • A: 6.80
  • D: 3.88
  • H: 4.62
  • J: 9.00
  • K: 5.28
  • L: 7.50
  • N: .48
  • R: 2.81
  • S: 4.28
  • T: 6.50
  • Est. Wt. (lbs.): 22.00

Specification Table

Part Number90EF-449B4-4-64-BSS
Hydrasearch Drawing NumberD19630
IPS Size4
No. of Bolt Holes8
M.75
A6.80
D3.88
H4.62
J9.00
K5.28
L7.50
N.48
R2.81
S4.28
T6.50
Est. Wt. (lbs.)22.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1-C18149C18150C18151-C19632Stainless Steel
Elbow1D17862D17862D17870D17886D17890D17896Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
