90EF-449B4-2-40 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class V, 150 Lb. Flange per A.N.S.I. B16.5)
90EF-449B4-2-40 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class V, 150 Lb. Flange per A.N.S.I. B16.5)iso-1-24iso-2-21std-19q-cut-23
90EF-449B4-2-40

90EF-449B4-2-40 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class V, 150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF

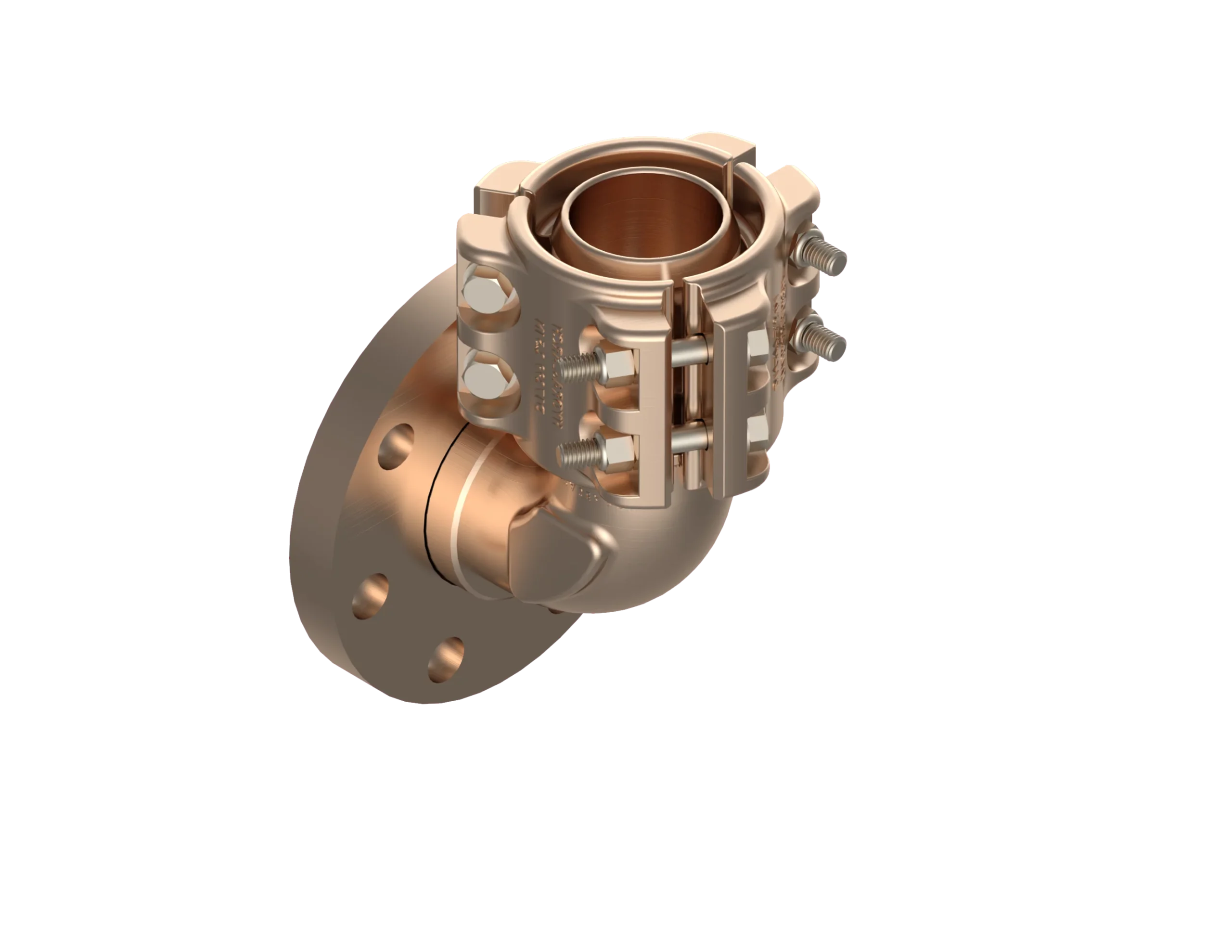

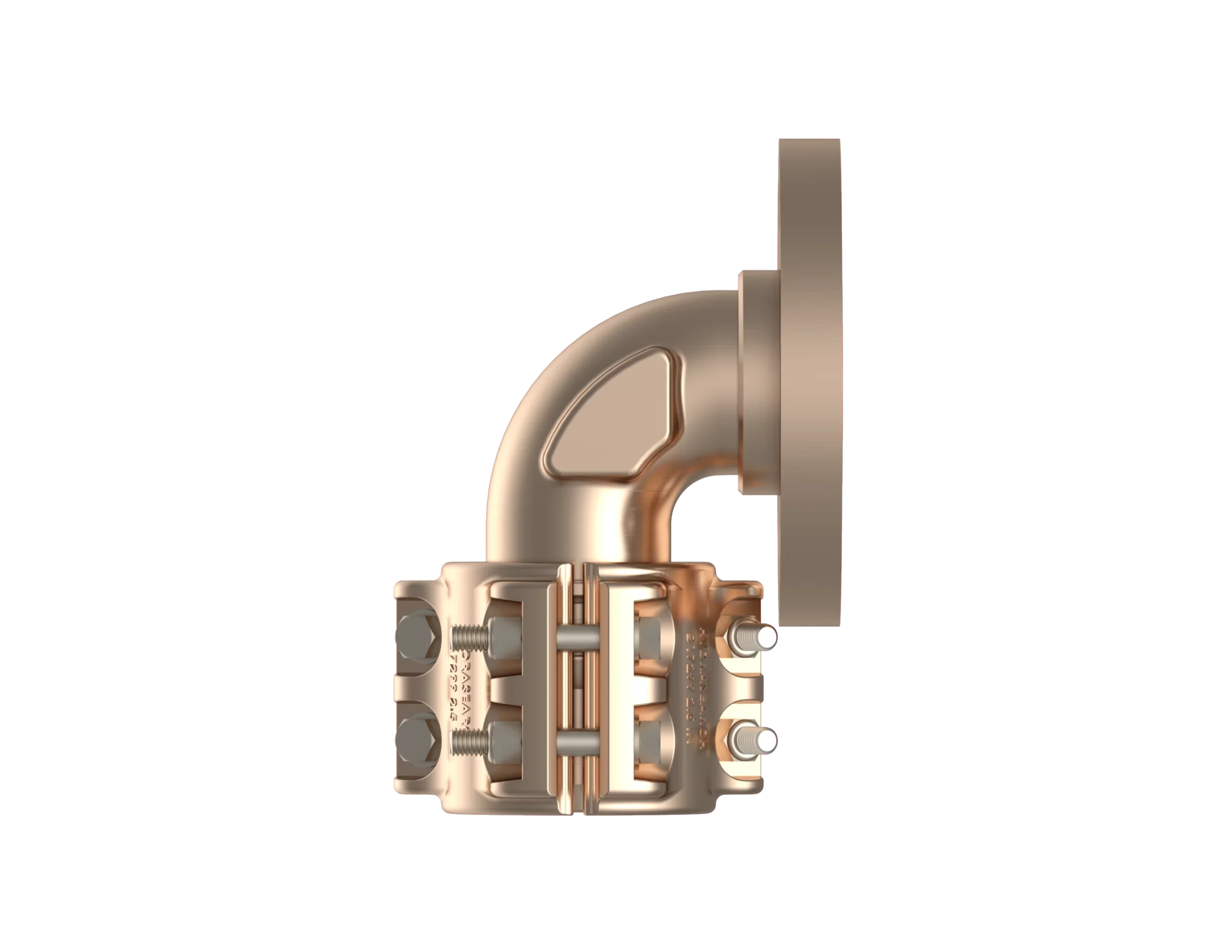

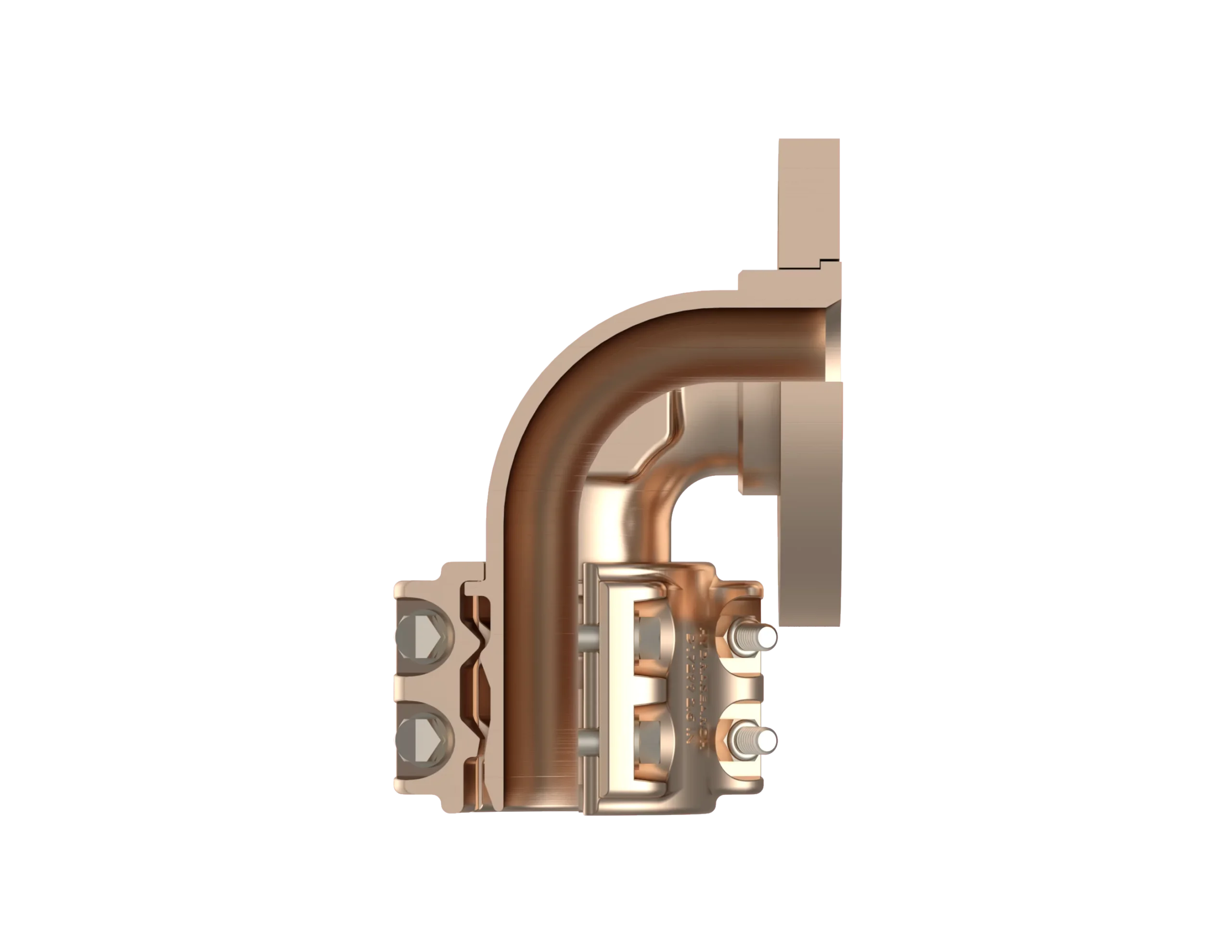

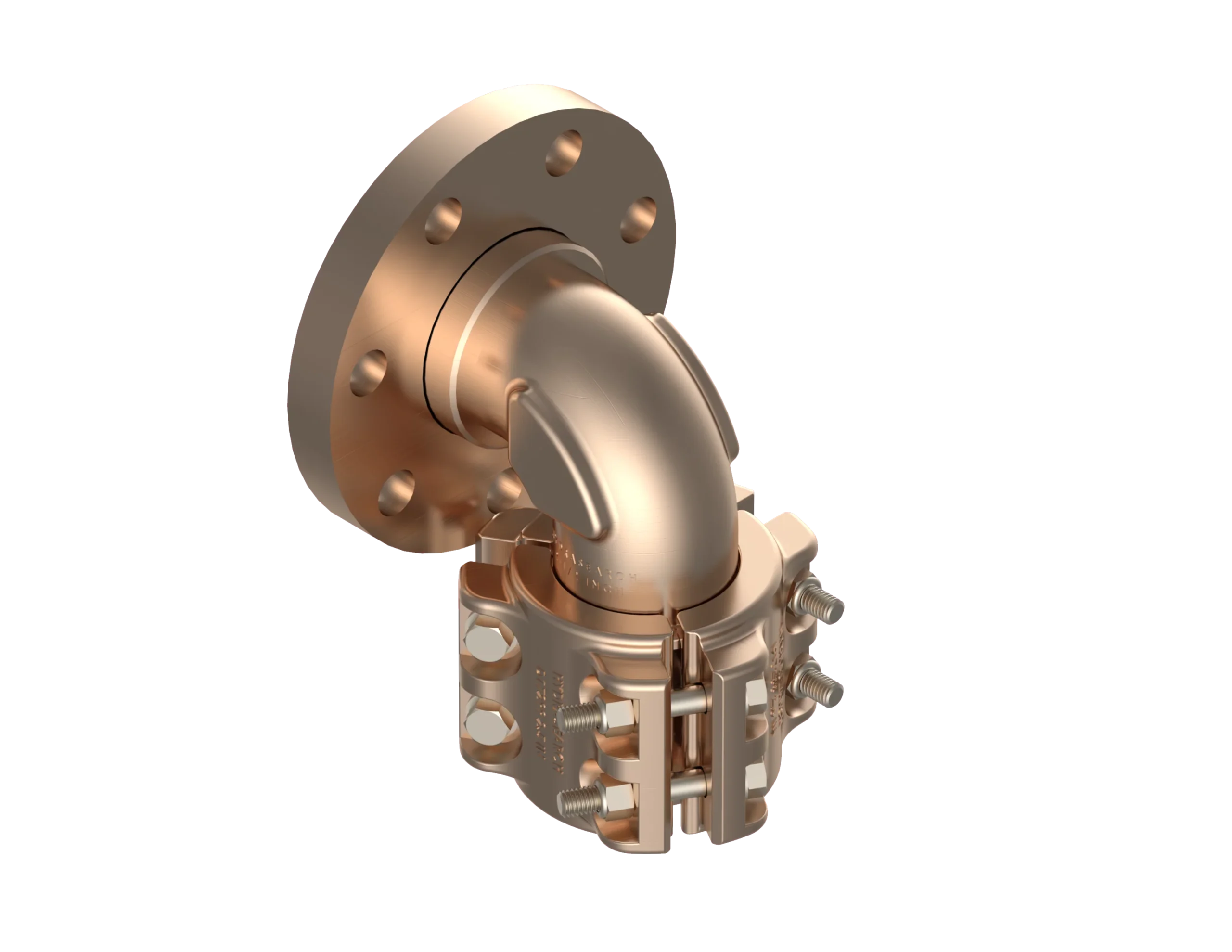

( MIL-DTL-24787/1, Type FL, Group IV, Class V, 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 375-190769,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90EF-449B4-2-40
  • Hydrasearch Drawing Number: D17956
  • IPS Size: 2
  • No. of Bolt Holes: 4
  • M: .75
  • A: 5.75
  • D: 2.83
  • H: 3.50
  • J: 6.00
  • K: 3.22
  • L: 4.75
  • N: .42
  • R: 1.88
  • S: 2.24
  • T: 5.35
  • Est. Wt. (lbs.): 9.00

Specification Table

Part Number90EF-449B4-2-40
Hydrasearch Drawing NumberD17956
IPS Size2
No. of Bolt Holes4
M.75
A5.75
D2.83
H3.50
J6.00
K3.22
L4.75
N.42
R1.88
S2.24
T5.35
Est. Wt. (lbs.)9.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17966C17968C17969C17970C17971C17972Bronze
Elbow1D17862D17862D17870D17886D17890D17896Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
