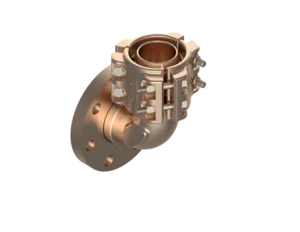

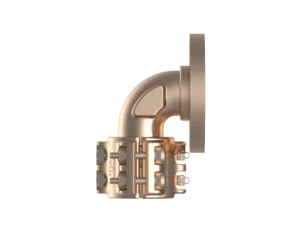

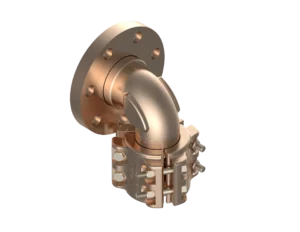

90EF-449B3-3.5-64 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class IV, 150 Lb. Flange per MIL-PRF-20042)
90EF-449B3-3.5-64 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class IV, 150 Lb. Flange per MIL-PRF-20042)iso-1-21iso-2-18std-16q-cut-20
90EF-449B3-3.5-64

90EF-449B3-3.5-64 – End Fittings – 90º – Hose to Flange (MIL-DTL-24787/1, Type FL, Group IV, Class IV, 150 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group IV, Class IV, 150lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 375-190656,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: 90EF-449B3-3.5-64
  • Hydrasearch Drawing Number: D17939
  • IPS Size: 3.5
  • No. of Bolt Holes: 8
  • M: .56
  • A: 6.80
  • D: 3.88
  • H: 4.62
  • J: 7.19
  • K: 5.22
  • L: 6.06
  • N: .50
  • R: 2.81
  • S: 3.81
  • T: 6.50
  • Est. Wt. (lbs.): 19.00

Specification Table

Part Number90EF-449B3-3.5-64
Hydrasearch Drawing NumberD17939
IPS Size3.5
No. of Bolt Holes8
M.56
A6.80
D3.88
H4.62
J7.19
K5.22
L6.06
N.50
R2.81
S3.81
T6.50
Est. Wt. (lbs.)19.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17925C17929C17931C17933C17938C17940Bronze
Elbow1D17862D17862D17870D17886D17890D17896Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
