90EF-1602CL-1216
90EF-1602CL-1216 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group II)
Print
Download PDF
( MIL-DTL-24787/3, Type CL, Group II )
Description:
Equal to Aeroquip P/N 4-191307,
Use with the following hose:
Wire reinforced hoses I.A.W. MIL-DTL-24135/2
Specification
Specification Table
| Applicable Hoses | Wire reinforced hoses in accordance with MIL-DTL-24135/2 |
|---|---|
| Component 1 | Required per Assembly – 1 Description – Elbow Assembly Material – Monel/Cuni C19914 |
| Component 1A | Required per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18874-1 |
| Component 1B | Required per Assembly – 1 B19273 Description – Adapter Material – Monel in accordance with QQ-N-281 |
| Component 1C | Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple B19834-2 |
| Component 2 | Required per Assembly – 1 Description – Socket C19700-1 Material – Monel in accordance with QQ-N-281 |
| H | 2.60'' |
| R | 1.50'' |
| W | 1.38'' |
| A | 5-1/4'' |
| C | 2.12'' |
| G | 1.81'' |
| Equal To Aeroquip No | 4-191307-3/4-16'' |
| Est. Wt. (lbs.) | 2.87'' |
| Hydrasearch Drawing Number | C20210 |
| IPS Size | 3/4'' |
| Mil Spec | MIL-DTL-24787/3 |
| NSN No. | 4730-01-202-9355 |
| Thread Size T Br Thread Cl 3A | 2"-12'' |

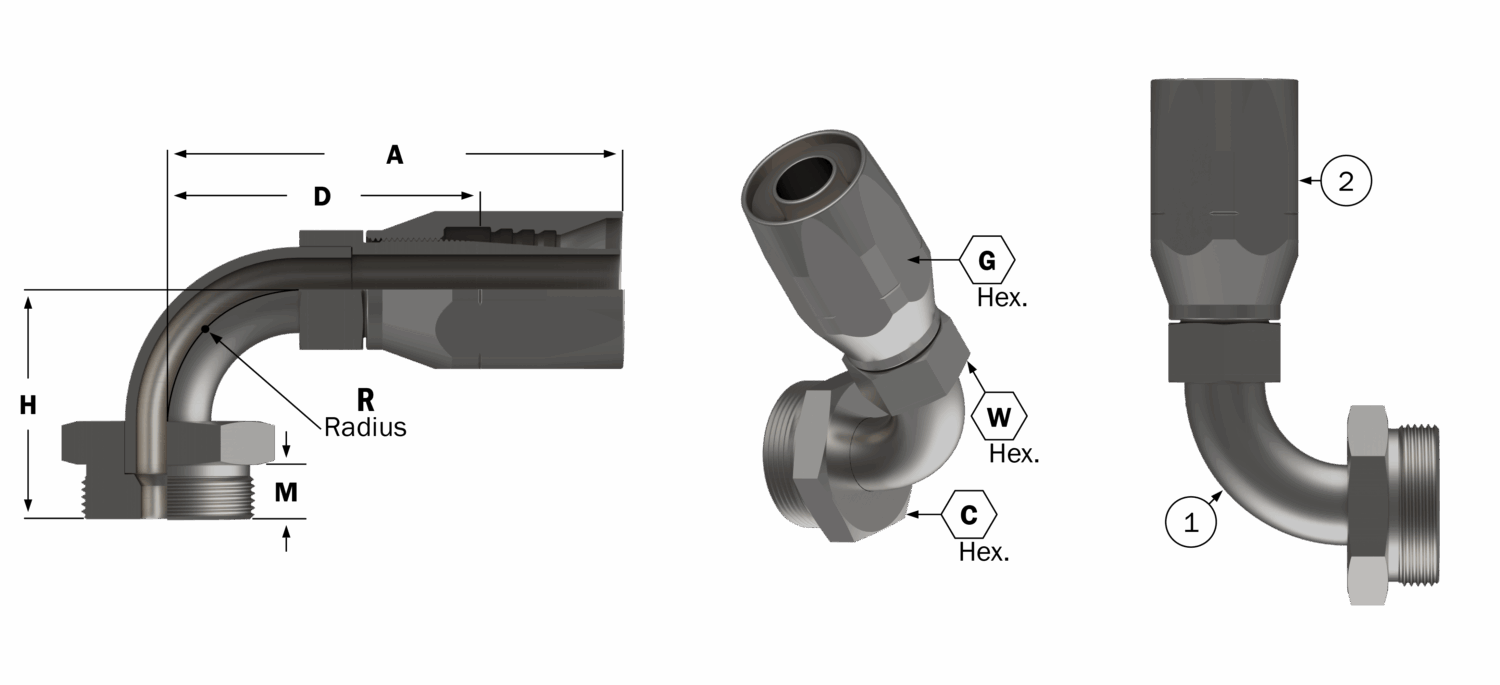

Specification Image
