90EF-1602CL-0812

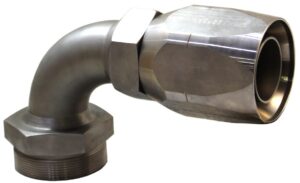

90EF-1602CL-0812 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group II)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group II )

Description:

Equal to Aeroquip P/N 4-191307,
Use with the following hose: Wire reinforced hoses I.A.W. MIL-DTL-24135/2

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19912
  • Component 1A: Required per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-3
  • Component 1B: Required per Assembly – 1 Description – Adapter Material – Monel in accordance with QQ-N-281 B19457
  • Component 1C: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20127-1
  • Component 2: Required per Assembly – 1 Description – Socket C19846-1 Material – Monel in accordance with QQ-N-281
  • H: 2.31''
  • R: 1.25''
  • W: 1.06''
  • A: 4.52''
  • C: 1.81''
  • G: 1.500''
  • Equal To Aeroquip No : 4-191307-1/2-12''
  • Est. Wt. (lbs.): 1.71''
  • Hydrasearch Drawing Number: C20208
  • IPS Size: 1/2''
  • Mil Spec: MIL-DTL-24787/3
  • NSN No.: 4730-00-067-8689 4730-01-202-9356 4730-00-911-1551
  • Thread Size T Br Thread Cl 3A: 1-3/4"-12''

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Elbow Assembly C19912
Component 1ARequired per Assembly – 1 Description – Elbow Material – Monel in accordance with MIL-T-1368 B18873-3
Component 1BRequired per Assembly – 1 Description – Adapter Material – Monel in accordance with QQ-N-281 B19457
Component 1CRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nipple C20127-1
Component 2Required per Assembly – 1 Description – Socket C19846-1 Material – Monel in accordance with QQ-N-281
H2.31''
R1.25''
W1.06''
A4.52''
C1.81''
G1.500''
Equal To Aeroquip No 4-191307-1/2-12''
Est. Wt. (lbs.)1.71''
Hydrasearch Drawing NumberC20208
IPS Size1/2''
Mil SpecMIL-DTL-24787/3
NSN No.4730-00-067-8689 4730-01-202-9356 4730-00-911-1551
Thread Size T Br Thread Cl 3A1-3/4"-12''
