90EF-1600CL-3232

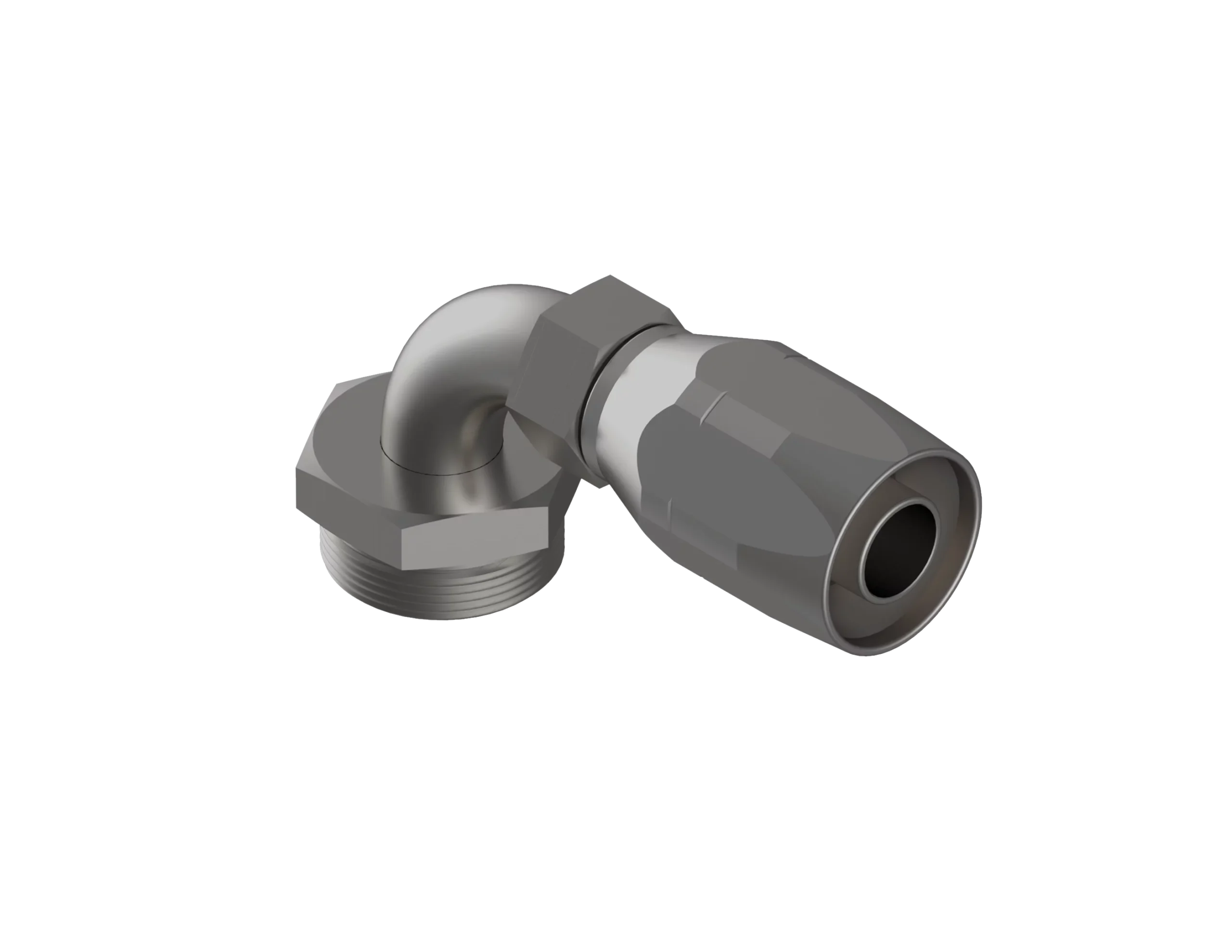

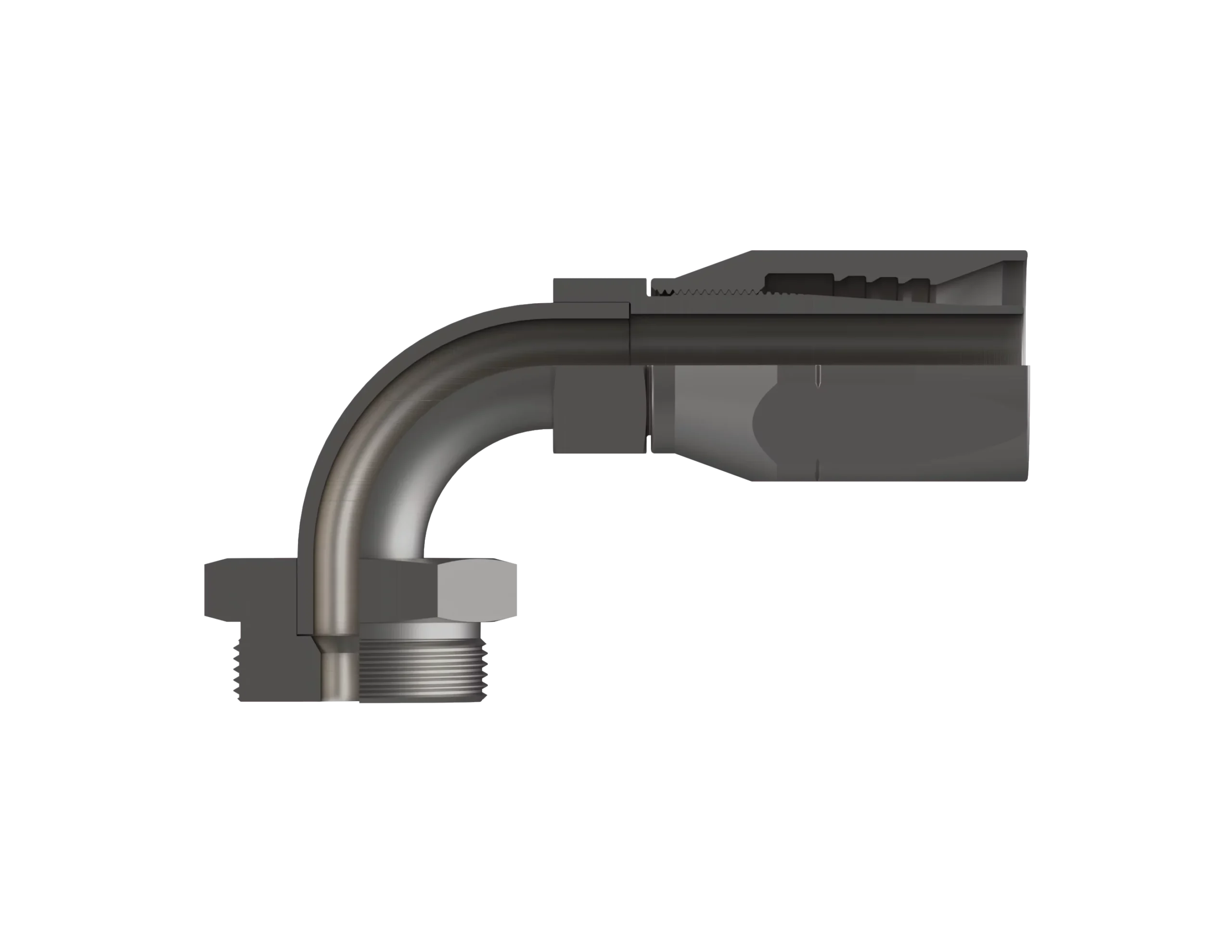

90EF-1600CL-3232 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group I)
Print
Download PDF
( MIL-DTL-24787/3, Type CL, Group I, End Fitting - 90° )
Description:
Equal to Aeroquip P/N 4-191304,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | 90EF-1600CL-3232 |
|---|---|
| Hydrasearch Drawing Number | C20060 |
| IPS Size | 2 |
| Thread CL-3A | 3-3/4”-12 |
| A | 7.38 |
| C | 3.88 |
| D | 4.94 |
| G | 3.00 |
| H | 4.05 |
| M | .88 |
| R | 2.50 |
| W | 2.50 |
| Est. Wt. (lbs.) | 10.64 |
Components Table
| Desc. | Req’d per Ass’y | 0406 | 0608 | 0812 | 1216 | 1616 | Mat’l |
| Elbow | 1 | C19910 | C19911 | C19912 | C19914 | C19915 | Monel |
| Socket | 1 | C19795-1 | C19680-1 | C19797-1 | C19700-1 | C19700-1 | Monel |
| Desc. | Req’d per Ass’y | 1620 | 2020 | 2024 | 2432 | 3232 | Mat’l |
| Elbow | 1 | C19916 | C19917 | C19918 | C19919 | C19920 | Monel |
| Socket | 1 | C19798-1 | C19798-1 | C19799-1 | C19694-1 | C19694-1 | Monel |
