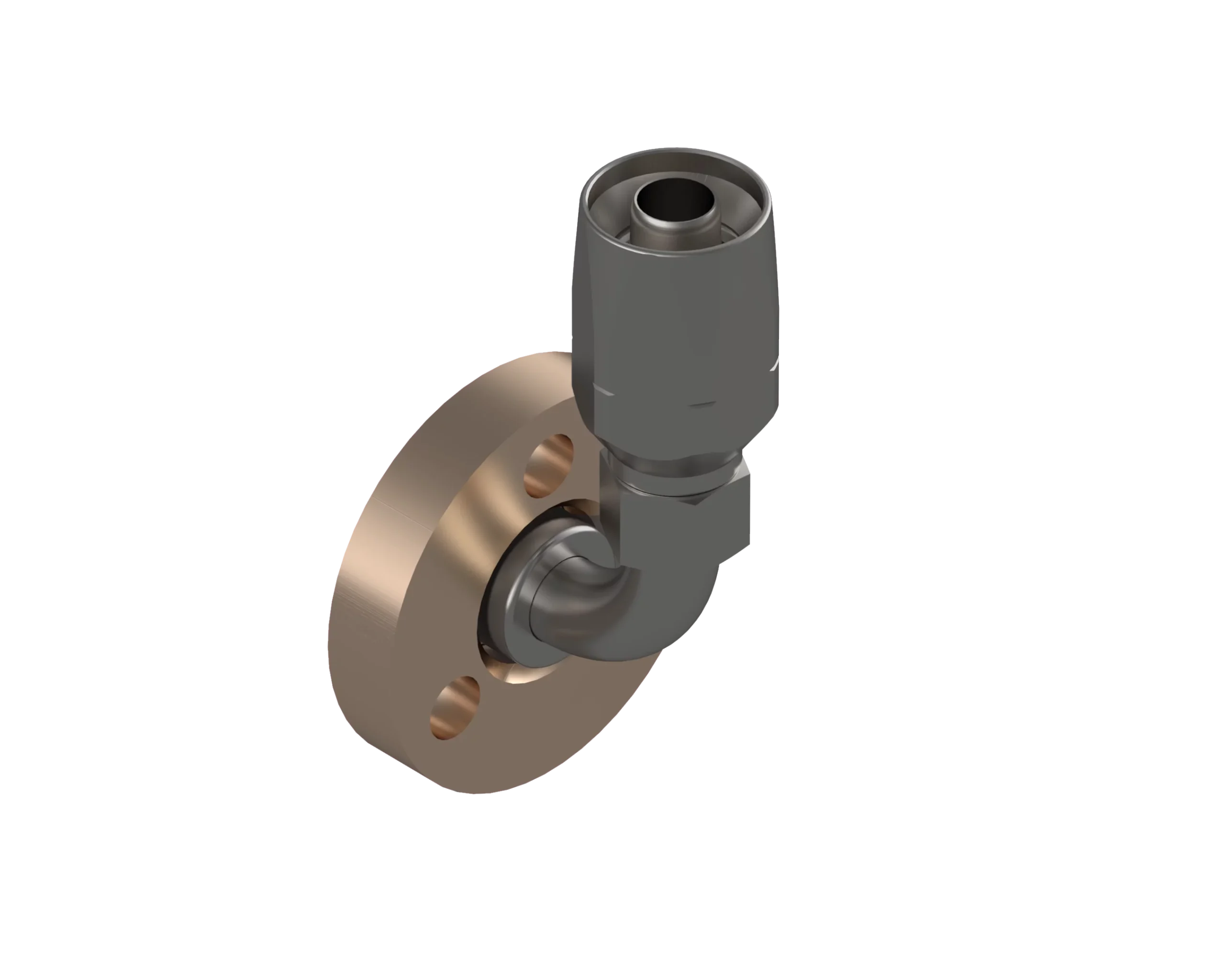

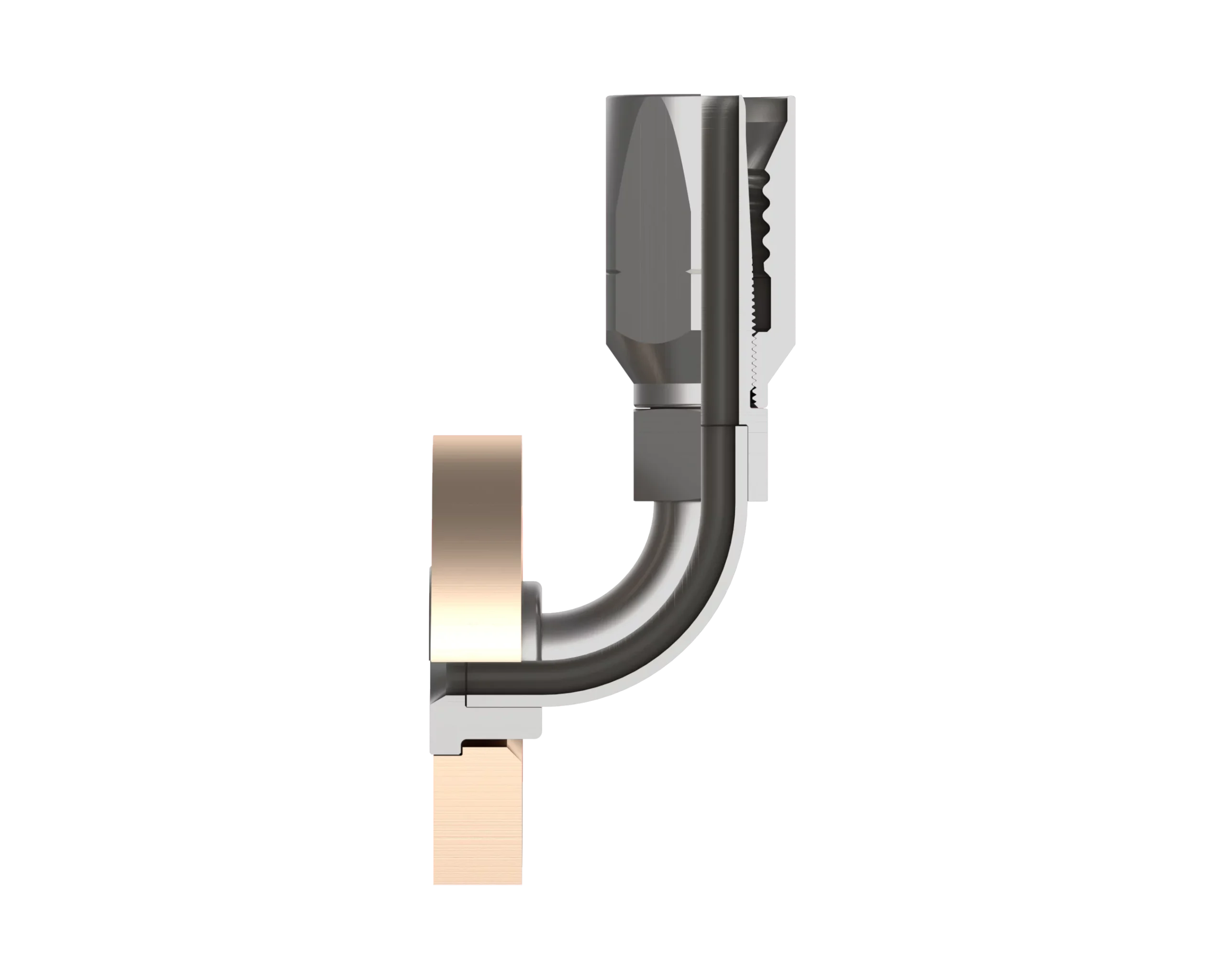

90EF-1600B5-1220 – End Fittings – 90º Flange to Hose (MIL-DTL-24787/1, Type FL, Group I, Class II, 150/400Lb. Flange per MIL-PRF-20042)
Print
Download PDF
( MIL-DTL-24787/1, Type FL, Group I, Class II, 150/400lb, End Fitting - Straight )
Description:
Equal to Aeroquip P/N FC9224-463,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | 90EF-1600B5-1220 |
|---|---|
| Hydrasearch Drawing Number | C20186 |
| IPS Size | 3/4 |
| No. of Bolt Holes | 4 |
| A | 6.10 |
| C | 2.25 |
| D | 3.78 |
| H | 2.49 |
| J | 3.81 |
| L | 2.69 |
| M | .56 |
| N | .69 |
| R | 1.50 |
| Est. Wt. (lbs.) | 3.61 |
Components Table
| Desc. | Req’d per Ass’y | 0812 | 0816 | 1216 | 1220 | 1616 | 1620 | Mat’l |
| Elbow | 1 | C19857 | C20026 | C19858 | C20027 | C20028 | C19859 | Monel |
| Socket | 1 | C19797-1 | C19700-1 | c19700-1 | C19798-1 | C19700-1 | C19798-1 | Monel |
| Flange | 1 | C19522 | C19522 | C19525 | C19525 | C19526 | C19526 | Aluminum. Bronze |
| Desc. | Req’d per Ass’y | 1624 | 2024 | 2032 | 2432 | 3232 | Mat’l |
| Elbow | 1 | C20029 | C19860 | C19861 | C19861 | C19862 | Monel |
| Socket | 1 | C19799-1 | C19799-1 | C19694-1 | C19694-1 | C19694-1 | Monel |
| Flange | 1 | C19526 | C11119527 | C19527 | C19528 | C17765 | Aluminum. Bronze |
