90EF-1546D-3-48 – End Fittings – 90º – Male Split to Hose (MIL-DTL-24787/4, Type EL, Group X)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/4, Type EL, Group X, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FC9636-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90EF-1546D-3-48
  • Hydrasearch Drawing Number: D18357
  • IPS Size: 3
  • A: 2.35
  • B: 5.60
  • C: 5.72
  • D: 2.83
  • E: 4.370
  • F: 3.625
  • G: .332
  • H: .317
  • K: 3.75
  • R: 2.09
  • Est. Wt. (lbs.): 16.00

Specification Table

Part Number90EF-1546D-3-48
Hydrasearch Drawing NumberD18357
IPS Size3
A2.35
B5.60
C5.72
D2.83
E4.370
F3.625
G.332
H.317
K3.75
R2.09
Est. Wt. (lbs.)16.00

Specification Image

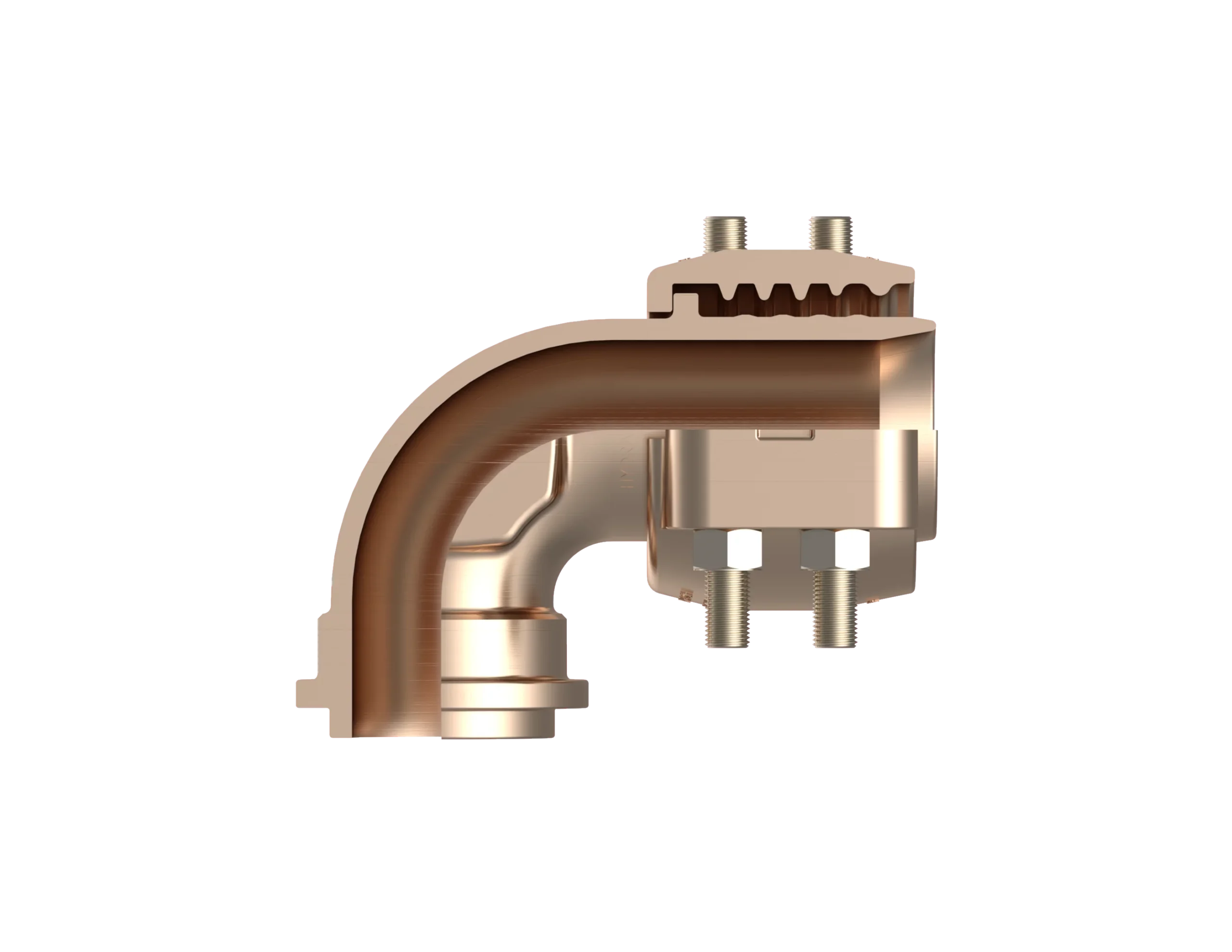

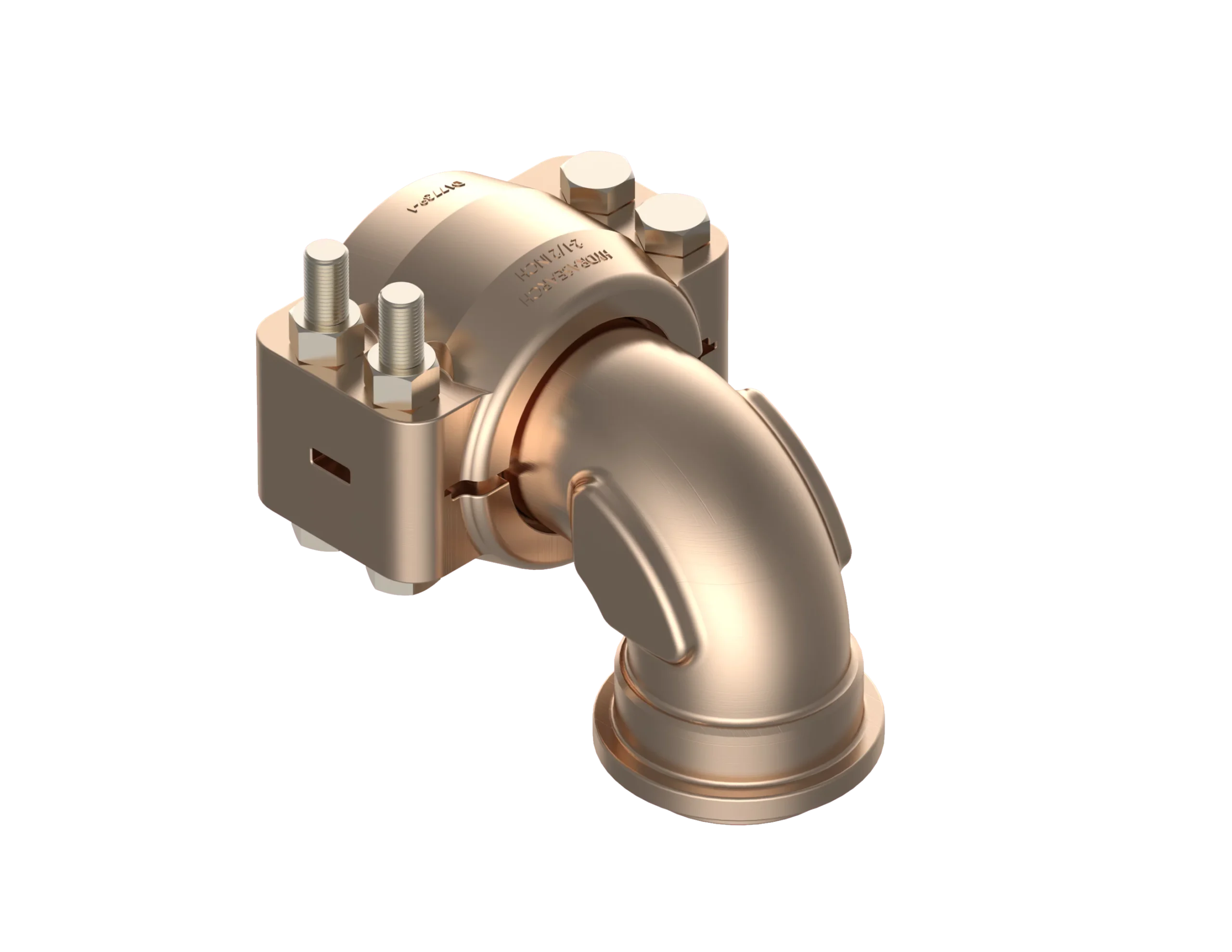

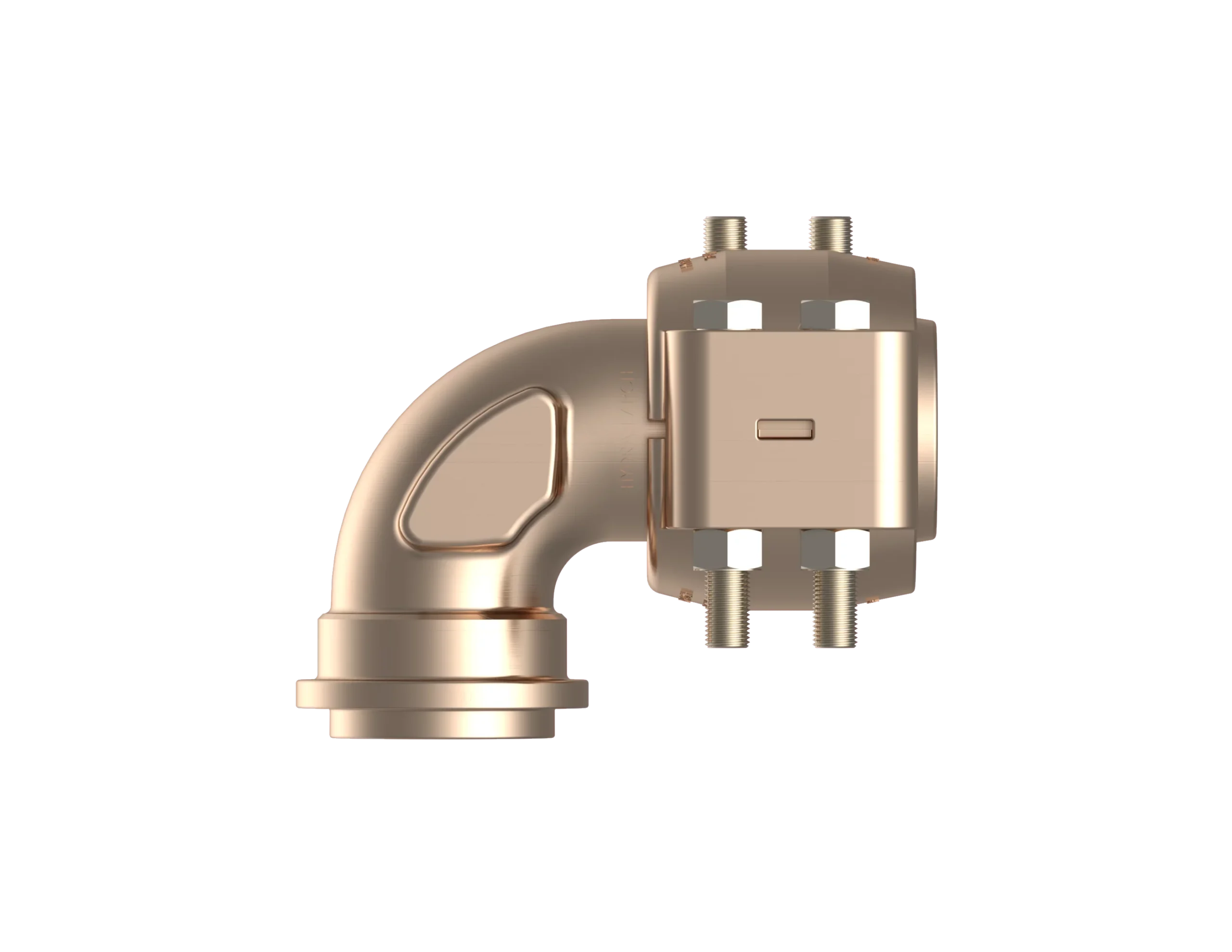

90EF-1546D

Components Table

DescriptionReq’d per Ass’y2-402.5-483-483.5-644-64Material
Elbow1C18330C18331C18332D18333D18334Aluminum. Bronze
Grip Segment2D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17748-2B17748-2B17749-2B17749-2Monel
