90EF-1546B5-4-64

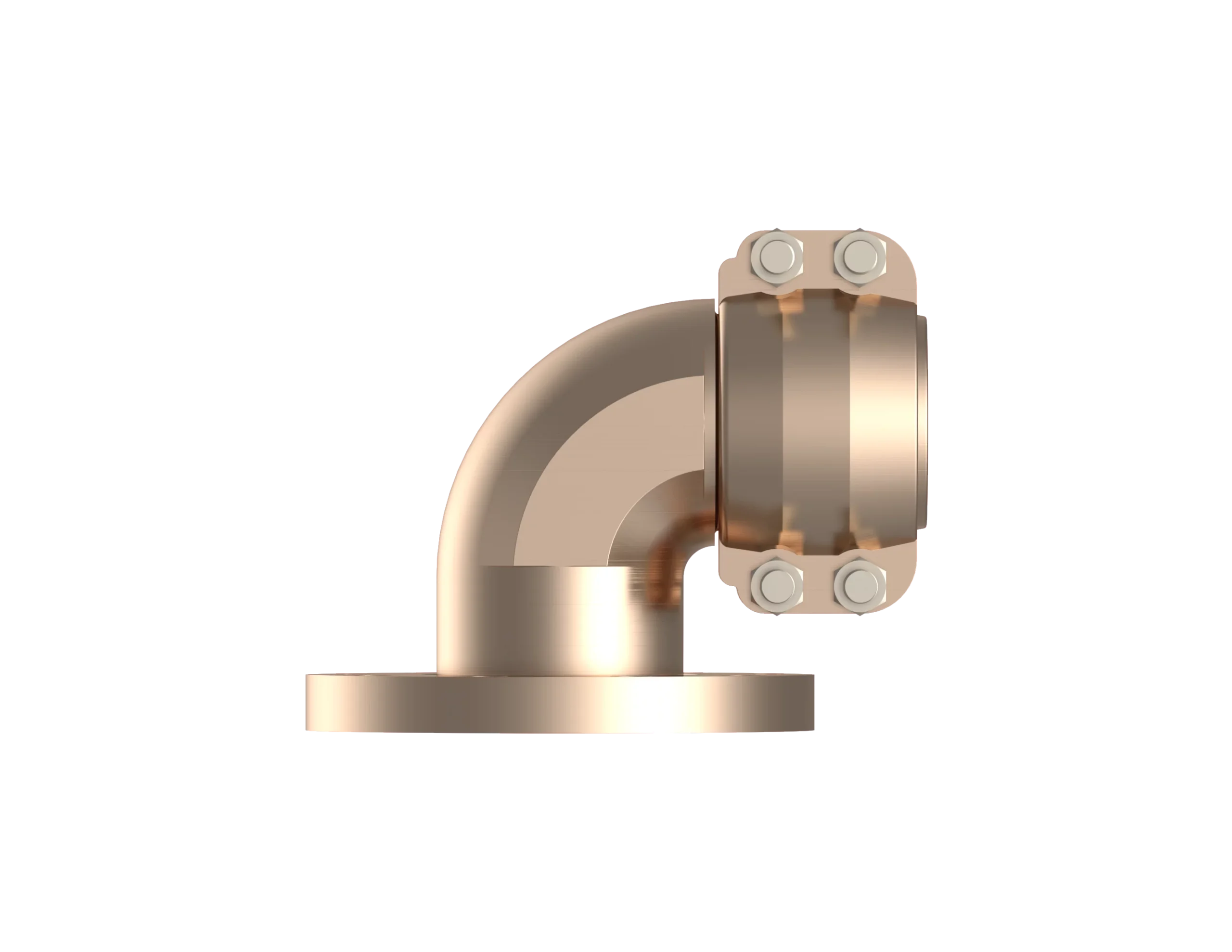

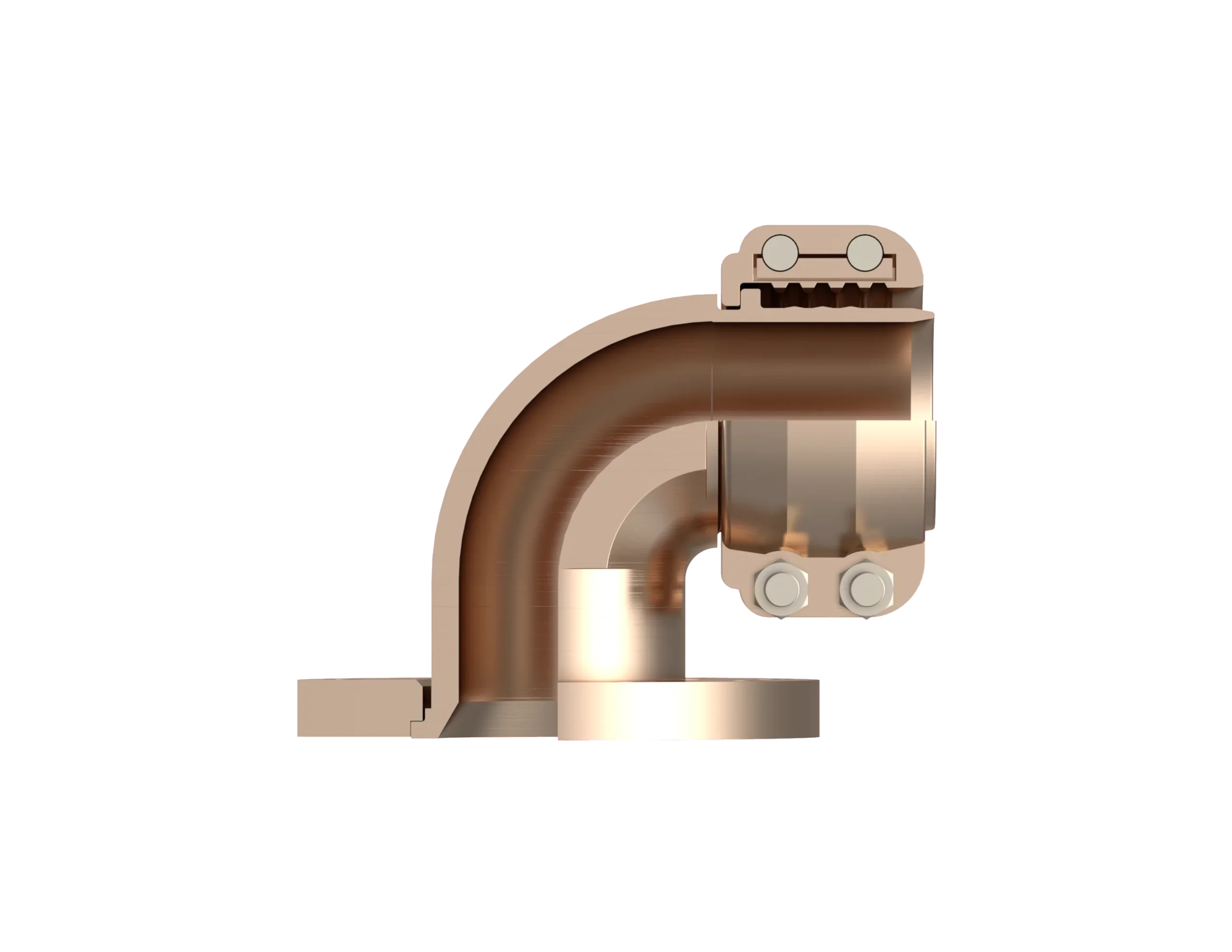

90EF-1546B5-4-64 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class V, 150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class V, 150lb, End Fitting - 90° )

Description:

Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90EF-1546B5-4-64
  • Hydrasearch Drawing Number: D18722
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • M: .75
  • A: 6.78
  • D: 3.91
  • H: 4.62
  • J: 9.00
  • K: 5.28
  • L: 7.50
  • N: .48
  • R: 2.81
  • S: 4.28
  • T: 8.91
  • Est. Wt. (lbs.): 30.00

Specification Table

Part Number90EF-1546B5-4-64
Hydrasearch Drawing NumberD18722
IPS Size4
No. of Bolt Holes8
M.75
A6.78
D3.91
H4.62
J9.00
K5.28
L7.50
N.48
R2.81
S4.28
T8.91
Est. Wt. (lbs.)30.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17966C17968C17969C17970C17971C17972Aluminum. Bronze
Elbow1C18052C18052D18305D18306D18307D18308Aluminum. Bronze
Grip Segment2C17739-1D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17747-2B17748-2B17748-2B17749-2B17749-2Monel
