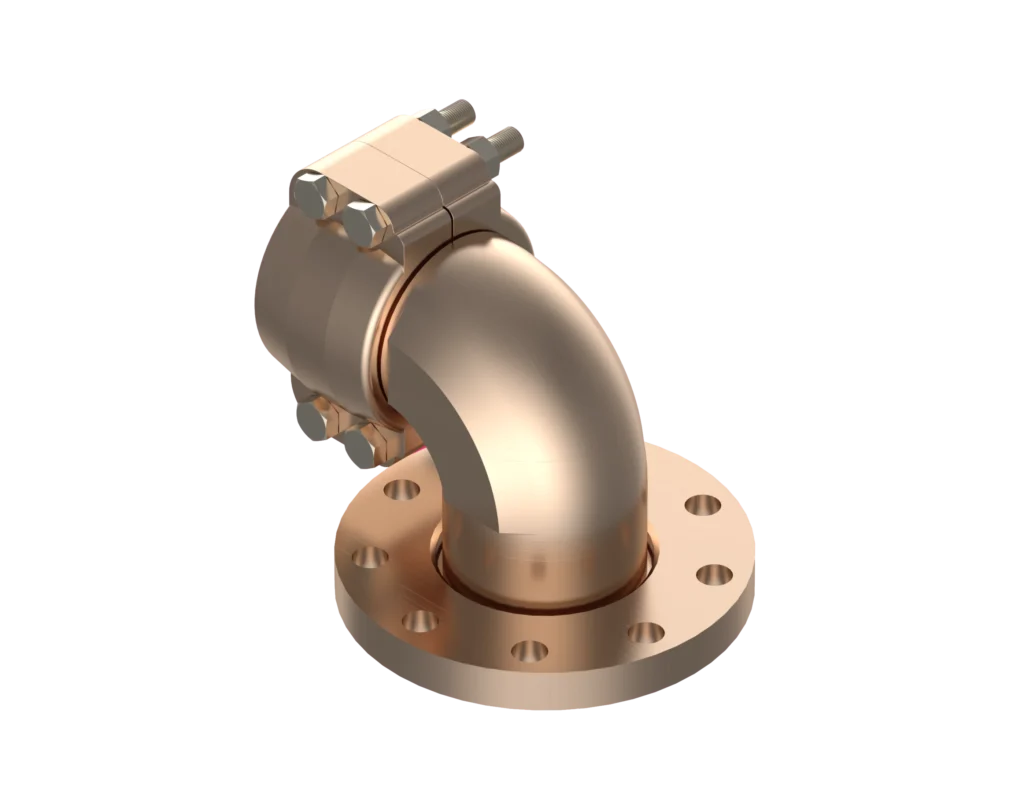

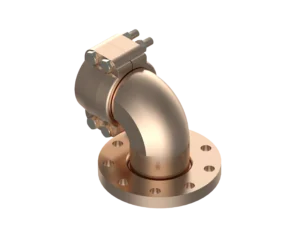

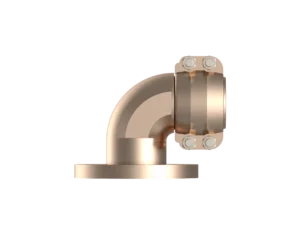

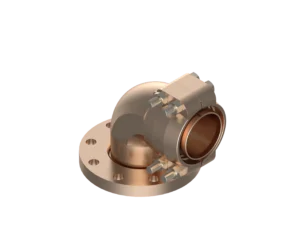

90EF-1546B5-2-40 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class V, 150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class V, 150lb, End Fitting - 90° )

Description:

Use with the following hose: HS4182 & FC132

Specification

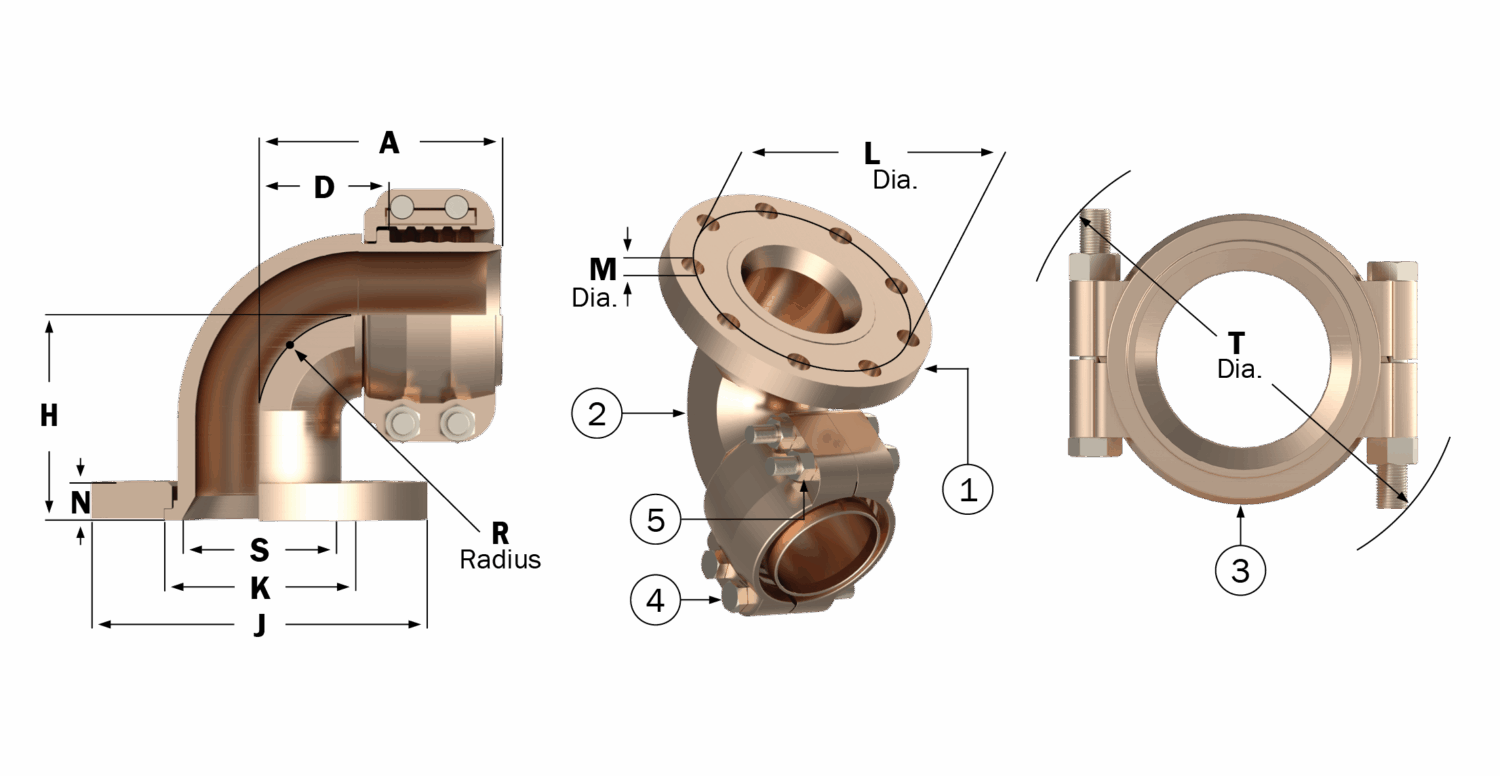

  • Part Number: 90EF-1546B5-2-40
  • Hydrasearch Drawing Number: C18708
  • IPS Size: 2
  • No. of Bolt Holes: 4
  • M: .75
  • A: 5.25
  • D: 2.84
  • H: 3.50
  • J: 6.00
  • K: 3.22
  • L: 4.75
  • N: .42
  • R: 1.88
  • S: 2.24
  • T: 3.70
  • Est. Wt. (lbs.): 15.00

Specification Table

Part Number90EF-1546B5-2-40
Hydrasearch Drawing NumberC18708
IPS Size2
No. of Bolt Holes4
M.75
A5.25
D2.84
H3.50
J6.00
K3.22
L4.75
N.42
R1.88
S2.24
T3.70
Est. Wt. (lbs.)15.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17966C17968C17969C17970C17971C17972Aluminum. Bronze
Elbow1C18052C18052D18305D18306D18307D18308Aluminum. Bronze
Grip Segment2C17739-1D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17747-2B17748-2B17748-2B17749-2B17749-2Monel
