90EF-1546B4-3-48

90EF-1546B4-3-48 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class IV, 150 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class IV, 150lb, End Fitting - 90° )

Description:

Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90EF-1546B4-3-48
  • Hydrasearch Drawing Number: C18715
  • IPS Size: 3

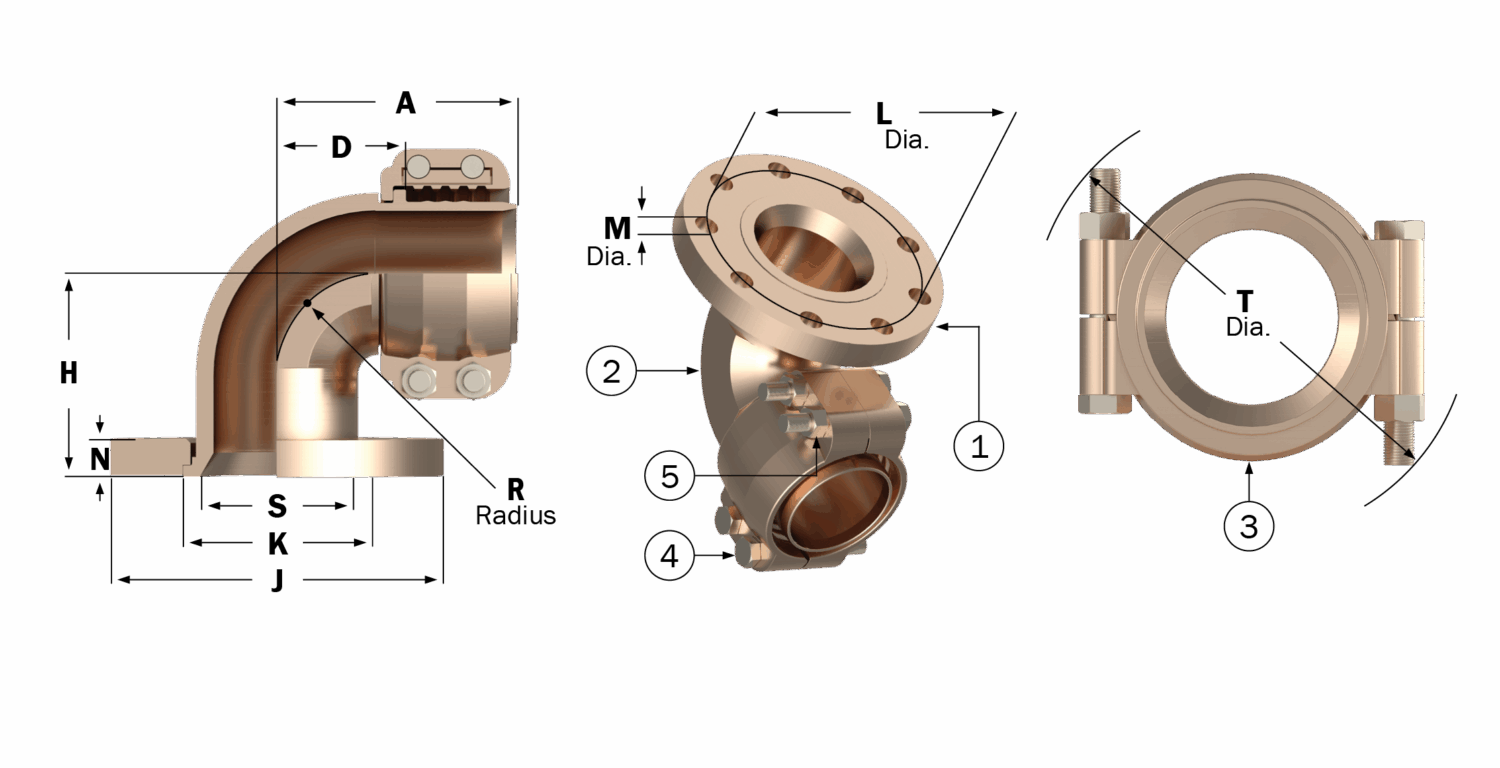

  • No. of Bolt Holes: 8
  • M: .56
  • A: 5.78
  • D: 2.89
  • H: 4.00
  • J: 6.63
  • K: 4.50
  • L: 5.50
  • N: .50
  • R: 2.09
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 20.00

Specification Table

Part Number90EF-1546B4-3-48
Hydrasearch Drawing NumberC18715
IPS Size3
No. of Bolt Holes8
M.56
A5.78
D2.89
H4.00
J6.63
K4.50
L5.50
N.50
R2.09
S3.31
T7.65
Est. Wt. (lbs.)20.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17925C17929C17931C17933C17938C17940Aluminum. Bronze
Elbow1C18052C18052D18305D18306D18307D18308Aluminum. Bronze
Grip Segment2D17739-1D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17747-2B17748-2B17748-2B17749-2B17749-2Monel
