90EF-1546B3-4-64

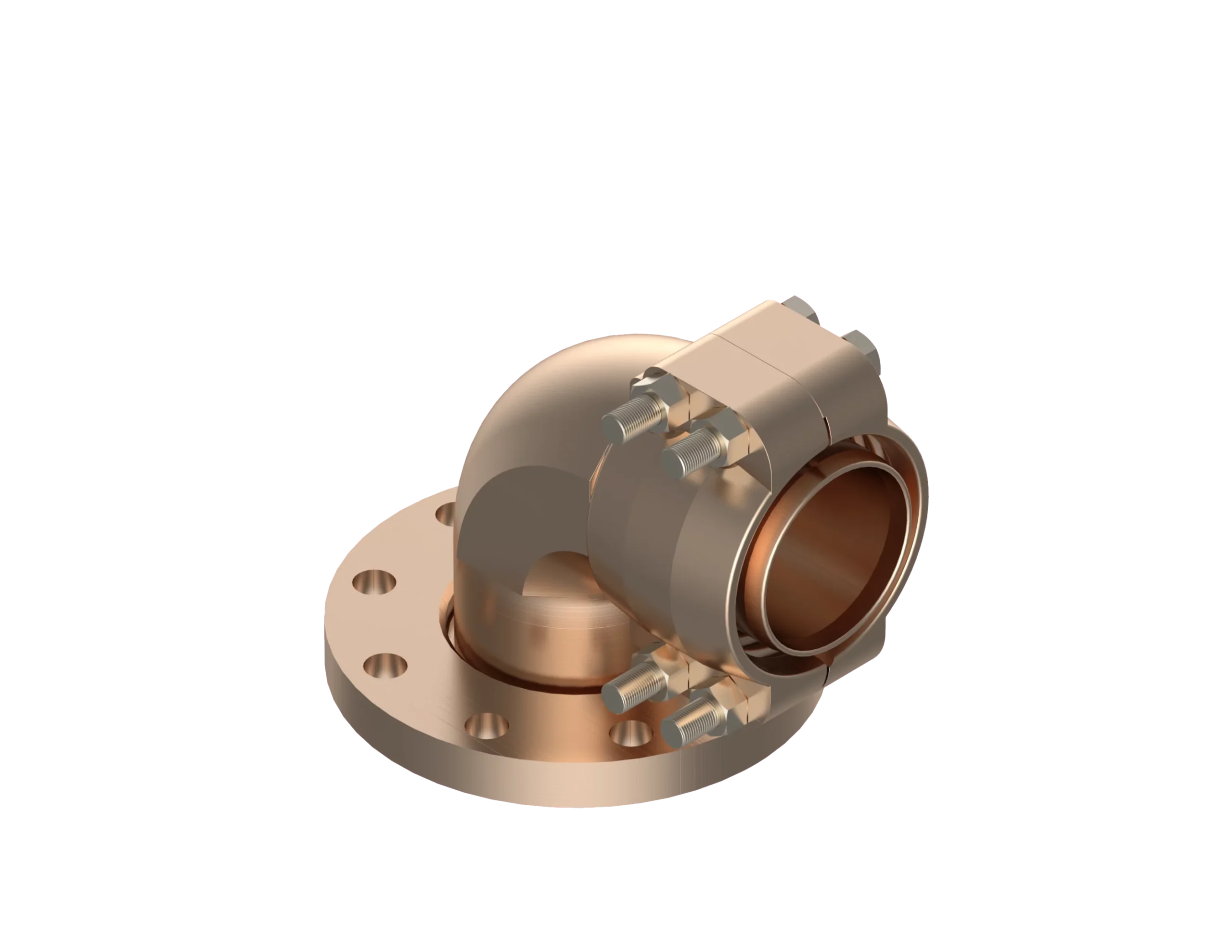

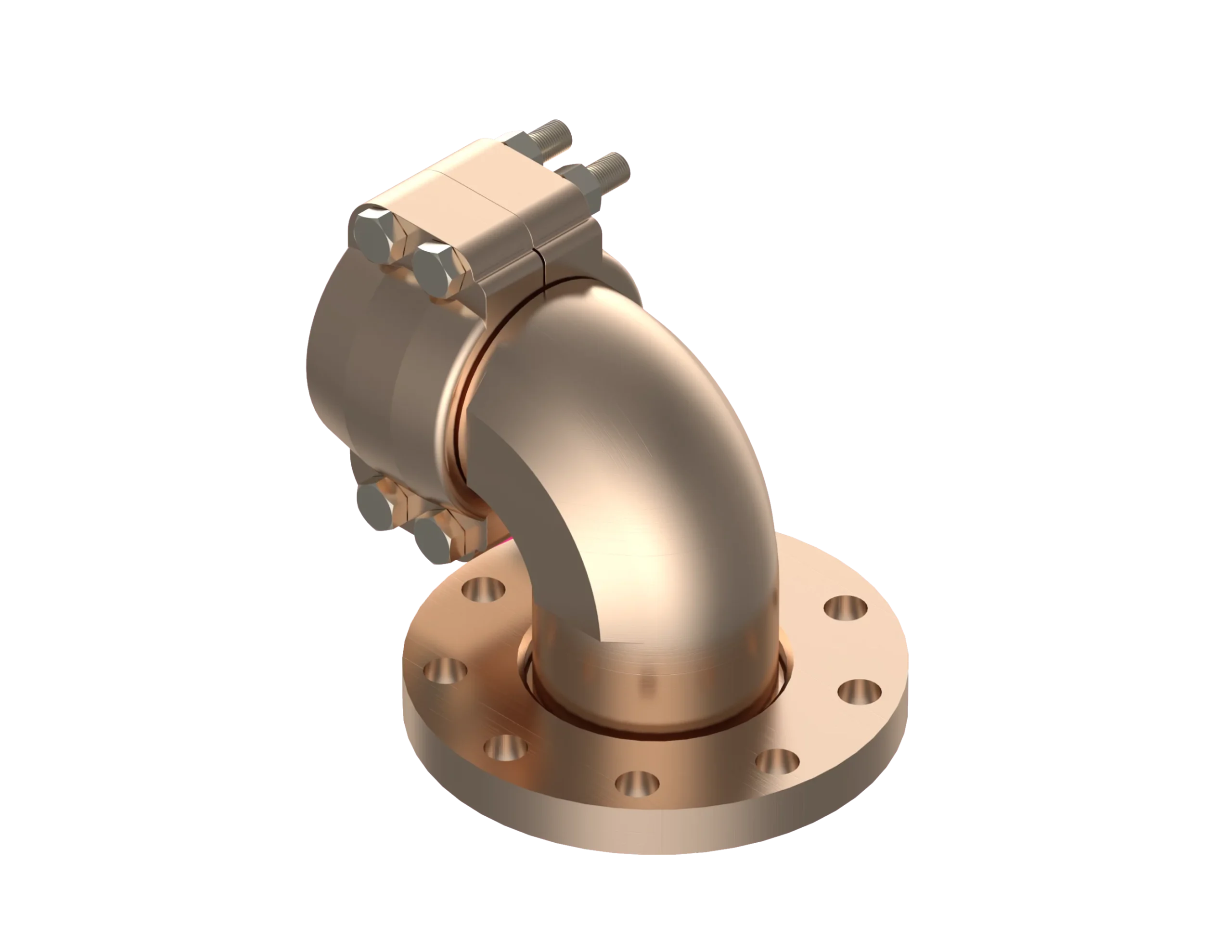

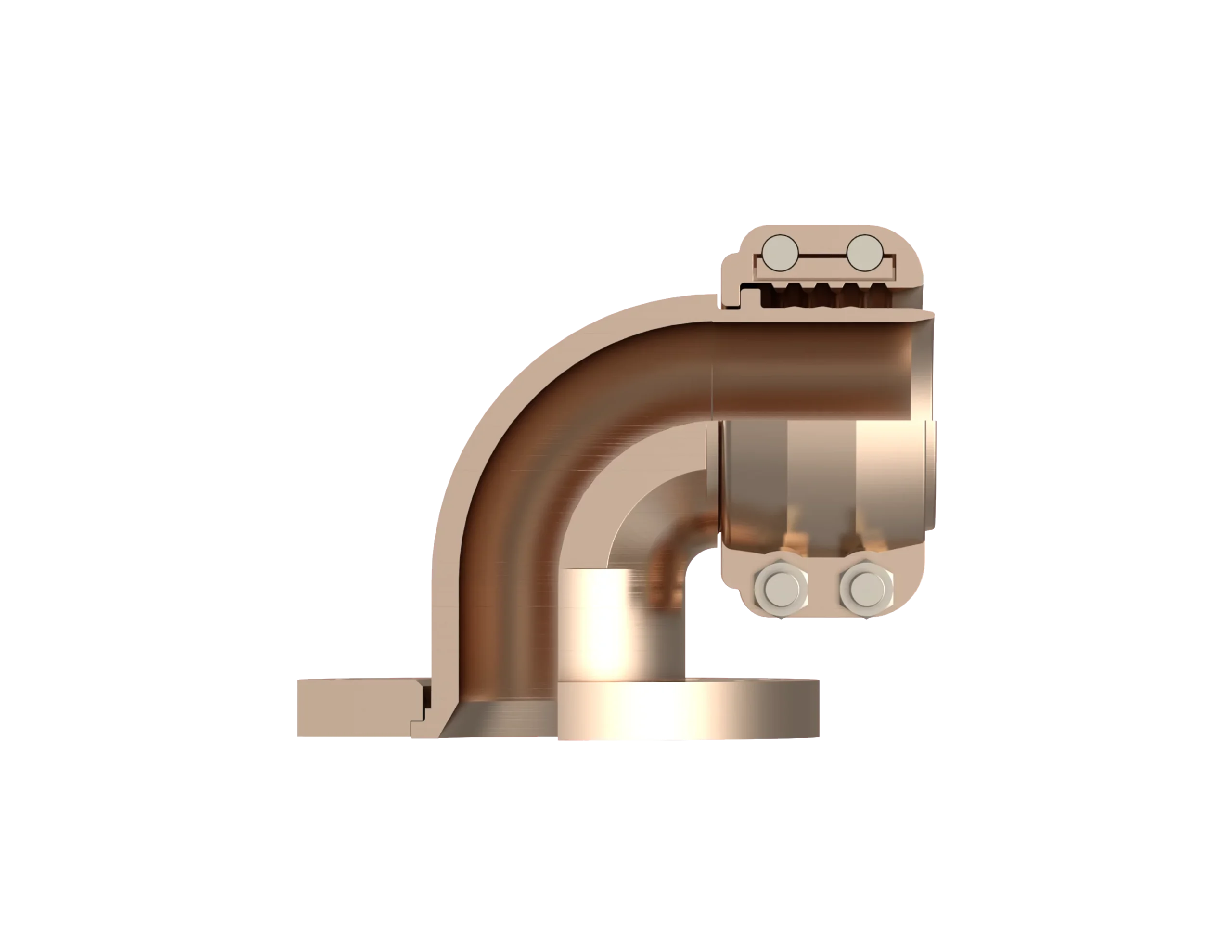

90EF-1546B3-4-64 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class III, 250 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class III, 250lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FJ9838-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: 90EF-1546B3-4-64
  • Hydrasearch Drawing Number: D18724
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • M: .69
  • A: 6.78
  • D: 3.91
  • H: 4.62
  • J: 7.69
  • K: 5.28
  • L: 6.56
  • N: 1.00
  • R: 2.81
  • S: 4.28
  • T: 8.91
  • Est. Wt. (lbs.): 32.00

Specification Table

Part Number90EF-1546B3-4-64
Hydrasearch Drawing NumberD18724
IPS Size4
No. of Bolt Holes8
M.69
A6.78
D3.91
H4.62
J7.69
K5.28
L6.56
N1.00
R2.81
S4.28
T8.91
Est. Wt. (lbs.)32.00
