90EF-1546B3-3-48

90EF-1546B3-3-48 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group X, Class III, 250 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group X, Class III, 250lb, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FJ9838-188,
Use with the following hose: HS4182 & FC132

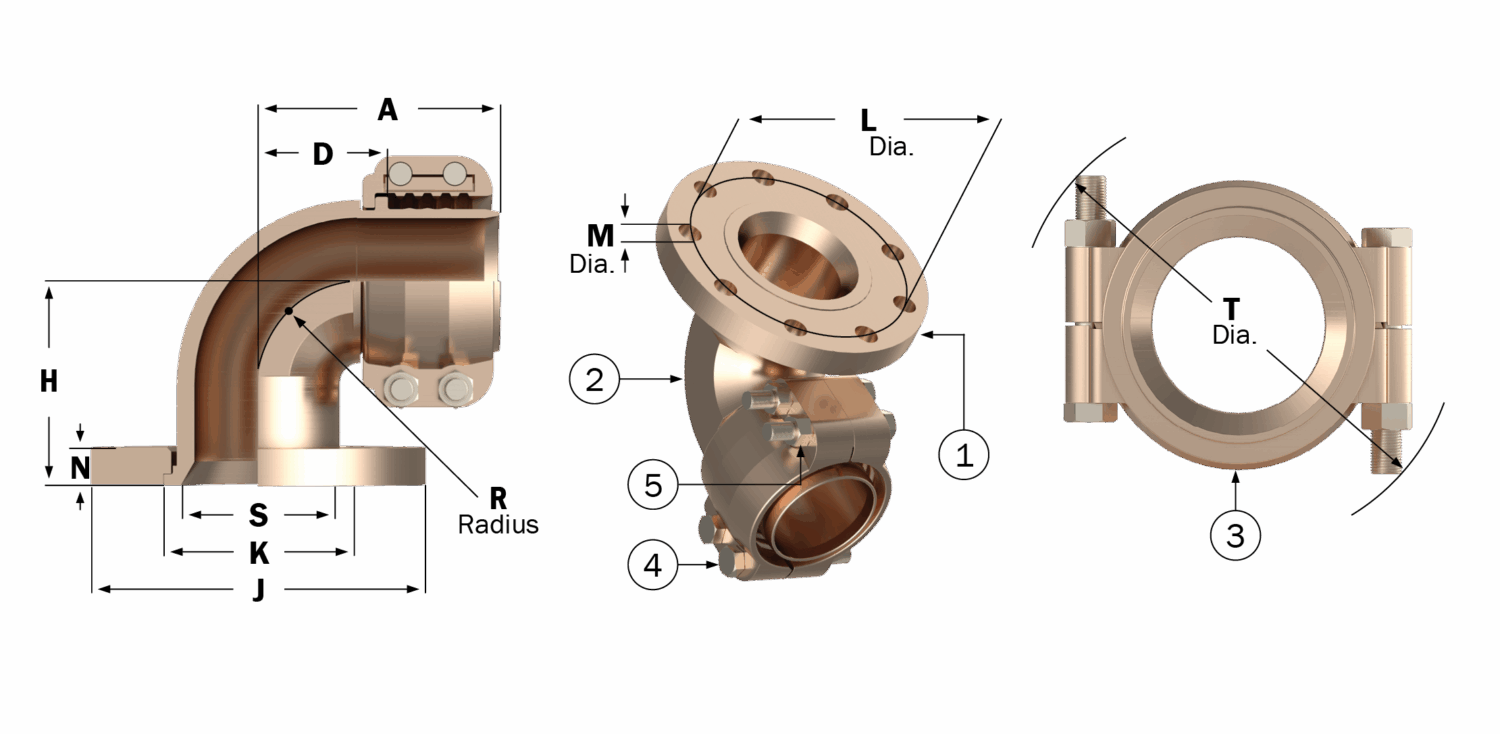

Specification

  • Part Number: 90EF-1546B3-3-48
  • Hydrasearch Drawing Number: C18716
  • IPS Size: 3
  • No. of Bolt Holes: 8
  • M: .69
  • A: 5.78
  • D: 2.89
  • H: 4.00
  • J: 6.63
  • K: 4.50
  • L: 5.50
  • N: .94
  • R: 2.09
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 22.00

Specification Table

Part Number90EF-1546B3-3-48
Hydrasearch Drawing NumberC18716
IPS Size3
No. of Bolt Holes8
M.69
A5.78
D2.89
H4.00
J6.63
K4.50
L5.50
N.94
R2.09
S3.31
T7.65
Est. Wt. (lbs.)22.00
