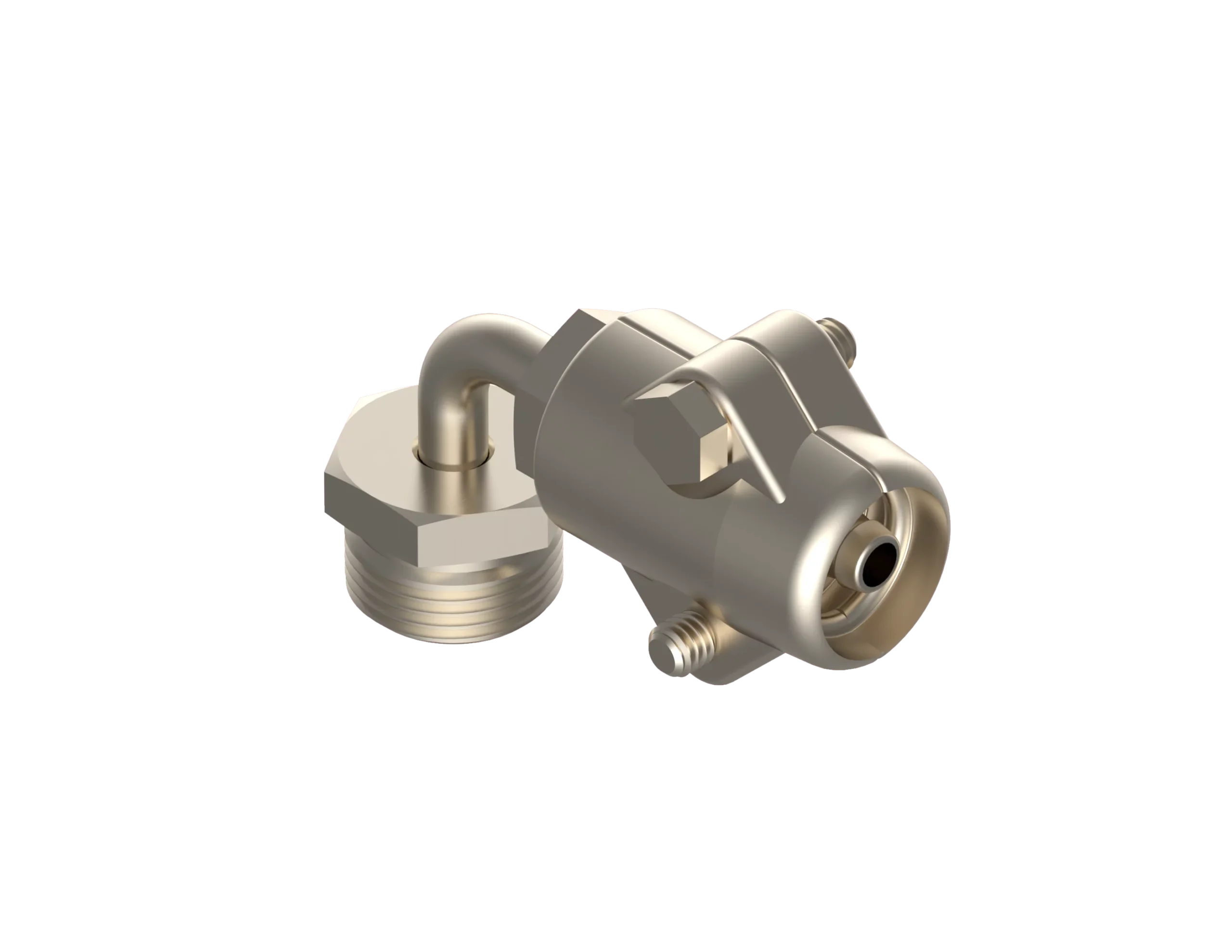

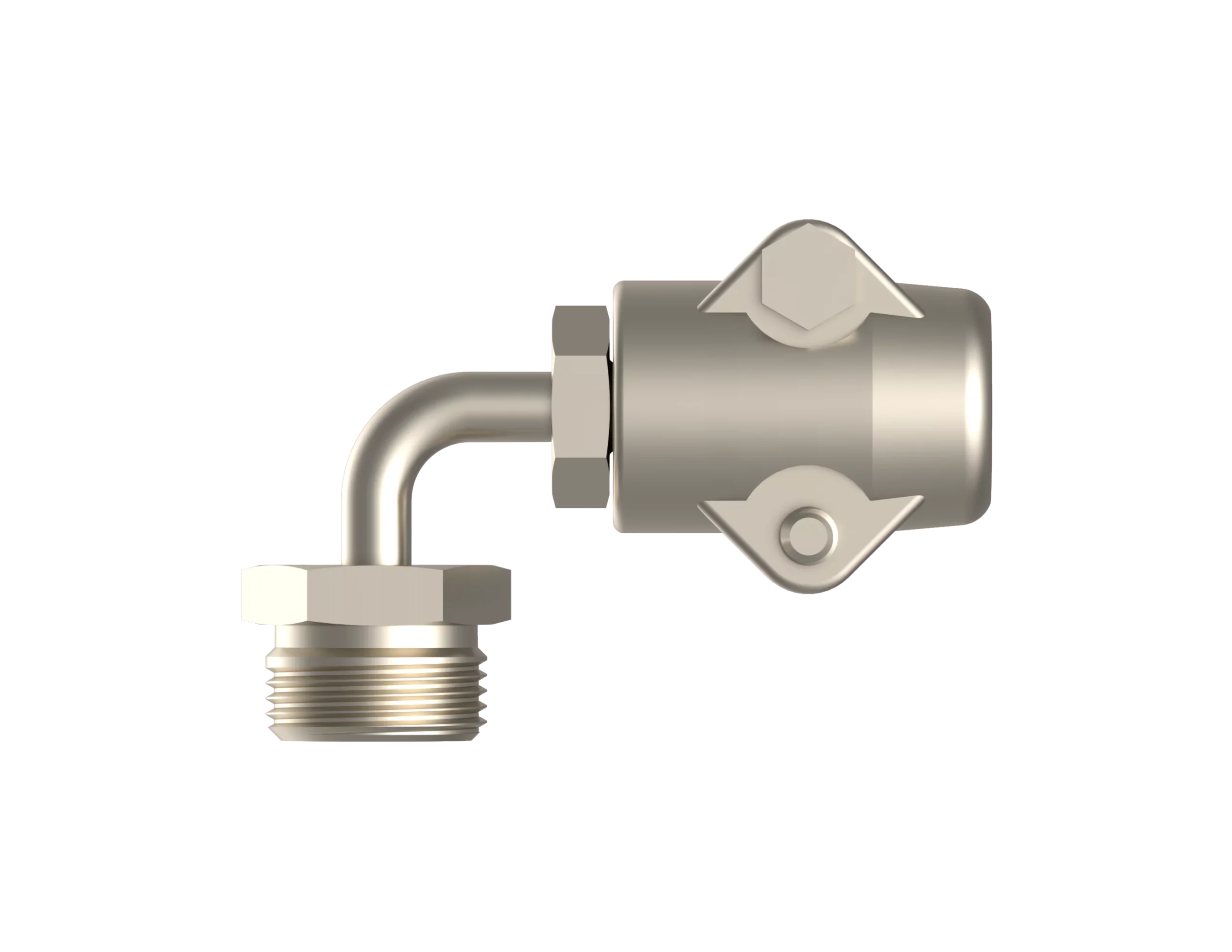

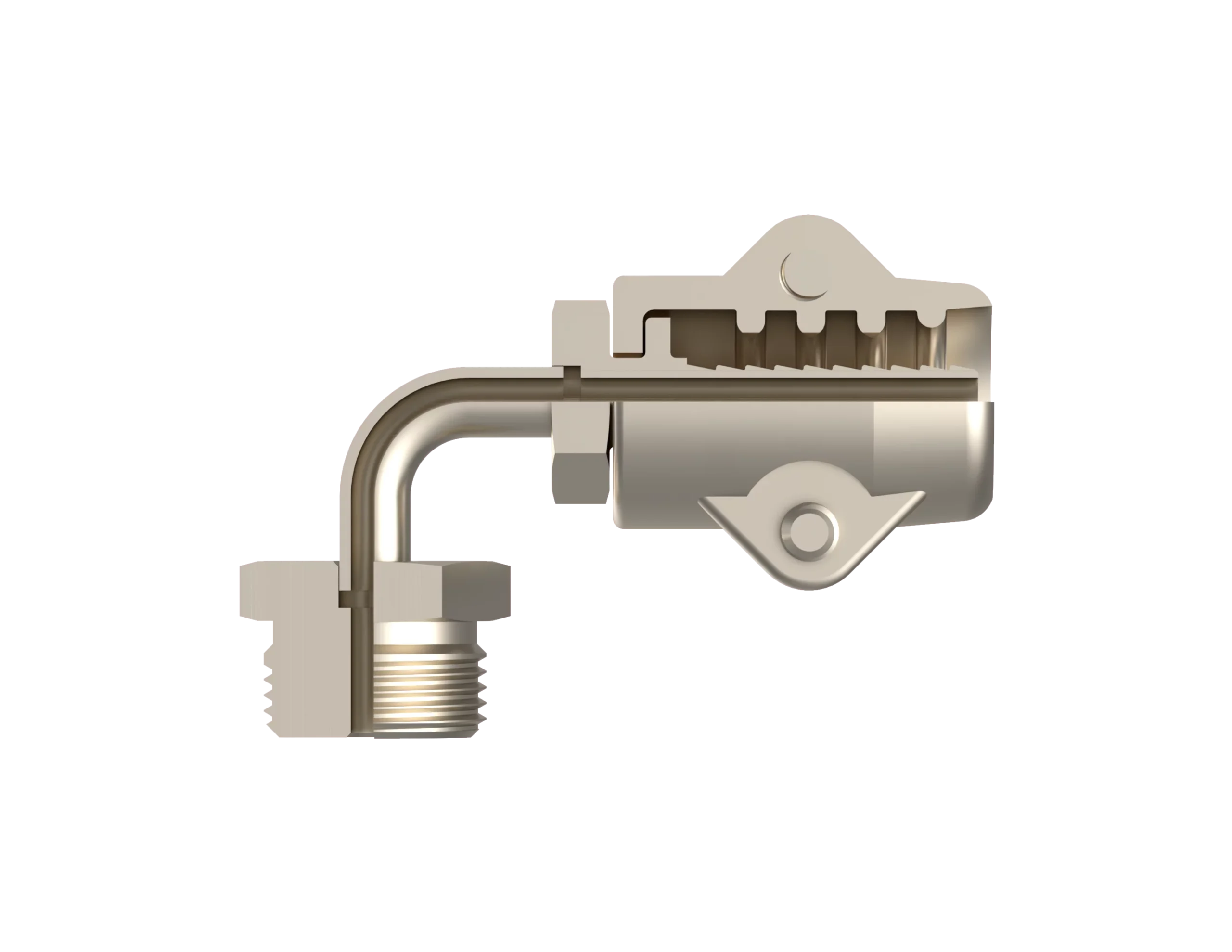

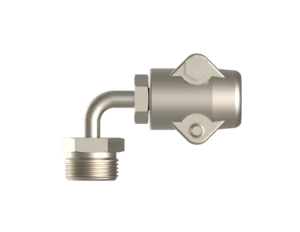

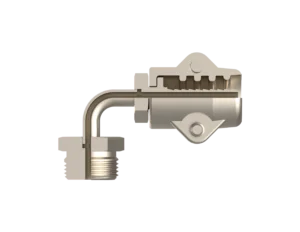

90EF-1489CL-0406 – End Fittings – 90º – Male “O”-Ring Seal to Hose 2 Bolt (MIL-DTL-24787/3, Type CL, Group XI)
90EF-1489CL-0406 – End Fittings – 90º – Male “O”-Ring Seal to Hose 2 Bolt (MIL-DTL-24787/3, Type CL, Group XI)iso-1-160std-140q-cut-145iso-2-150
90EF-1489CL-0406

90EF-1489CL-0406 – End Fittings – 90º – Male “O”-Ring Seal to Hose 2 Bolt (MIL-DTL-24787/3, Type CL, Group XI)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group XI, End Fitting - 90° )

Description:

Equal to Aeroquip P/N FC7182-4,
Use with the following hose: HS133

Specification

  • Part Number: 90EF-1489CL-0406
  • Hydrasearch Drawing Number: C18896
  • IPS Size: 1/4
  • Thread CL-2B: 1-3/16”-12
  • A: 3.20
  • C: 1.25
  • D: 1.48
  • E: .26
  • H: 1.69
  • M: .62
  • R: .50
  • V: 2.02
  • W: .94
  • X: 2.00
  • Est. Wt. (lbs.): 1.50

Specification Table

Part Number90EF-1489CL-0406
Hydrasearch Drawing NumberC18896
IPS Size1/4
Thread CL-2B1-3/16”-12
A3.20
C1.25
D1.48
E.26
H1.69
M.62
R.50
V2.02
W.94
X2.00
Est. Wt. (lbs.)1.50

Components Table

DescriptionReq’d per Ass’y0406040806080812Mat’l
Elbow1C19443C19444C19445C19446Monel
Segment2D18758-1C18640-1C18640-1D18743-1Monel
Bolt2B18759B18645B18645B18745Monel
