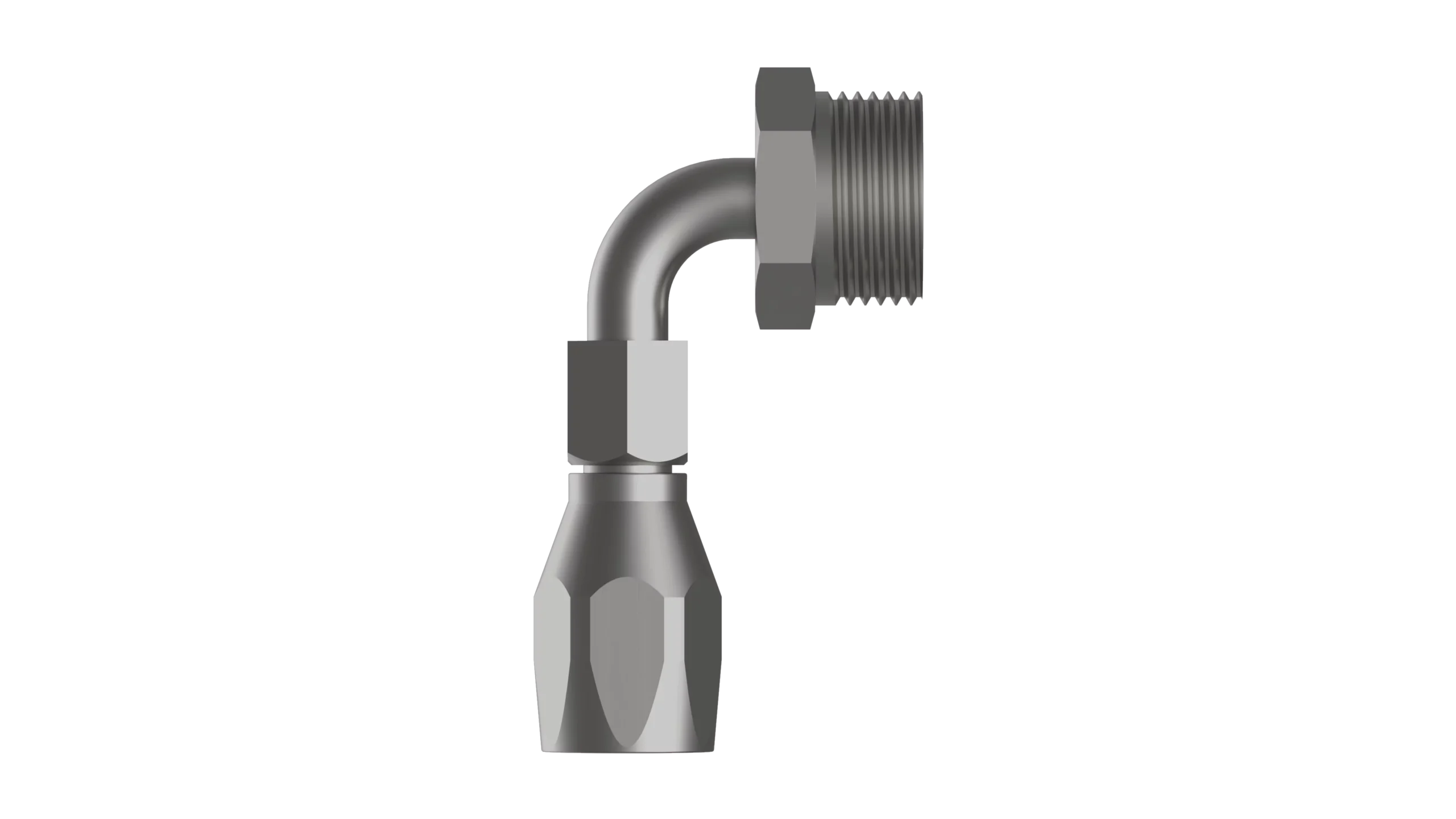

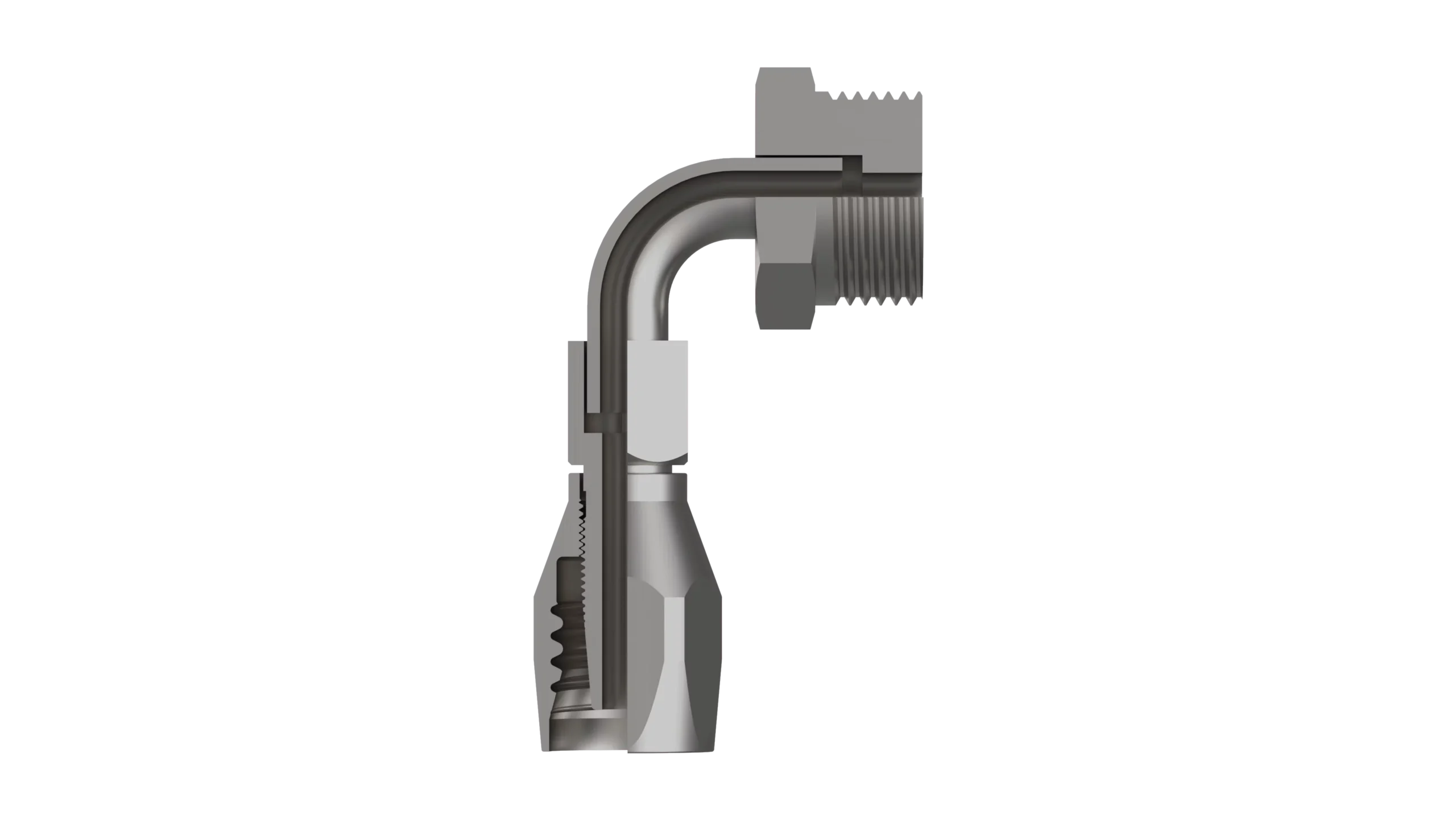

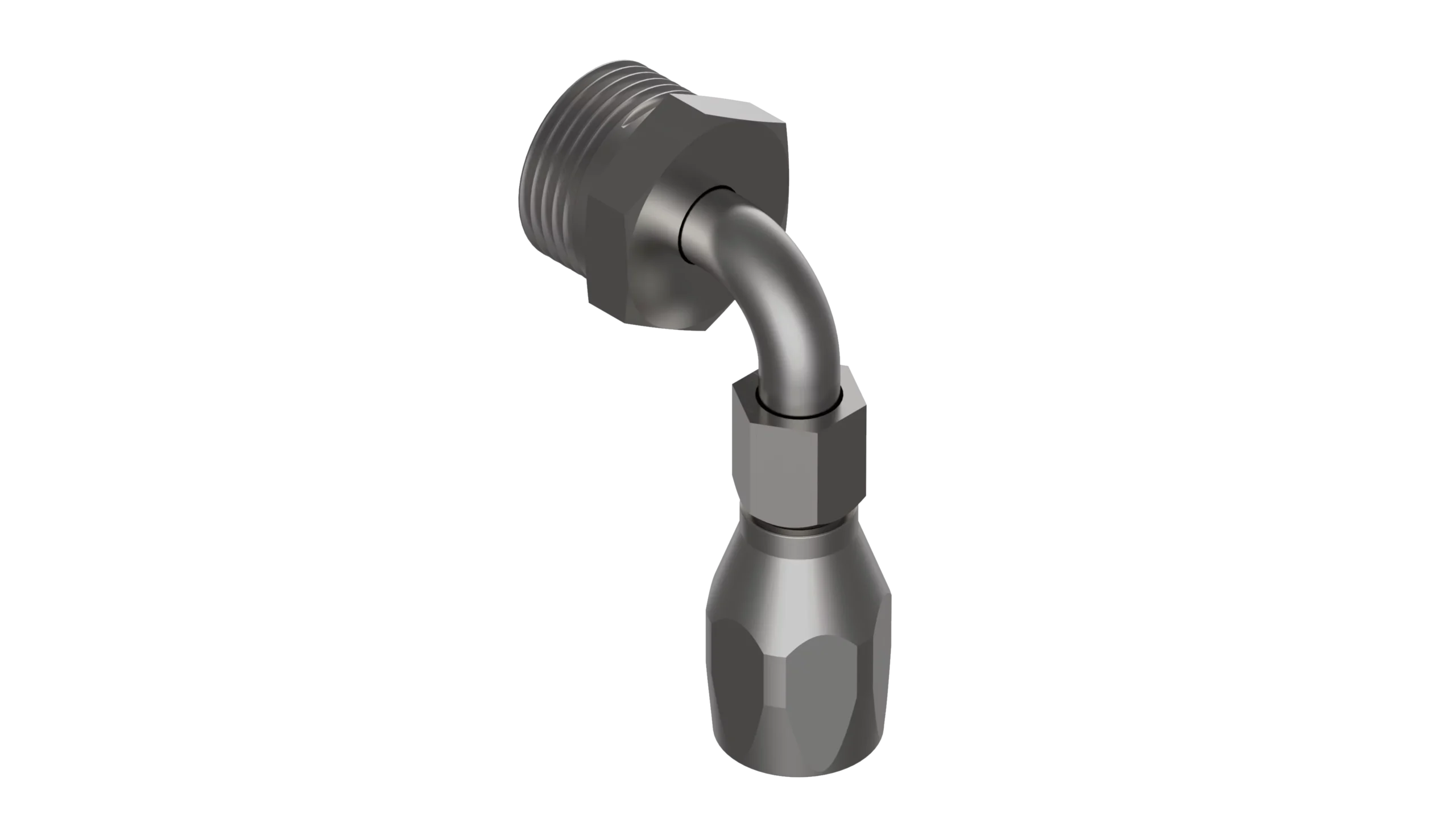

90EF-1488CL-0812 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group VIII)
90EF-1488CL-0812 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group VIII)iso-1-70std-65q-cut-68iso-2-66
90EF-1488CL-0812

90EF-1488CL-0812 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group VIII)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group VIII, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 4-191301,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-1488CL-0812
  • Hydrasearch Drawing Number: C19314
  • IPS Size: 1/2
  • T Thread CL-3A: 1-3/4”-12
  • A: 4.07
  • C: 1.81
  • D: 2.59
  • E: .50
  • G: 1.25
  • H: 2.31
  • M: .32
  • N: .74
  • R: 1.25
  • W: 1.00
  • Est. Wt. (lbs.): 1.30

Specification Table

Part Number90EF-1488CL-0812
Hydrasearch Drawing NumberC19314
IPS Size1/2
T Thread CL-3A1-3/4”-12
A4.07
C1.81
D2.59
E.50
G1.25
H2.31
M.32
N.74
R1.25
W1.00
Est. Wt. (lbs.)1.30

Components Table

DescriptionReq’d per Ass’y0206040806100812Material
Elbow1C19027C19028C19029C19030Monel
Socket1C18986-2C18648-2C18987-2C18988-2Monel
