90EF-1488CL-0408

90EF-1488CL-0408 – End Fittings – 90º – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type CL, Group VIII)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/3, Type CL, Group VIII, End Fitting - 90° )

Description:

Equal to Aeroquip P/N 4-191301,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-1488CL-0408
  • Hydrasearch Drawing Number: C19312
  • IPS Size: 1/4
  • T Thread CL-3A: 1-3/16”-12
  • A: 2.92
  • C: 1.25
  • D: 1.89
  • E: .34
  • G: .94
  • H: 1.68
  • M: .62
  • N: .58
  • R: .75
  • W: .75
  • Est. Wt. (lbs.): .60

Specification Table

Part Number90EF-1488CL-0408
Hydrasearch Drawing NumberC19312
IPS Size1/4
T Thread CL-3A1-3/16”-12
A2.92
C1.25
D1.89
E.34
G.94
H1.68
M.62
N.58
R.75
W.75
Est. Wt. (lbs.).60

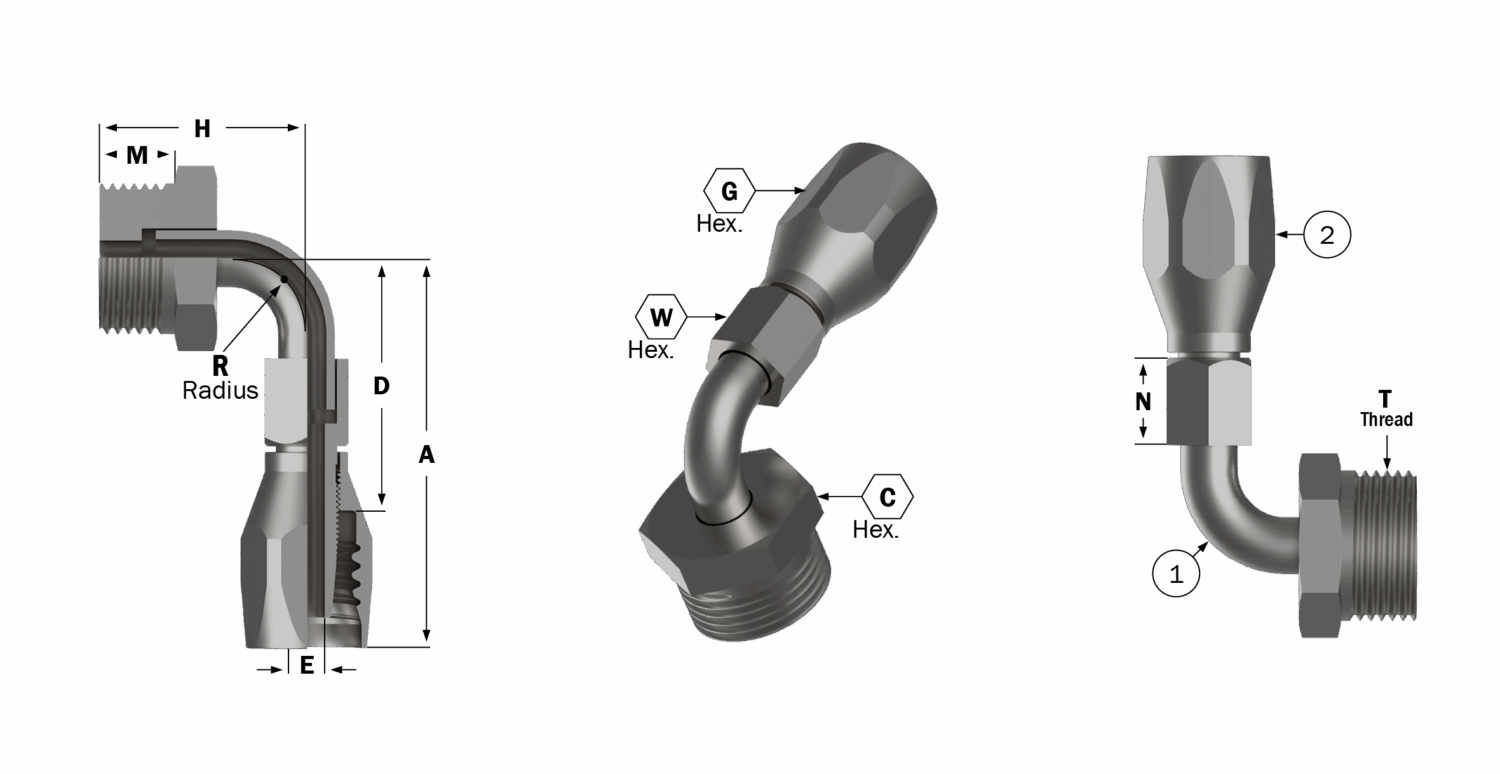

Specification Image

90EF-1488CL (SMALL)

Components Table

DescriptionReq’d per Ass’y0206040806100812Material
Elbow1C19027C19028C19029C19030Monel
Socket1C18986-2C18648-2C18987-2C18988-2Monel
