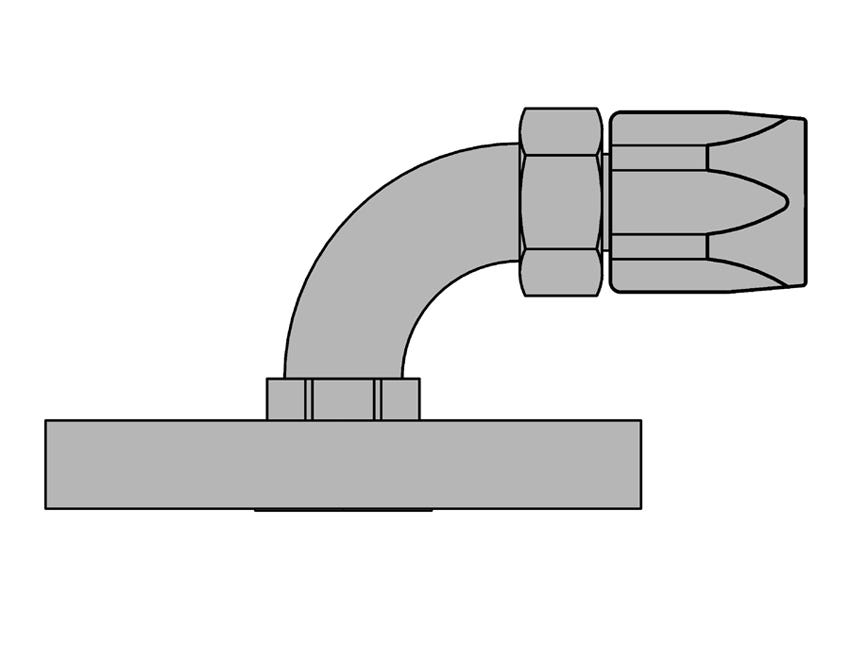

90EF-1488B4-1624 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class V, 150 Lb. Flange per A.N.S.I. B16.5)
90EF-1488B4-1624 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class V, 150 Lb. Flange per A.N.S.I. B16.5)
90EF-1488B4-1624

90EF-1488B4-1624 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class V, 150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group VIII, Class V, 150 Lb )

Description:

Use with the following hose: Synthetic yarn and wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Elbow Assembly Material – Monel/Cuni C19098
  • Component 2: Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
  • Component 3: Required per Assembly – 1 Description – Flange C18799 Material – Aluminum Bronze in accordance with ASTM B505 C95400
  • H: '3.06
  • J: '4.25
  • L: '3.12
  • M: '0.62
  • N: '0.42
  • R: '2.00
  • A: '4.65
  • C: '1.940
  • D: '3.19
  • G: '2.12
  • Est. Wt. (lbs.): 3.4
  • Hydrasearch Drawing Number: C19574
  • IPS Size: '1
  • Mil Spec: MIL-DTL-24787/1
  • No. of Bolt Holes: 4

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Elbow Assembly Material – Monel/Cuni C19098
Component 2Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
Component 3Required per Assembly – 1 Description – Flange C18799 Material – Aluminum Bronze in accordance with ASTM B505 C95400
H'3.06
J'4.25
L'3.12
M'0.62
N'0.42
R'2.00
A'4.65
C'1.940
D'3.19
G'2.12
Est. Wt. (lbs.)3.4
Hydrasearch Drawing NumberC19574
IPS Size'1
Mil SpecMIL-DTL-24787/1
No. of Bolt Holes4
