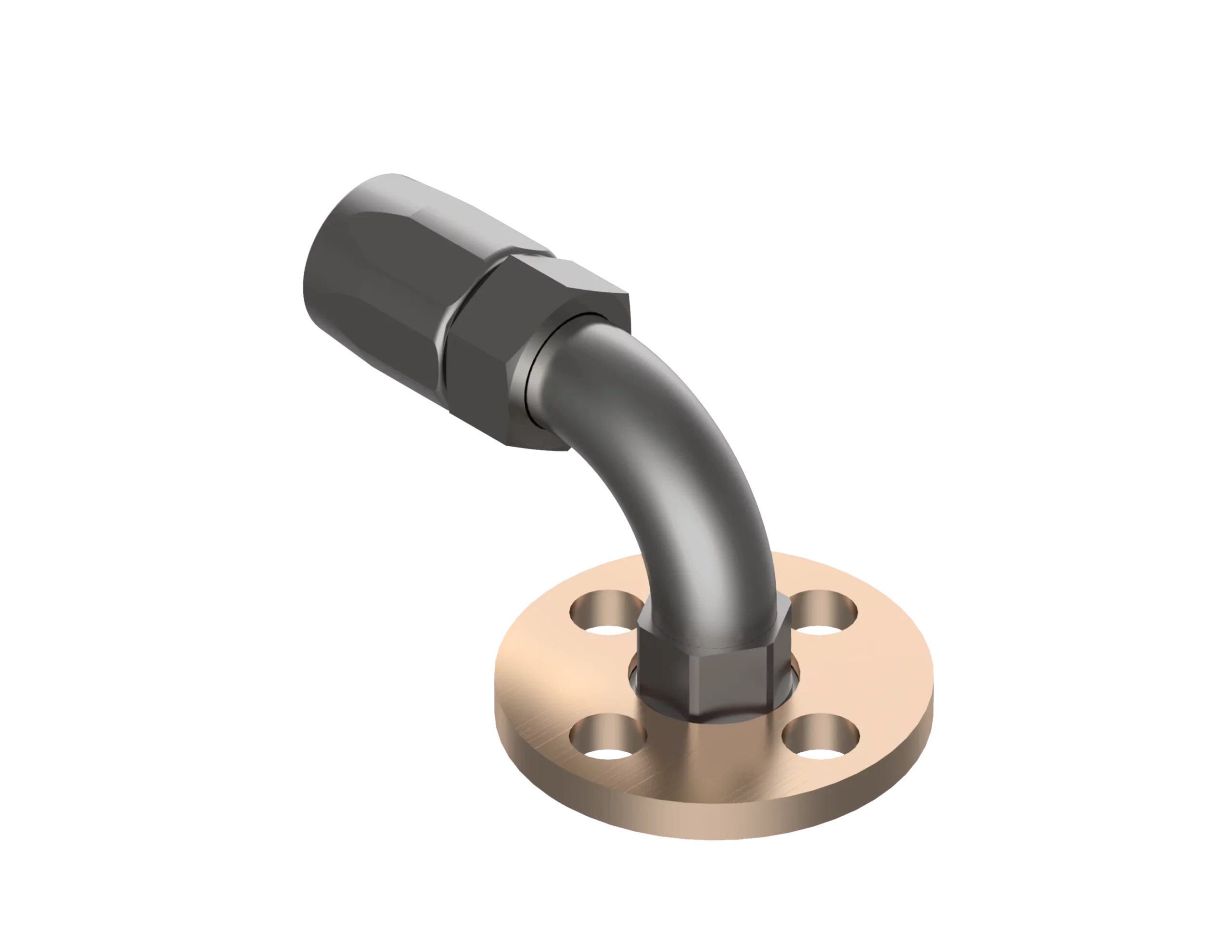

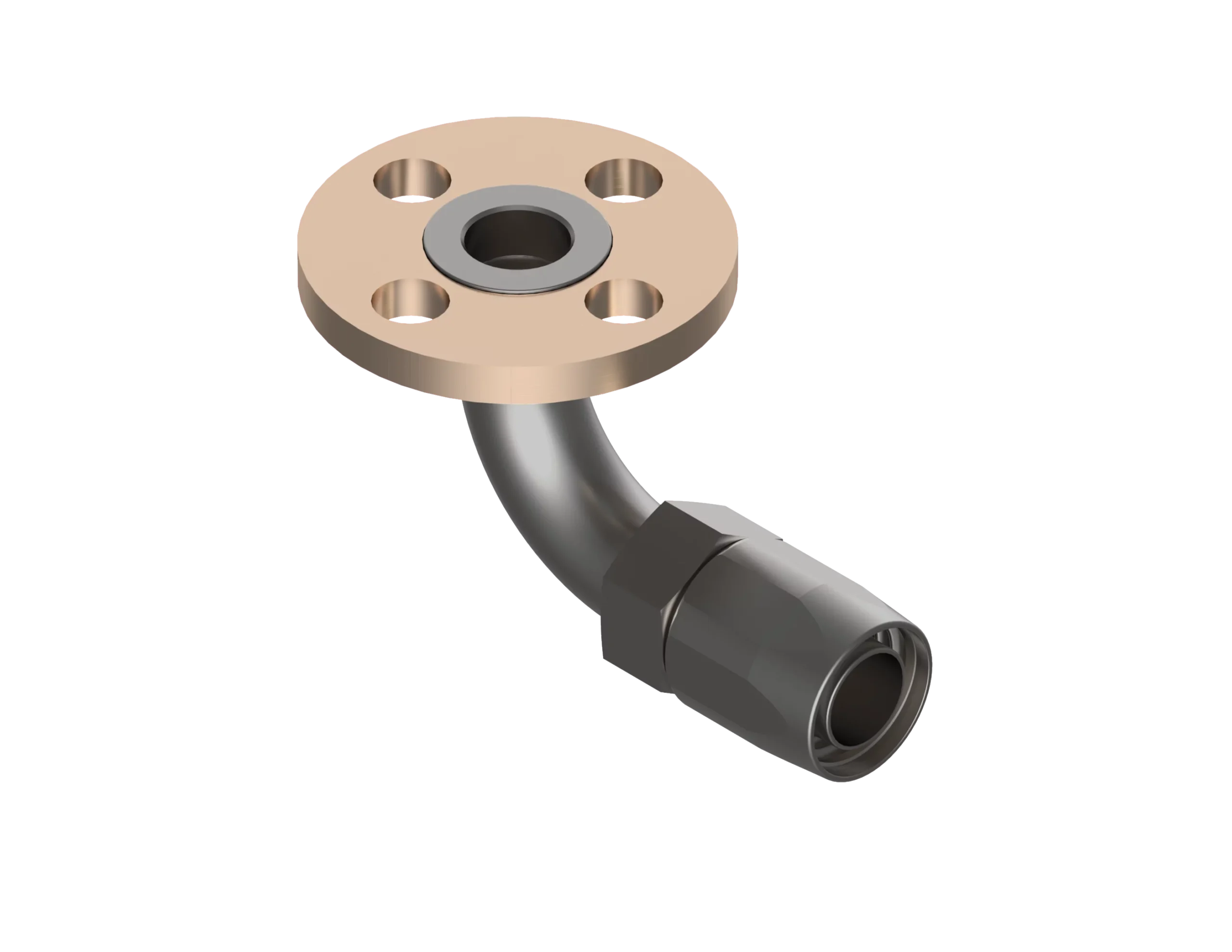

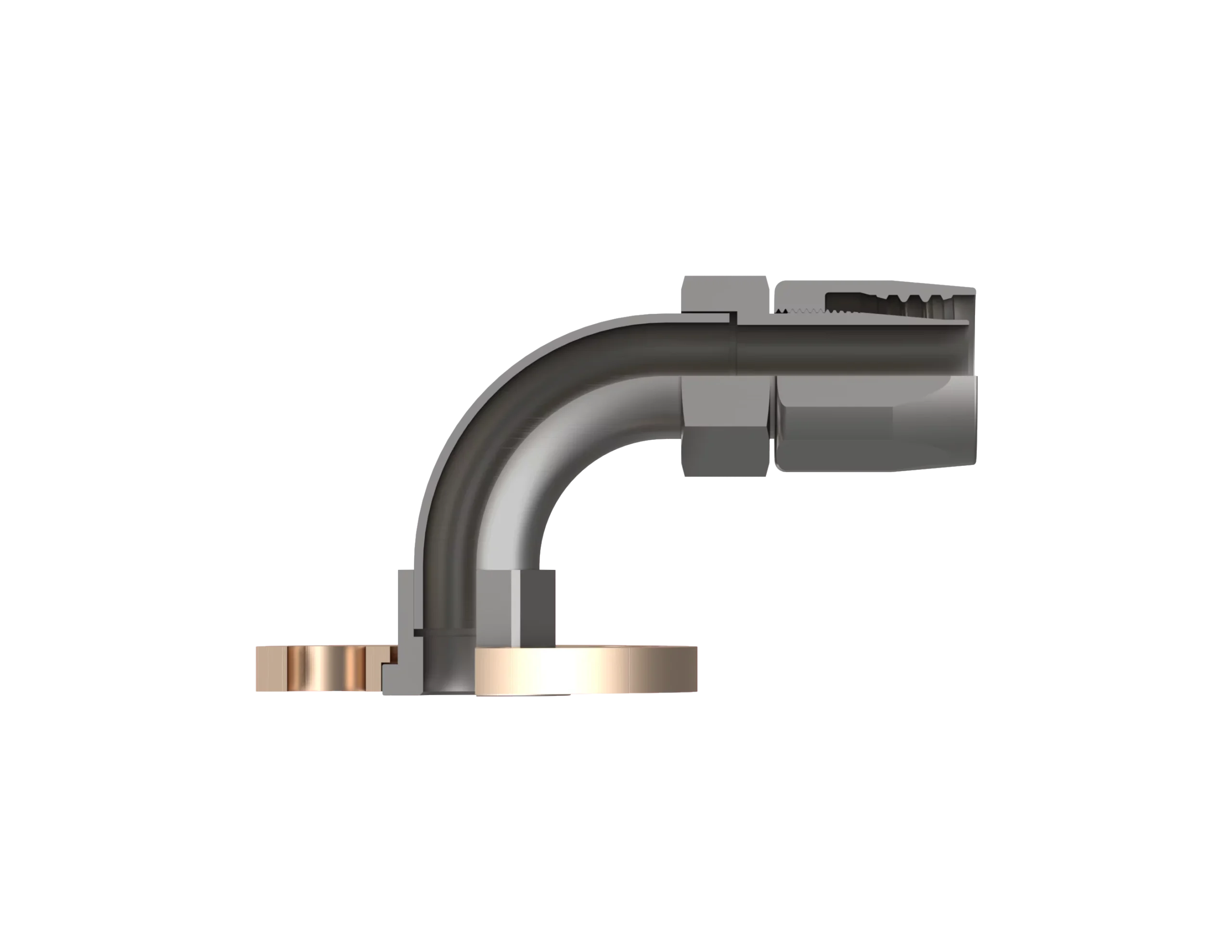

90EF-1488B1-2032 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)
90EF-1488B1-2032 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)iso-1-77std-72q-cut-75iso-2-73
90EF-1488B1-2032

90EF-1488B1-2032 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type FL, Group VIII, Class I, 400lb, End Fitting - 90° )

Description:

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: 90EF-1488B1-2032
  • Hydrasearch Drawing Number: C19607
  • IPS Size: 1.25
  • No. of Bolt Holes: 5
  • A: 5.68
  • C: 2.44
  • D: 3.84
  • G: 2.25
  • H: 3.74
  • J: 5.38
  • L: 4.06
  • M: .69
  • N: .81
  • R: 2.50
  • Est. Wt. (lbs.): 4.20

Specification Table

Part Number90EF-1488B1-2032
Hydrasearch Drawing NumberC19607
IPS Size1.25
No. of Bolt Holes5
A5.68
C2.44
D3.84
G2.25
H3.74
J5.38
L4.06
M.69
N.81
R2.50
Est. Wt. (lbs.)4.20

Components Table

DescriptionReq’d per Ass’y08161216161612201624203224323232Material
Elbow1C19094C19095C19096C19097C19098C19099C19100C19101Monel/Cop- per-Nickel
Socket1C18667-2C18667-2C18667-2C18703-2C18990-2C18662C18662C18662Monel
Flange1C19514C19515C19516C19517C19518C19519C19520C19521Aluminum. Bronze
