90EF-12-150F-B16.5

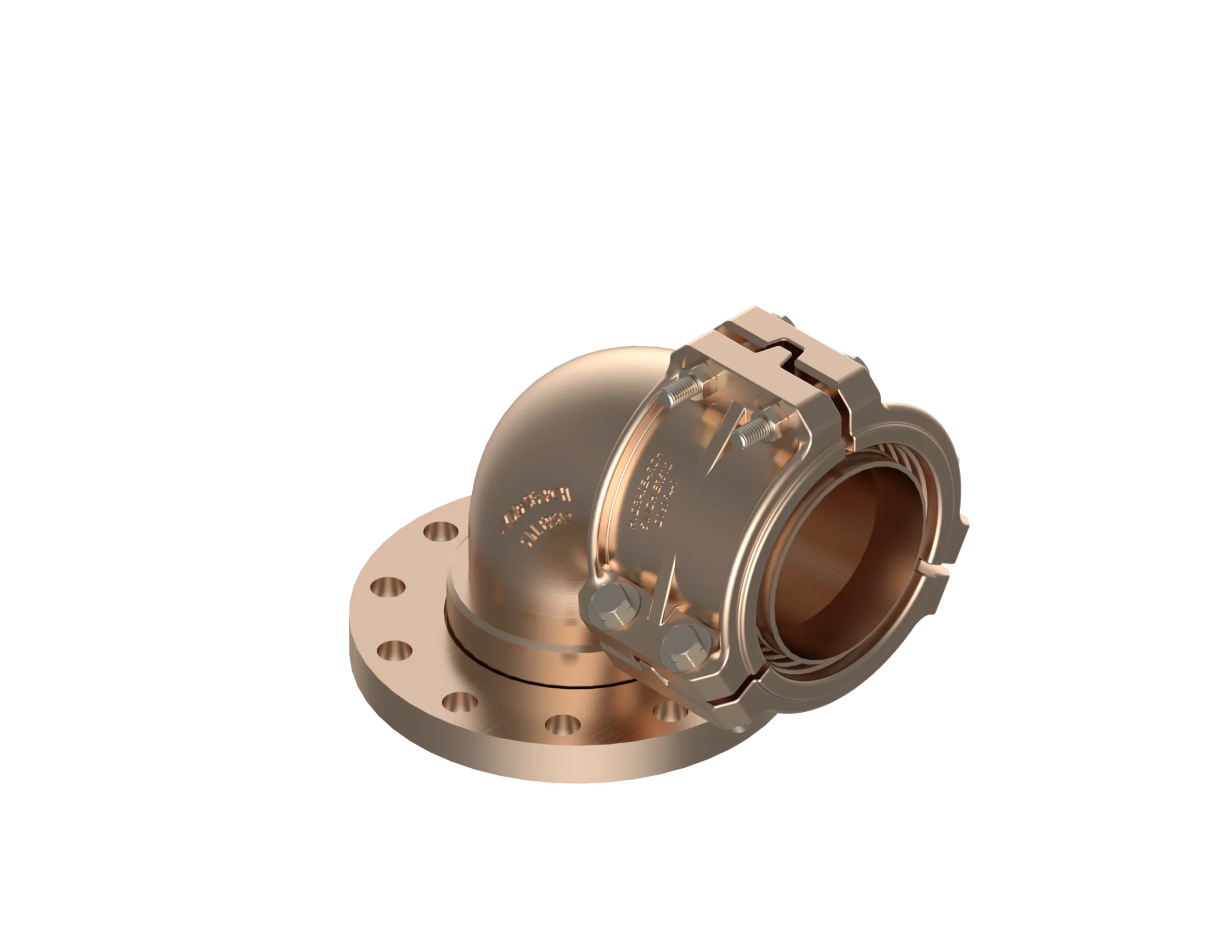

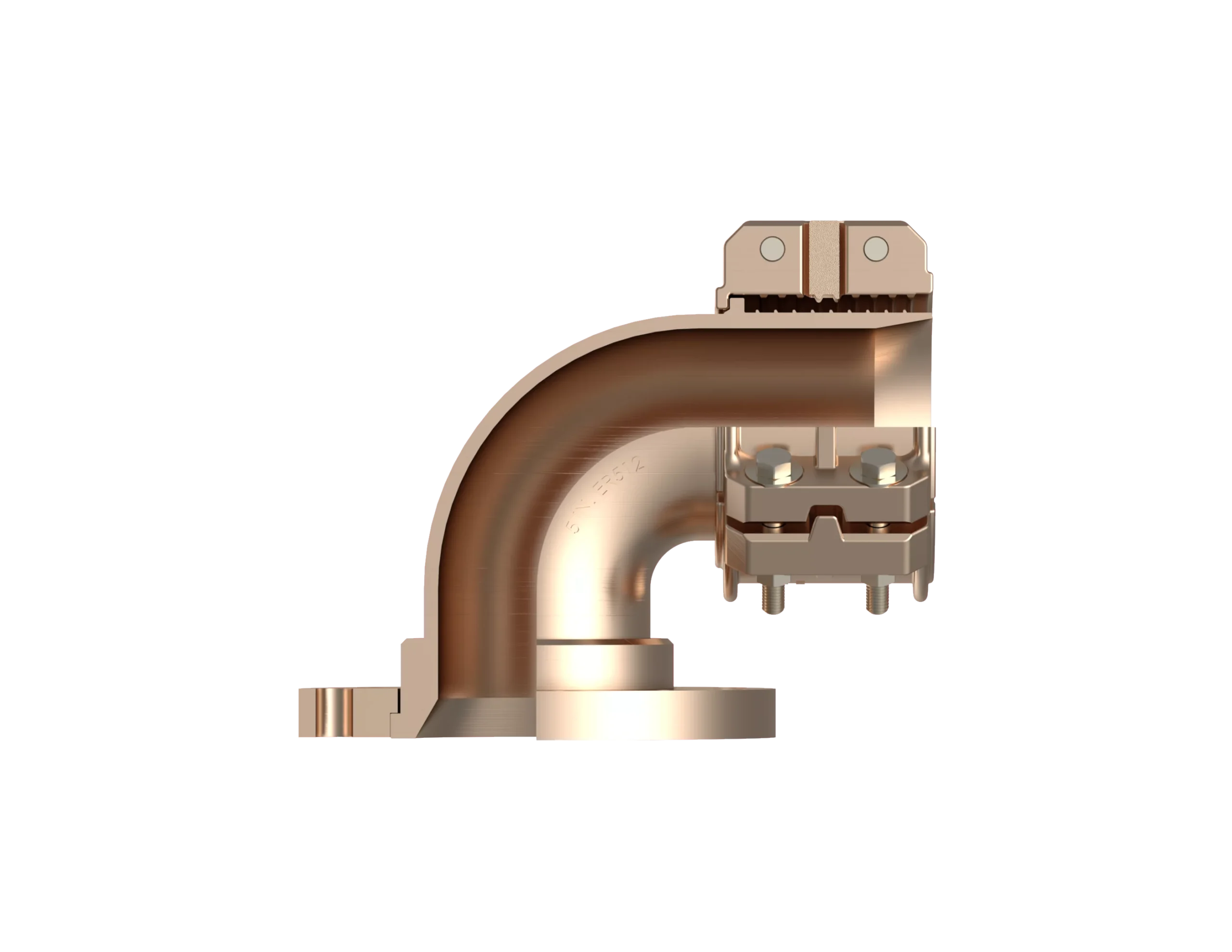

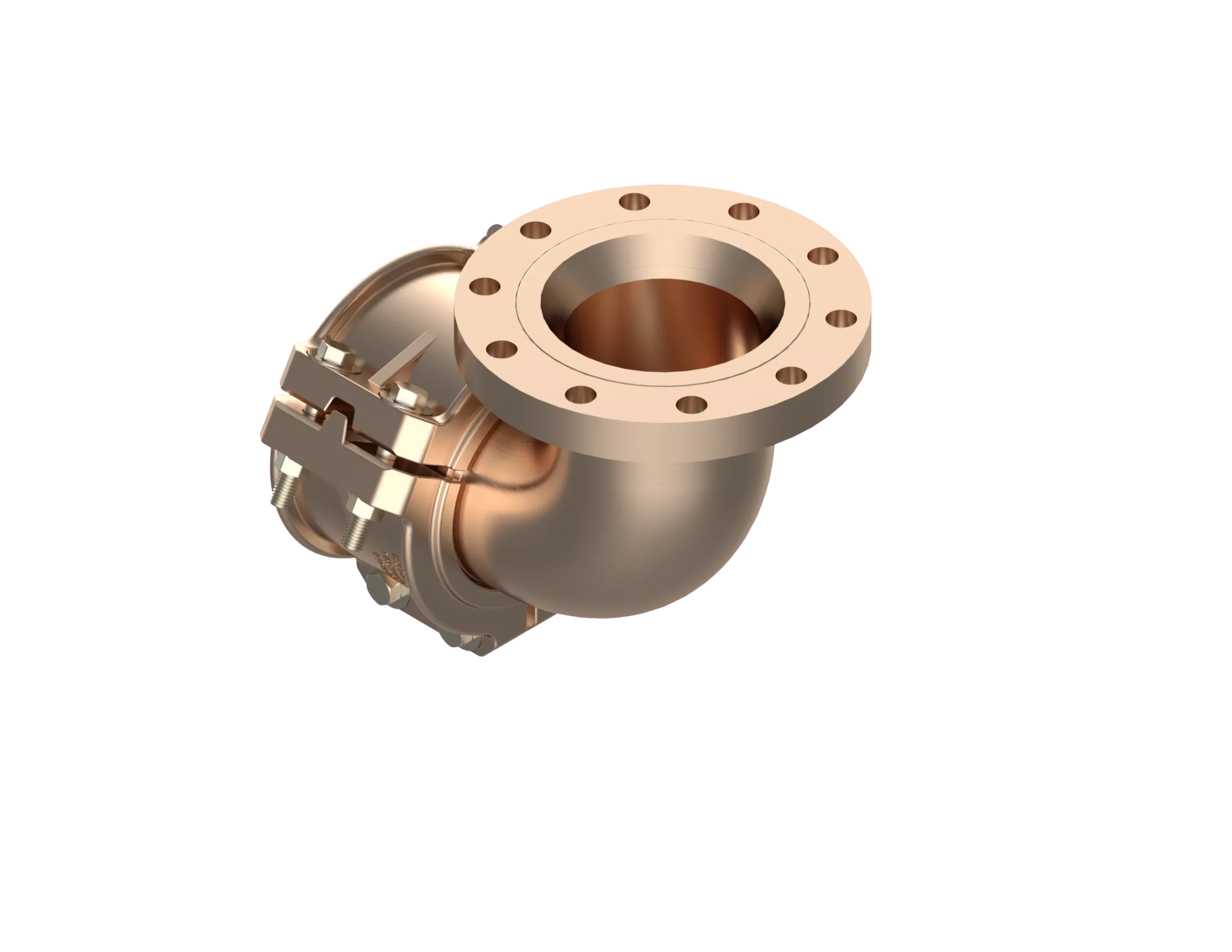

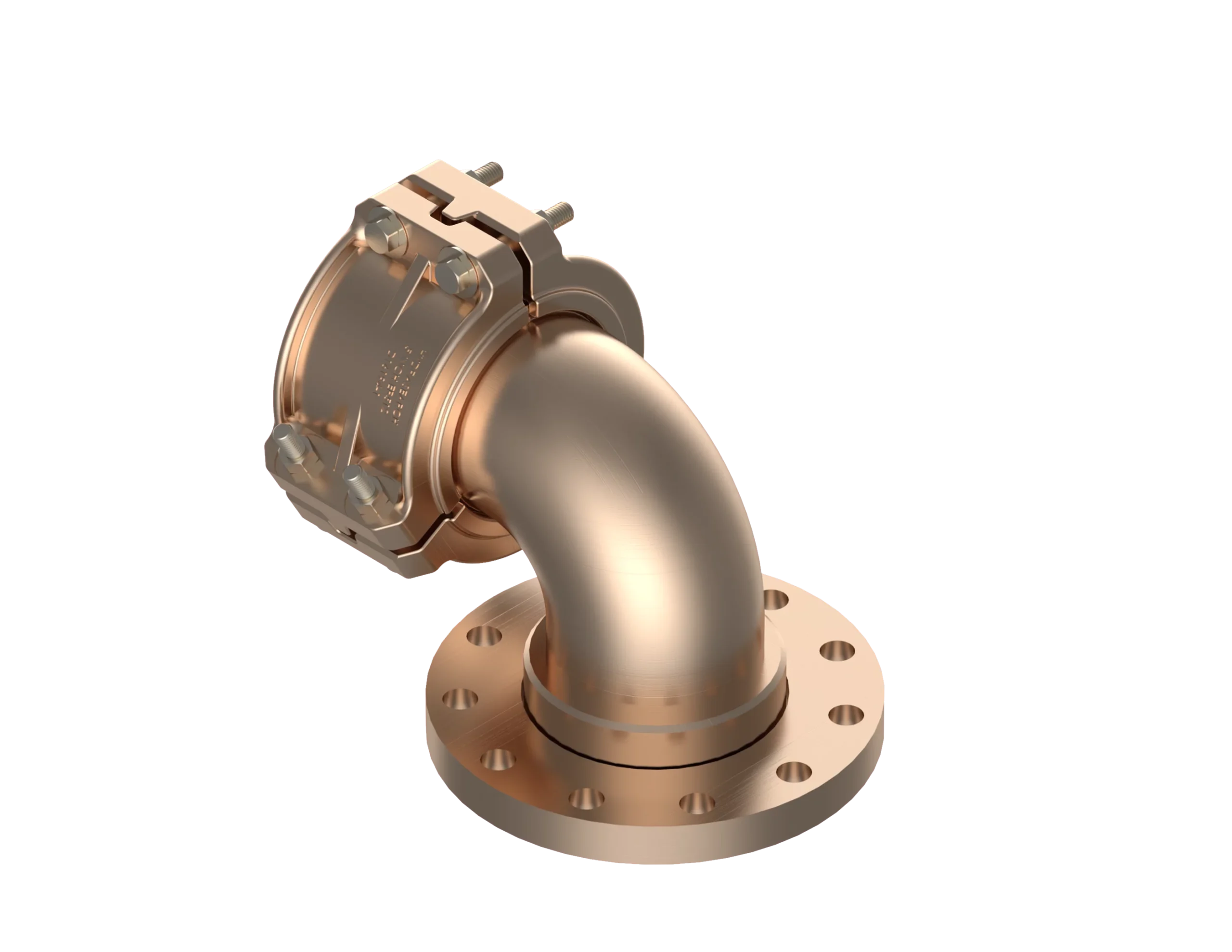

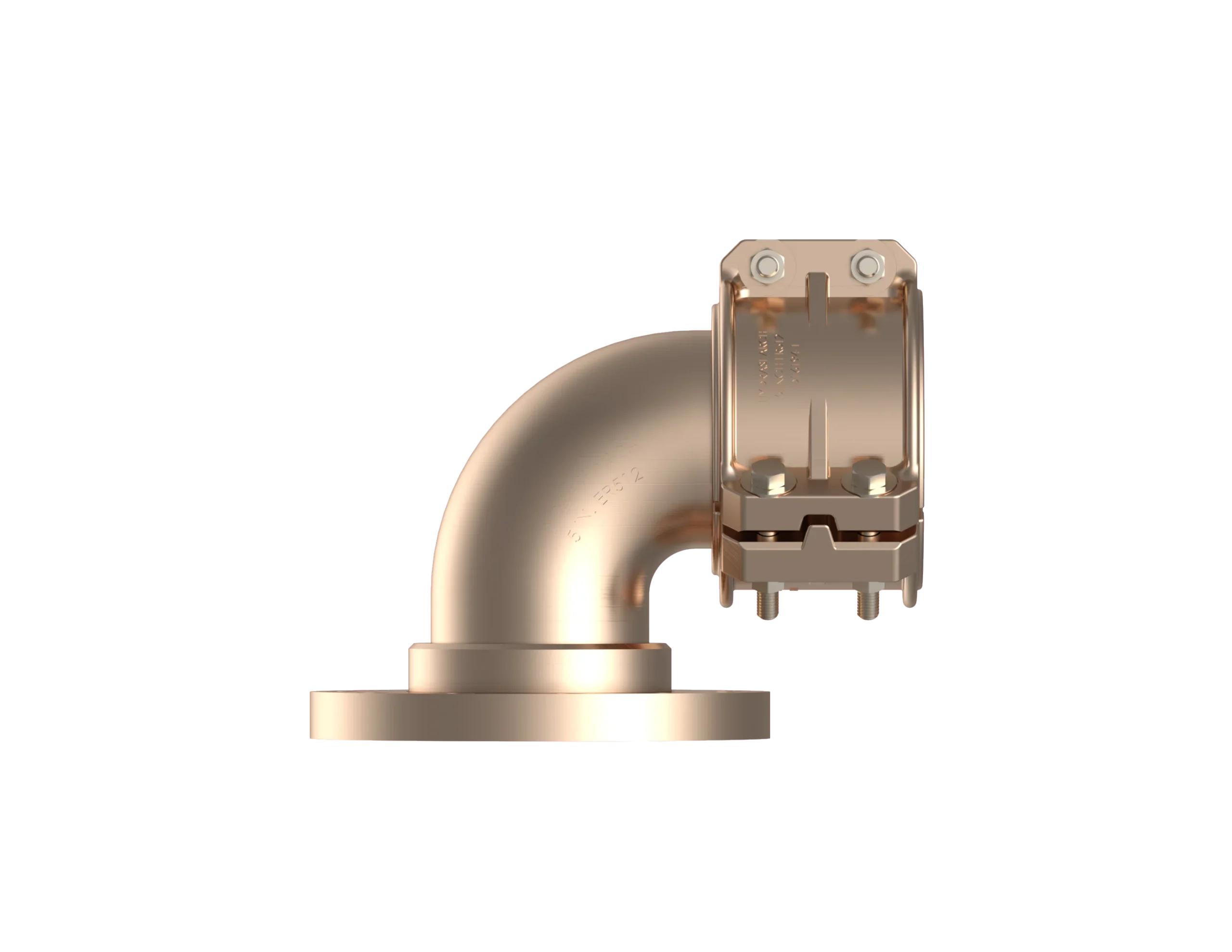

90EF-12-150F-B16.5 – End Fittings – 90º – Flange to Hose (MIL-DTL-24787/1, Type FL, Group IX, Class V, 150 Lb. Flange per A.N.S.I. B16.5)
Print
Download PDF
( MIL-DTL-24787/1, Type FL, Group IX, Class V, 150lb, End Fitting - 90° )
Description:
Equal to Aeroquip P/N FC7780-188,
Use with the following hose:
ER512 & 2580
Specification
Specification Table
| Part Number | 90EF-12-150F-B16.5 |
|---|---|
| Hydrasearch Drawing Number | D19736 |
| IPS Size | 12 |
| No. of Bolt Holes | 12 |
| M | 1.00 |
| A | 14.32 |
| D | 9.04 |
| H | 10.70 |
| J | 19.00 |
| K | 14.48 |
| L | 17.00 |
| N | 1.48 |
| R | 7.38 |
| S | 12.33 |
| T | 17.10 |
| Est. Wt. (lbs.) | - |
Components Table
| Description | Req’d per Ass’y | 5" | 6" | 8" | 10" | 12" | Material |
| Swivel Flange | 1 | C16914-1 | C16914-2 | C16914-3 | C18831 | C18832 | Bronze |
| Elbow | 1 | D16920 | D16921 | D16922 | D18826 | D18833 | Aluminum. Bronze |
| Grip Segment | 3 | D16194-1 | D16198-1 | D16080-1 | D18345-1 | D18282-1 | Aluminum. Bronze |
| Bolt | 6 | D16197-4 | D16197-4 | B16551-1 | B16551-1 | B18346 | Monel |
| Nut | 6 | D16197-6 | D16197-6 | B16551-3 | B16551-3 | B18347 | Monel |
| Washer | 6 | D16197-5 | D16197-5 | B16551-2 | B16551-2 | B18348 | Monel |
