9004-12

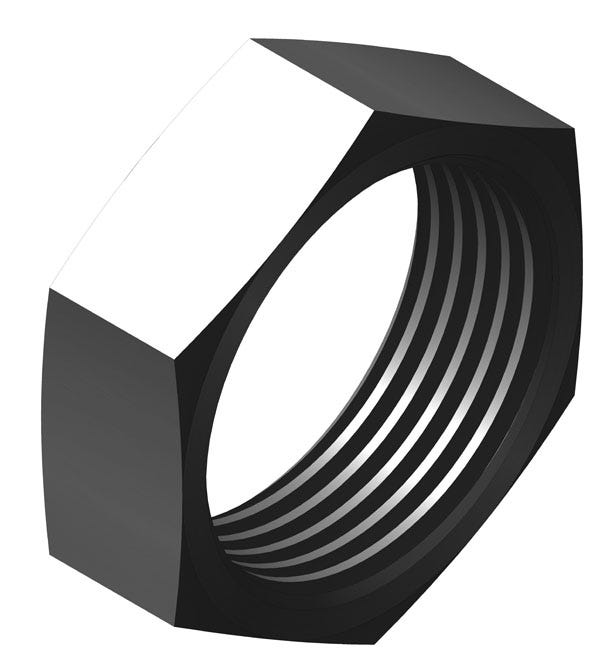

9004-12 – Tube Fittings – Nut, Bulkhead -9004

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 489R
  • Hex C: 1-5/8
  • References: Technical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
  • Standard Material: Steel – S Stainless Steel – Ss Bronze – Brz Nickel Copper (Monel) – Nicu Copper Nickel – Cuni
  • Thread Size B: 1-1/2"-12
  • Tube Size: 3/4

Specification Table

CPV-O-Seal489R
Hex C1-5/8
ReferencesTechnical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
Standard MaterialSteel – S Stainless Steel – Ss Bronze – Brz Nickel Copper (Monel) – Nicu Copper Nickel – Cuni
Thread Size B1-1/2"-12
Tube Size3/4
