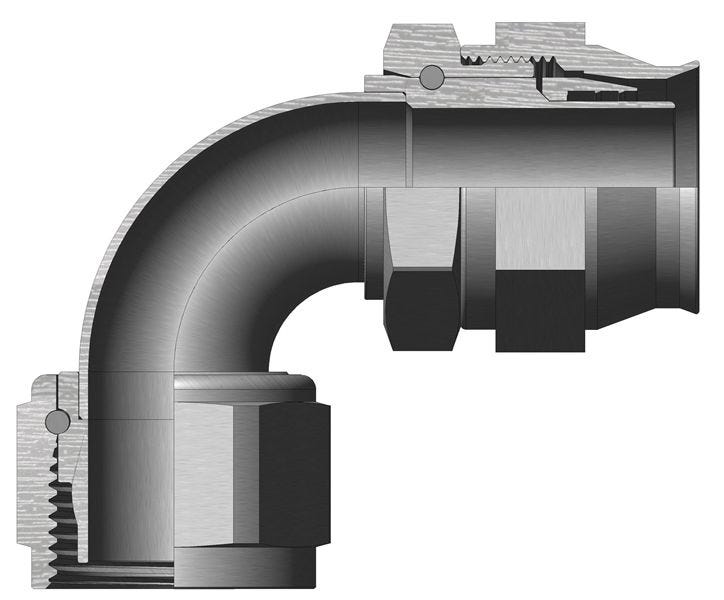

medium_pressure_tfe_hose_fitting_-_90_degree_elbow_flareless_bent_tube_-_dimensions_1_1-100x100-2
148-05220-16
Print Icon Print Download Icon Download PDF

Specification

  • Weight: 0.749 lbs
  • G: '1.967
  • H: '0.831
  • K: '1.500
  • L: '1.500
  • R: '0.97
  • Hose Size: '1
  • Insert Assembly: 148-30477
  • Mil Spec: Ms27383
  • NSN No.: '4730-00-007-2203
  • Thread Size - T: 1-5/16"-12
  • Type 1: Complete Fitting

Specification Table

Weight0.749 lbs
G'1.967
H'0.831
K'1.500
L'1.500
R'0.97
Hose Size'1
Insert Assembly148-30477
Mil SpecMs27383
NSN No.'4730-00-007-2203
Thread Size - T1-5/16"-12
Type 1Complete Fitting
