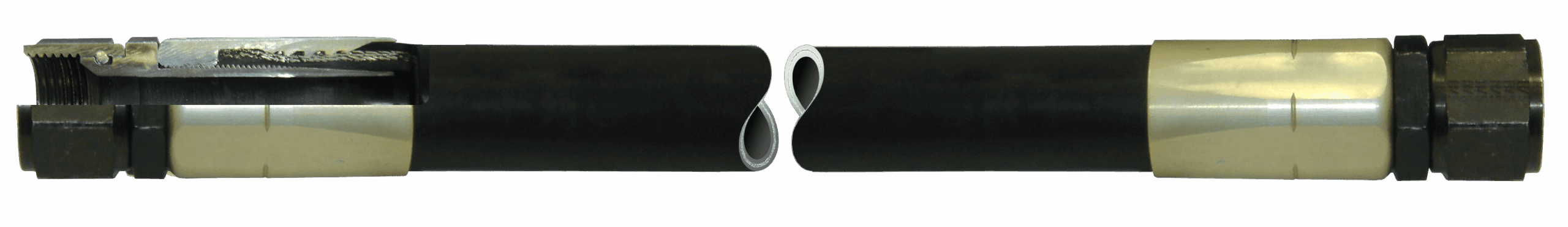

high pressure hose assembly 88b0100004f00001 scaled
high pressure hose assembly 88b0100004f00001 scaledhighpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference-100x1001-7
88B0100016F0000

88B0100016F0000 – High Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-8789
  • Hose Assembly Mil Spec: Mil-Dtl-8790
  • Hose Mil Spec: Mil-Dtl-8788
  • Hose Id: 0.875
  • Hose Size: 1
  • Material: Aluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
  • Max Operating Pressure PSI: 3
  • Ms Part No: Ms28759-16L
  • Size in: -16
  • Thread Size - T: 1-5/16"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-8789
Hose Assembly Mil SpecMil-Dtl-8790
Hose Mil SpecMil-Dtl-8788
Hose Id0.875
Hose Size1
MaterialAluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
Max Operating Pressure PSI3
Ms Part NoMs28759-16L
Size in-16
Thread Size - T1-5/16"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
