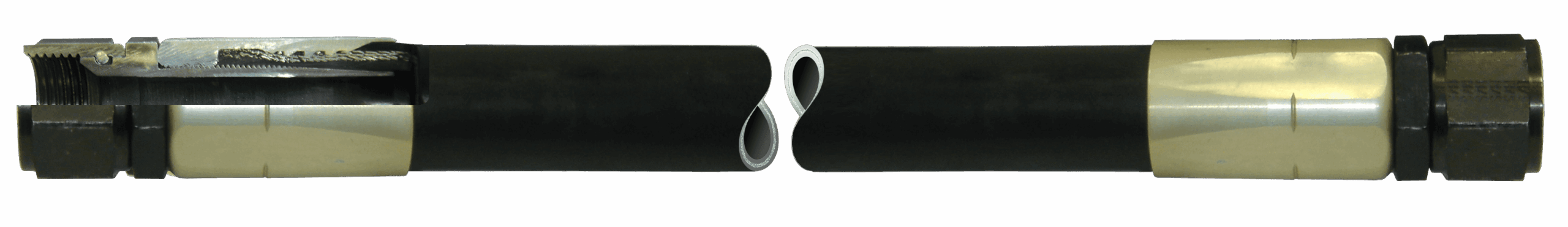

high pressure hose assembly 88b0100004f0000 11 4 scaled
high pressure hose assembly 88b0100004f0000 11 4 scaledhighpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference-100x1001-5
88B0100010F0000

88B0100010F0000 – High Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-8789
  • Hose Assembly Mil Spec: Mil-Dtl-8790
  • Hose Mil Spec: Mil-Dtl-8788
  • Hose Id: 0.563
  • Hose Size: 5/8
  • Material: Aluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
  • Max Operating Pressure PSI: 3
  • Ms Part No: Ms28759-10L
  • Size in: 10
  • Thread Size - T: 7/8"-14
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-8789
Hose Assembly Mil SpecMil-Dtl-8790
Hose Mil SpecMil-Dtl-8788
Hose Id0.563
Hose Size5/8
MaterialAluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
Max Operating Pressure PSI3
Ms Part NoMs28759-10L
Size in10
Thread Size - T7/8"-14
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
