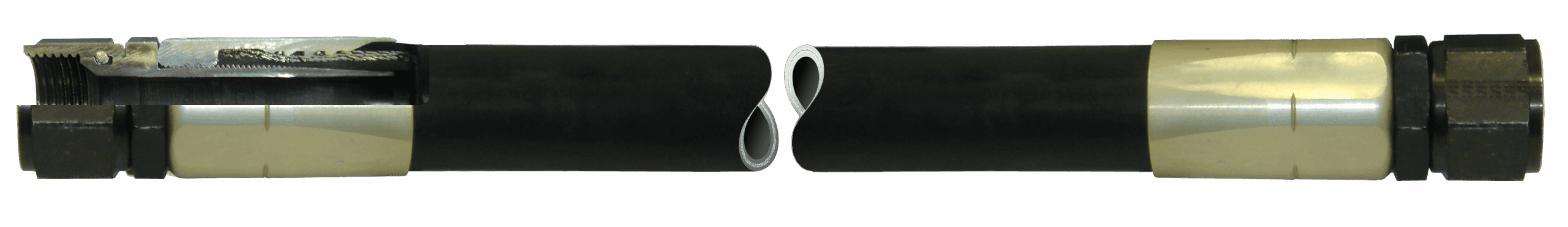

high pressure hose assembly 88b0100004f0000 11 2 scaled
high pressure hose assembly 88b0100004f0000 11 2 scaledhighpressurerubberhoseassemblies-mstohydrasearchhoseassemblycrossreference-100x1001-3
88B0100006F0000

88B0100006F0000 – High Pressure Rubber Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Finish: Aluminum Alloy
  • Fitting Mil Spec: Mil-Dtl-8789
  • Hose Assembly Mil Spec: Mil-Dtl-8790
  • Hose Mil Spec: Mil-Dtl-8788
  • Hose Id: 0.344
  • Hose Size: 3/8
  • Material: Aluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
  • Max Operating Pressure PSI: 3
  • Ms Part No: Ms28759-6L
  • Size in: -06
  • Thread Size - T: 9/16"-18
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

FinishAluminum Alloy
Fitting Mil SpecMil-Dtl-8789
Hose Assembly Mil SpecMil-Dtl-8790
Hose Mil SpecMil-Dtl-8788
Hose Id0.344
Hose Size3/8
MaterialAluminum And Steel In Accordance With Table I Of Mil-Dtl-8789.All Sizes Are Steel With Aluminum Sockets.
Max Operating Pressure PSI3
Ms Part NoMs28759-6L
Size in-06
Thread Size - T9/16"-18
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
