8650-4-4-NICU

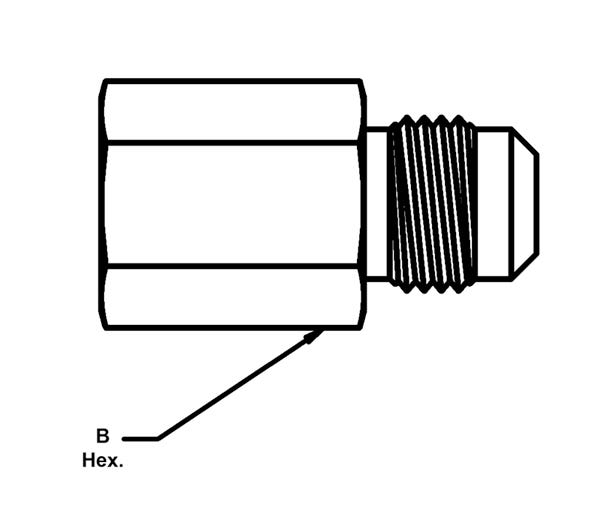

8650-4-4-NICU – 8650 Series Female NPTF x 45º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 2001,

Specification

  • A: 1.19''
  • B: 0.69''
  • Equal To Aeroquip No : 4-2001-4-4
  • Hydrasearch Drawing Number: 8650-4-4''
  • Material: Monel
  • Thread Size P Nptf: 1/4"-18
  • Thread Size - T: 7/16"-20
  • Tube O D In: 1/4''

Specification Table

A1.19''
B0.69''
Equal To Aeroquip No 4-2001-4-4
Hydrasearch Drawing Number8650-4-4''
MaterialMonel
Thread Size P Nptf1/4"-18
Thread Size - T7/16"-20
Tube O D In1/4''
