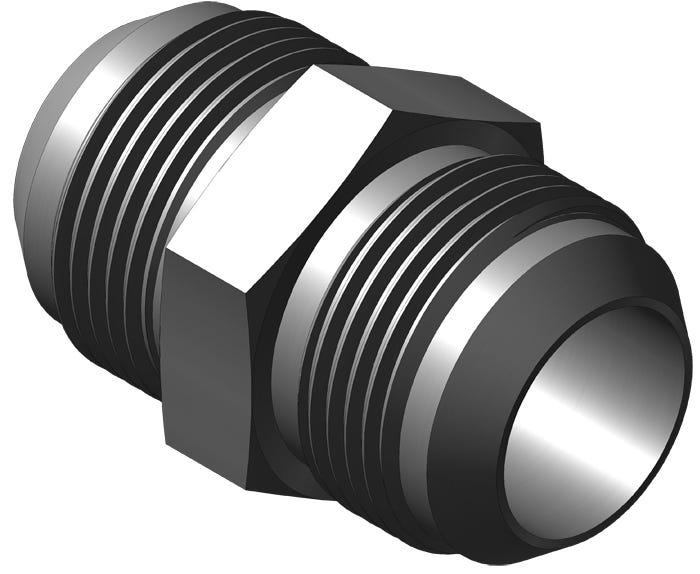

8641-16-12-CUNI – 8641 Series S.A.E. 37º Male Flare Union Adapters
8641-16-12-CUNI – 8641 Series S.A.E. 37º Male Flare Union Adaptersa1505-1
8641-16-12-CUNI

8641-16-12-CUNI – 8641 Series S.A.E. 37º Male Flare Union Adapters

Print Icon Print Download Icon Download PDF
( Equal to Aeroquip )

Description:

Equal to Aeroquip P/N 2027,

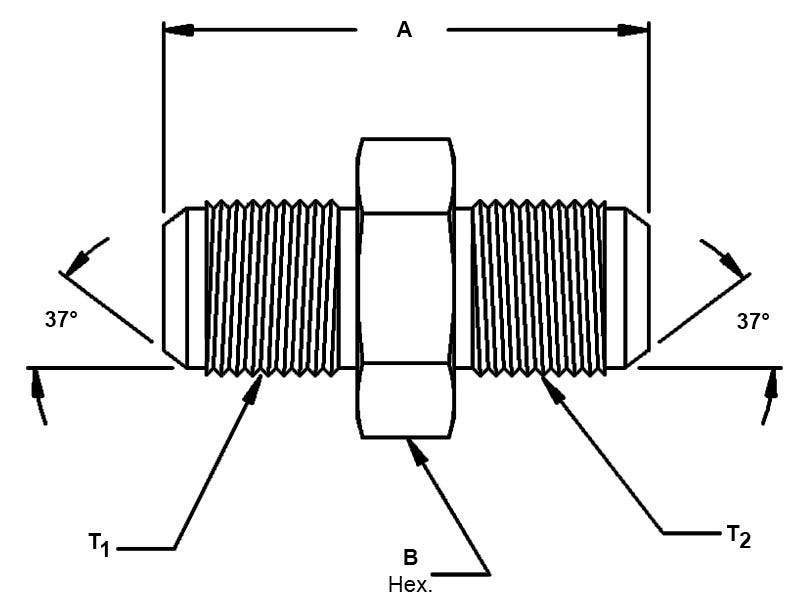

Specification

  • A: '2.20
  • B: '1.38
  • Material: Copper Nickel
  • Tube O D In: '3/4
  • Thread Size T Sub 1 Sub: 1-5/16"-12
  • Thread Size T Sub 2 Sub: 1-1/16"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A '2.20
B '1.38
MaterialCopper Nickel
Tube O D In '3/4
Thread Size T Sub 1 Sub 1-5/16"-12
Thread Size T Sub 2 Sub 1-1/16"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
