8640-24-24-CUNI – 8640 Series Female Sil-Braze Tube x 37º Male Flare Adapters

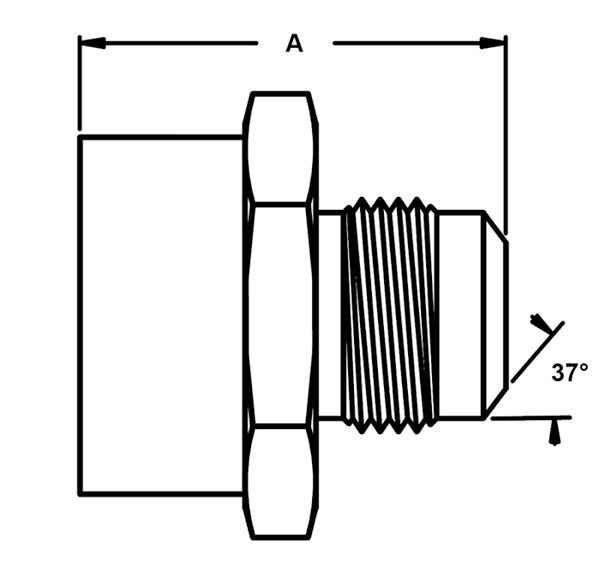

8640-24-24-CUNI – 8640 Series Female Sil-Braze Tube x 37º Male Flare Adaptersadapter-2_1
8640-24-24-CUNI

8640-24-24-CUNI – 8640 Series Female Sil-Braze Tube x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202240,

Specification

  • A: '2.88
  • B: '1.50
  • C: '.94
  • Hose Size In : '3/4
  • Material: Copper Nickel
  • Thread Size - T: 1-7/8"-12
  • Tube O D In: '1-1/2
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A'2.88
B'1.50
C'.94
Hose Size In '3/4
MaterialCopper Nickel
Thread Size - T1-7/8"-12
Tube O D In'1-1/2
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
