8640-12-12-CUNI

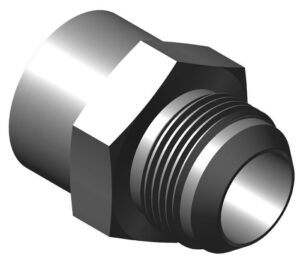

8640-12-12-CUNI – 8640 Series Female Sil-Braze Tube x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip P/N 202240,

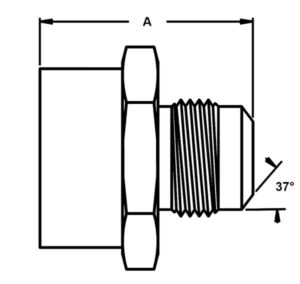

Specification

  • A: '2.04
  • B: '0.75
  • C: '0.56
  • Hose Size In : '3/4
  • Material: Copper Nickel
  • Thread Size - T: 1-1/16"-12
  • Tube O D In: '3/4
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A'2.04
B'0.75
C'0.56
Hose Size In '3/4
MaterialCopper Nickel
Thread Size - T1-1/16"-12
Tube O D In'3/4
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
