8636-20-16-CUNI

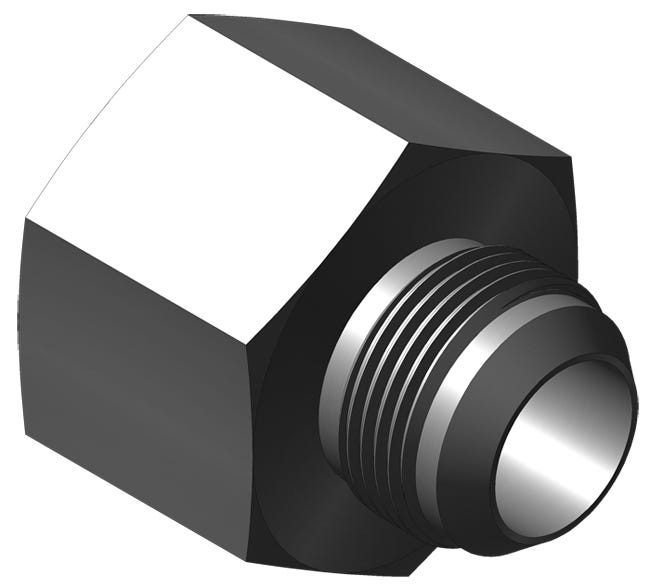

8636-20-16-CUNI – 8636 Series Female NPTF x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 2022,

Specification

  • A: 2.44''
  • Hose Size: 1''
  • Material: Copper Nickel
  • Thread Size P Nptf: 1-1/4"-11-1/2''
  • Thread Size - T: 1-5/16"-12
  • Tube O D In: 1''
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

A2.44''
Hose Size1''
MaterialCopper Nickel
Thread Size P Nptf1-1/4"-11-1/2''
Thread Size - T1-5/16"-12
Tube O D In1''
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
