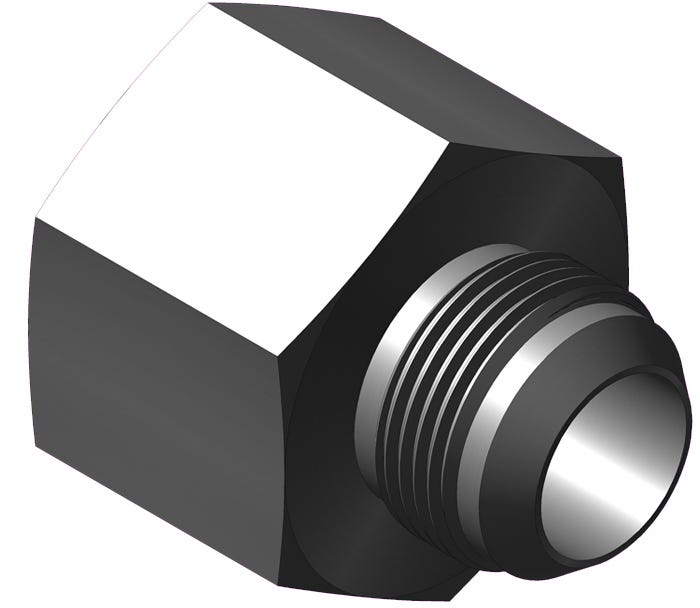

8635-8-32-CUNI – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters
8635-8-32-CUNI – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adaptersa1503_1-100x100-4
8635-8-32-CUNI

8635-8-32-CUNI – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: '2.62
  • A: '3.64
  • B: '2.38
  • C: '1-1/4
  • Material: Copper Nickel
  • Thread Size - T: 2-1/2"-12
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

H'2.62
A'3.64
B'2.38
C'1-1/4
MaterialCopper Nickel
Thread Size - T 2-1/2"-12
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
