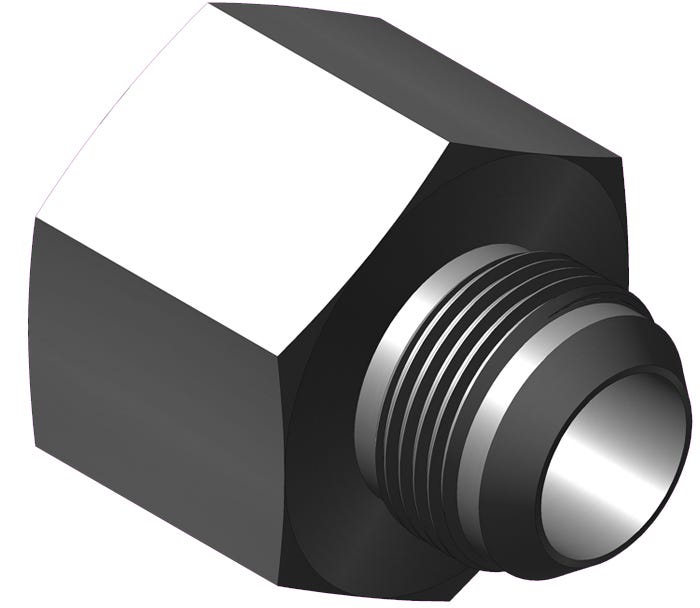

8635-5-24-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters
8635-5-24-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adaptersa1503-100x100-21-2
8635-5-24-NICU

8635-5-24-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: '2
  • A: '2.57
  • B: 1.32
  • C: 0.81
  • Equal To Aeroquip No : 4-202242-1-24
  • Hydrasearch Drawing Number: '8635-5-24
  • Material: Monel
  • NSN No.: 4730-00-853-0774
  • Thread Size - T: 1-7/8"-12

Specification Table

H'2
A'2.57
B1.32
C0.81
Equal To Aeroquip No 4-202242-1-24
Hydrasearch Drawing Number'8635-5-24
MaterialMonel
NSN No. 4730-00-853-0774
Thread Size - T 1-7/8"-12
