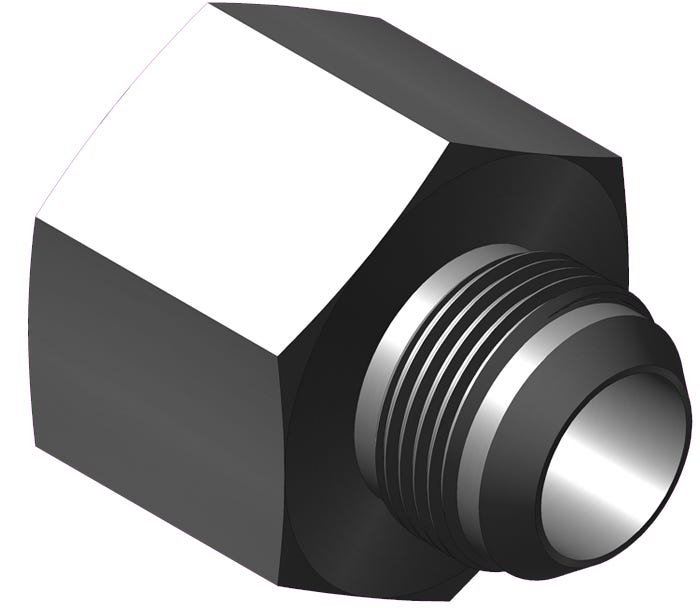

8635 5 16 ss wholeiso 9
8635 5 16 ss wholeiso 9a1503-100x100-8
8635-4-16-NICU

8635-4-16-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: 1.69''
  • A: 2.21''
  • B: 1.05''
  • C: 0.69
  • Equal To Aeroquip No : 4-202242-3/4-16
  • Hydrasearch Drawing Number: 8635-4-16''
  • Material: Monel
  • NSN No.: 4730-00-400-2208
  • Thread Size - T: 1-5/16"-12

Specification Table

H1.69''
A2.21''
B1.05''
C0.69
Equal To Aeroquip No 4-202242-3/4-16
Hydrasearch Drawing Number8635-4-16''
MaterialMonel
NSN No.4730-00-400-2208
Thread Size - T1-5/16"-12
