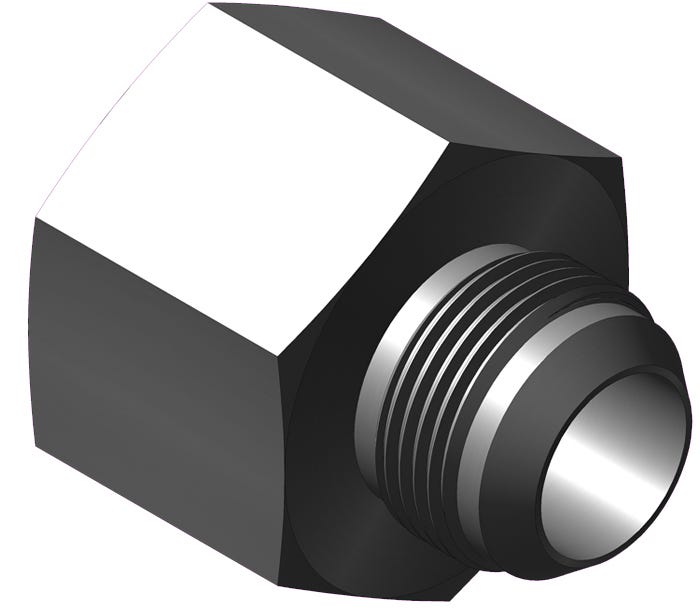

8635-4-12-SS – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters
8635-4-12-SS – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adaptersa1503-100x100-6
8635-4-12-SS

8635-4-12-SS – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: '1.69
  • A: '2.16
  • B: '1.05
  • C: '0.69
  • Equal To Aeroquip No : 259-202242-3/4-12
  • Hydrasearch Drawing Number: '8635-4-12
  • Material: Stainless Steel
  • Thread Size - T: 1-1/16"-12

Specification Table

H '1.69
A'2.16
B'1.05
C'0.69
Equal To Aeroquip No 259-202242-3/4-12
Hydrasearch Drawing Number'8635-4-12
MaterialStainless Steel
Thread Size - T1-1/16"-12
