8635-3-8-NICU

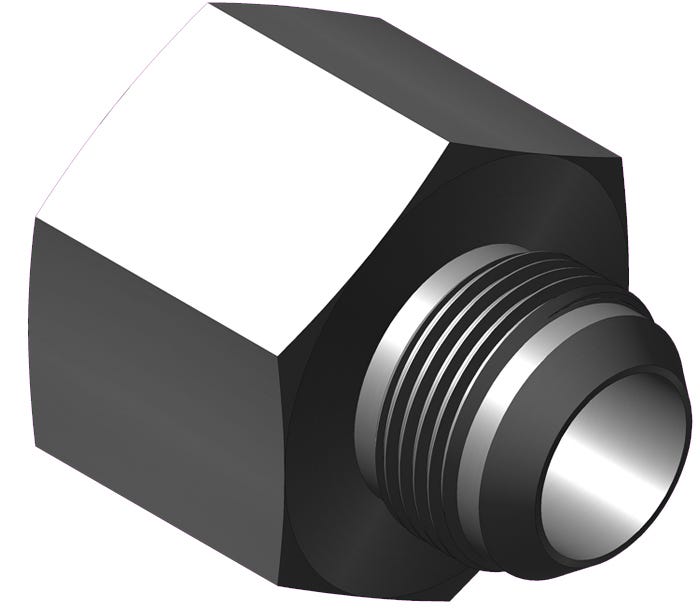

8635-3-8-NICU – 8635 Series Female Sil-Braze Pipe x 37º Male Flare Adapters

Print Icon Print Download Icon Download PDF

Description:

Equal to Aeroquip 202242,

Specification

  • H: 1.44''
  • A: 1.80''
  • B: 0.84''
  • C: 0.56''
  • Equal To Aeroquip No : 4-202242-1/2-8
  • Hydrasearch Drawing Number: 8635-3-8''
  • Material: Monel
  • NSN No.: 4730-00-489-5351
  • Thread Size - T: 3/4"-16

Specification Table

H1.44''
A1.80''
B0.84''
C0.56''
Equal To Aeroquip No 4-202242-1/2-8
Hydrasearch Drawing Number8635-3-8''
MaterialMonel
NSN No.4730-00-489-5351
Thread Size - T3/4"-16
