8394-4-4-2 – Tee Adapters – Hose to Tube to Pipe
8394-4-4-2 – Tee Adapters – Hose to Tube to Pipe
8394-4-4-2

8394-4-4-2 – Tee Adapters – Hose to Tube to Pipe

Print Icon Print Download Icon Download PDF

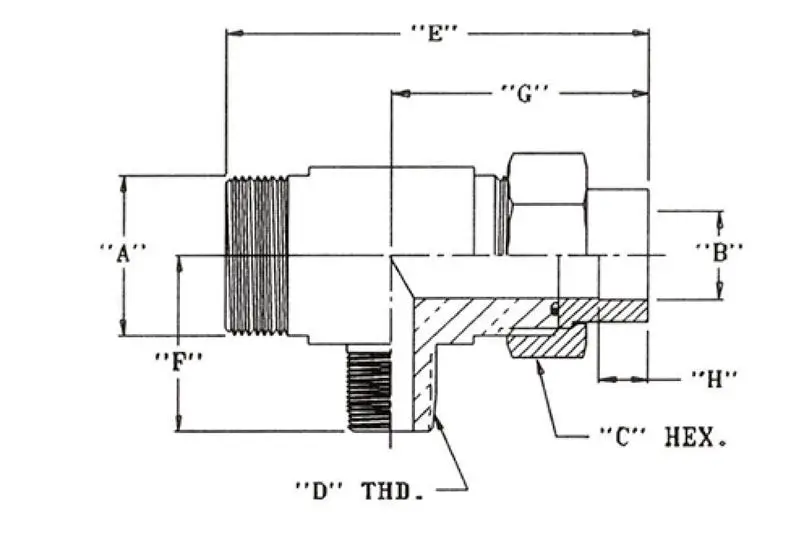

Specification

  • CPV-O-Seal: F811
  • E: 2
  • F: 13/16
  • G: 1-3/16
  • H: 3/16
  • Hex C: 5/8
  • Thread Size A: 9/16"-18
  • Thread Size D: 1/8"-27

Specification Table

CPV-O-SealF811
E2
F13/16
G1-3/16
H3/16
Hex C5/8
Thread Size A9/16"-18
Thread Size D1/8"-27
