8391-8

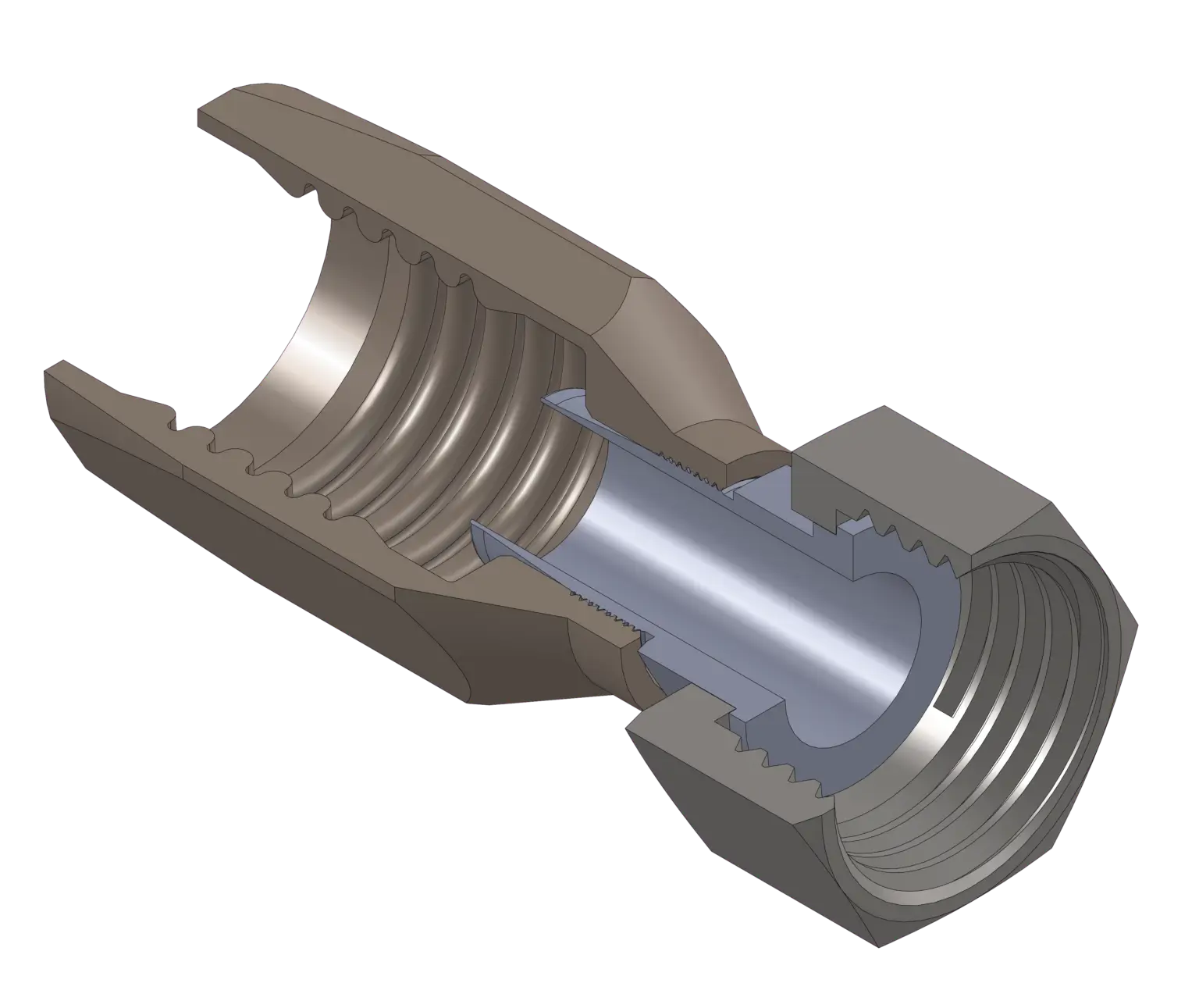

8391-8 – Hose End Fittings – High Pressure

Print Icon Print Download Icon Download PDF

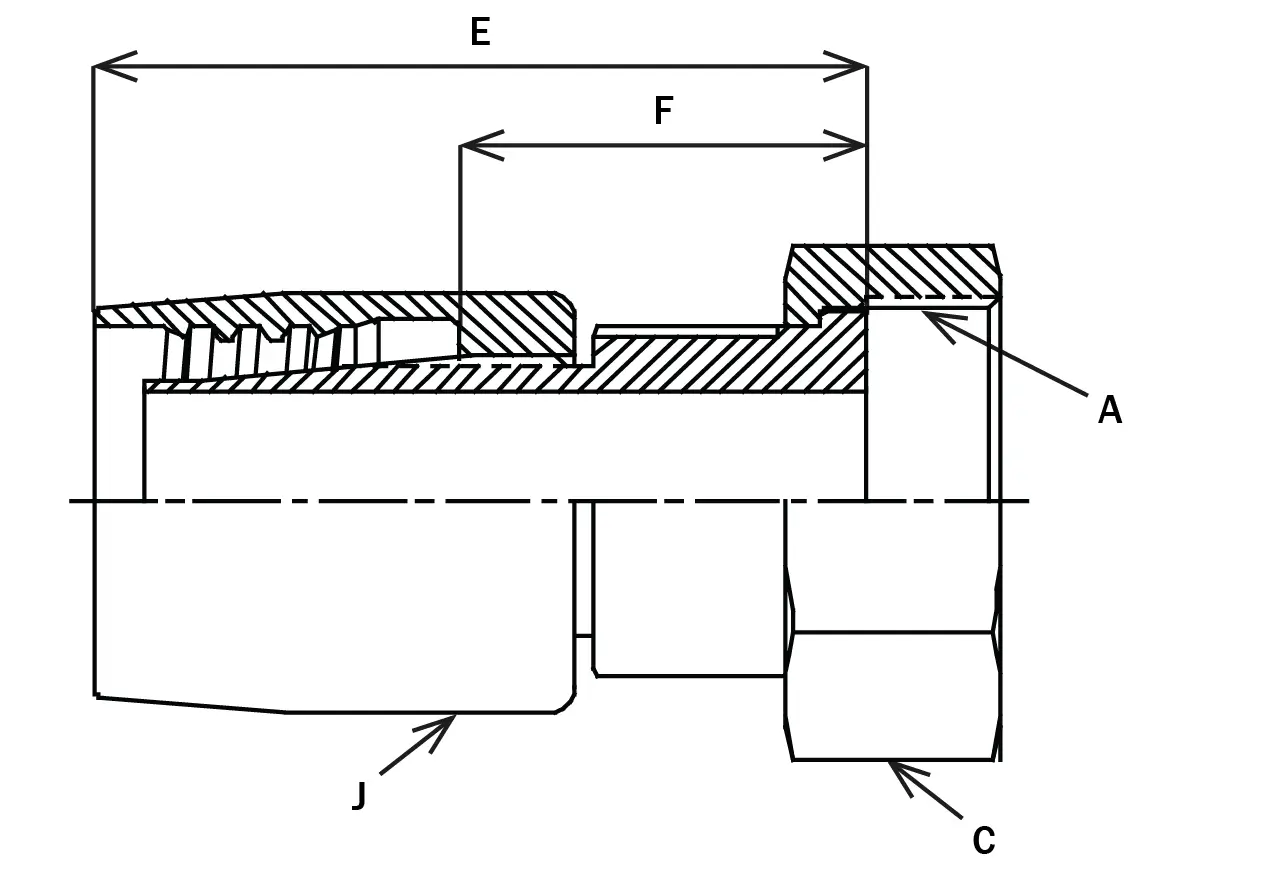

Specification

  • Applicable Hoses: SAE 100R2
  • CPV-O-Seal: F880
  • E: 3-1/16
  • F: 1-9/16
  • Hex C: 15/16
  • Hex J: 1-1/8
  • Hose Id: 1/2
  • Max Working Pressure: 3
  • Nom Hose Size: 1/2
  • Thread Size A: 13/16"-16

Specification Table

Applicable HosesSAE 100R2
CPV-O-SealF880
E3-1/16
F1-9/16
Hex C15/16
Hex J1-1/8
Hose Id1/2
Max Working Pressure3
Nom Hose Size1/2
Thread Size A13/16"-16
