8315-4-4-4 – Tube Fittings – Male Branch Tee – Tube to Tube to Straight Thread

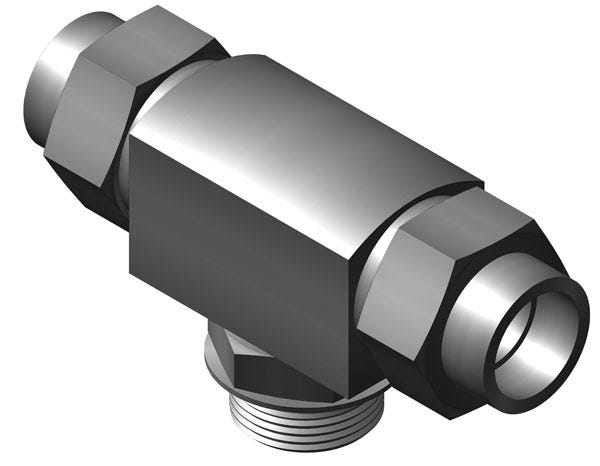

8315-4-4-4 – Tube Fittings – Male Branch Tee – Tube to Tube to Straight Thread8315-16-16-16-wholeiso
8315-4-4-4

8315-4-4-4 – Tube Fittings – Male Branch Tee – Tube to Tube to Straight Thread

Print Icon Print Download Icon Download PDF

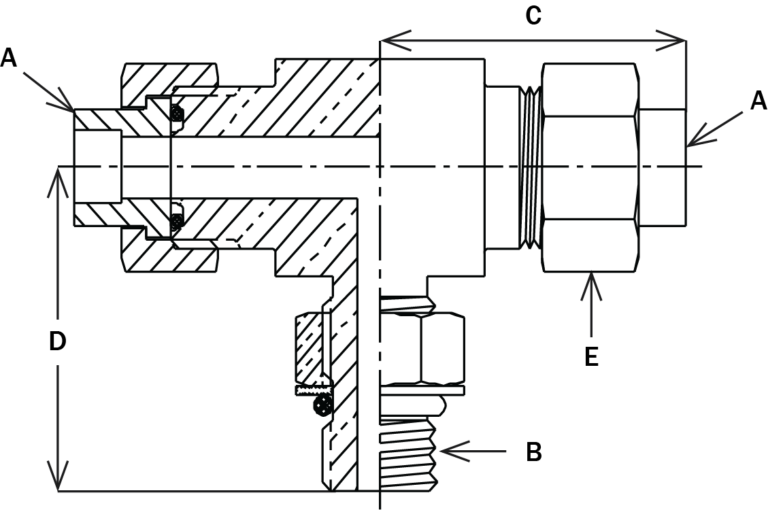

Specification

  • CPV-O-Seal: H815
  • C: '1-3/16
  • D: '1-1/8
  • Hex. E: '5/8
  • Male Standard Thread Size B: 7/16"-20
  • Od Tube Socket A: '1/4
  • References: Technical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
  • Socket Depth : '3/16

Specification Table

CPV-O-SealH815
C'1-3/16
D'1-1/8
Hex. E'5/8
Male Standard Thread Size B7/16"-20
Od Tube Socket A'1/4
ReferencesTechnical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
Socket Depth '3/16
