8312-4-4-4 – Tube Fittings – Male Run Tee – Tube to Male NPT to Tube

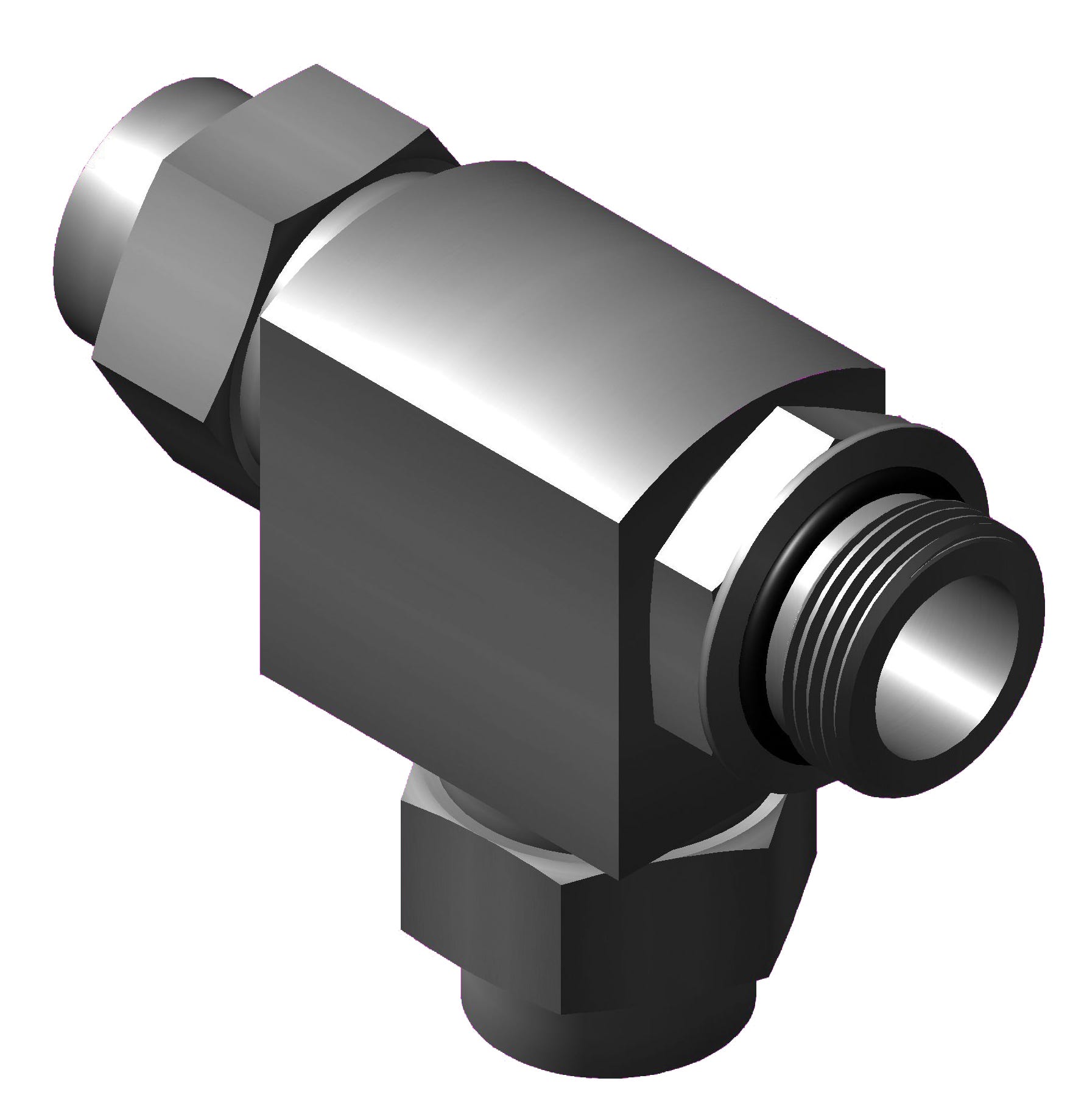

8312-4-4-4 – Tube Fittings – Male Run Tee – Tube to Male NPT to Tube8316-wholeiso
8312-4-4-4

8312-4-4-4 – Tube Fittings – Male Run Tee – Tube to Male NPT to Tube

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: H812
  • C: '1-3/16
  • D: '1-1/16
  • Hex. E: '5/8
  • Male Npt Size B: 1/4"-18
  • Od Tube Socket A: '1/4
  • References: Technical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
  • Socket Depth : '3/16

Specification Table

CPV-O-SealH812
C'1-3/16
D'1-1/16
Hex. E'5/8
Male Npt Size B1/4"-18
Od Tube Socket A'1/4
ReferencesTechnical Products 8300 Series Fitting Ordering And Engineering Information For Tech-O-Seal Fittings (Catalog 1220).Pdf
Socket Depth '3/16
