8103-6-20 – Pipe Fittings

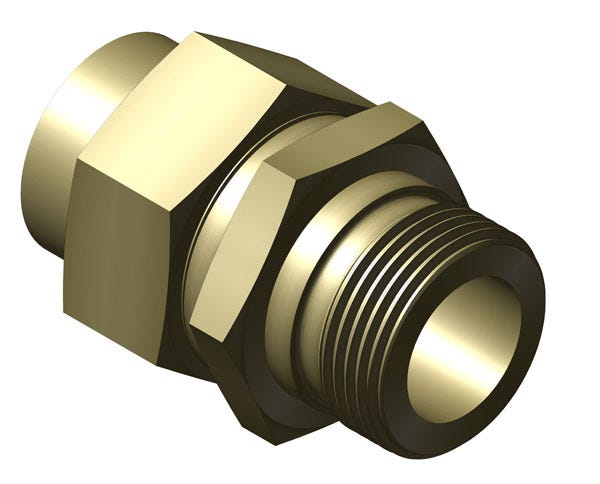

8103-6-20 – Pipe Fittings – Male Connector – Pipe Socket to Male Straight Thread

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: H759
  • Derbyshire Marine Catalog No: MP303
  • B: 3-1/4''
  • F: 1/2''
  • G: 5/8''
  • Hex C: 3-1/4''
  • Hex D: 3''
  • Ips A In: 1-1/4''
  • Plp Attributes: ips_a_in
  • Thread Size E: 1-5/8"-12

Specification Table

CPV-O-SealH759
Derbyshire Marine Catalog NoMP303
B3-1/4''
F1/2''
G5/8''
Hex C3-1/4''
Hex D3''
Ips A In1-1/4''
Plp Attributesips_a_in
Thread Size E1-5/8"-12
