8103-5-20 – Pipe Fittings

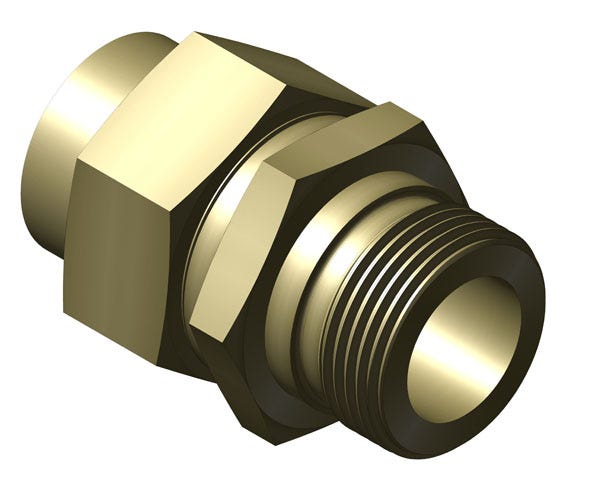

8103-5-20 – Pipe Fittings – Male Connector – Pipe Socket to Male Straight Thread

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: H759
  • Derbyshire Marine Catalog No: MP303
  • B: 2-3/4''
  • F: 1/2''
  • G: 5/8''
  • Hex C: 2-3/8''
  • Hex D: 2-1/4''
  • Ips A In: 1''
  • Plp Attributes: ips_a_in
  • Thread Size E: 1-5/8"-12

Specification Table

CPV-O-SealH759
Derbyshire Marine Catalog NoMP303
B2-3/4''
F1/2''
G5/8''
Hex C2-3/8''
Hex D2-1/4''
Ips A In1''
Plp Attributesips_a_in
Thread Size E1-5/8"-12
