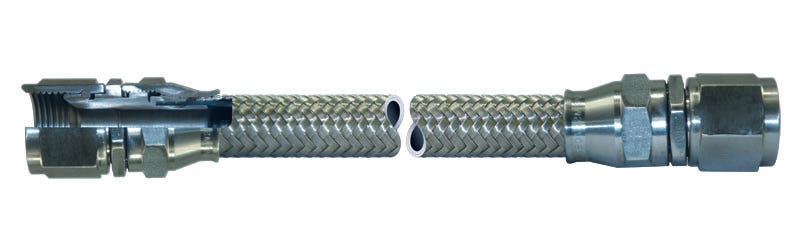

79B0100010C0000 – Medium Pressure TFE Hose Assemblies

Print Icon Print Download Icon Download PDF

Specification

  • Design 1: Flared And Flareless Fittings. Sizes -3 Through -8 Are Forged Design. Sizes -10 Through -16 Are Bent Tube Design. Hydrasearch Field-Attachable Elbow Fittings Are Adjustable In Angular Rotation Throug
  • Finish: Passivated per SAE-AMS2700.
  • Fitting Mil Spec: MIL-DTL-27272
  • Hose Assembly Mil Spec: MIL-DTL-25579
  • Hose Mil Spec: Mil-Dtl-27267
  • Hose Size: 5/8
  • Hose Id: 0.562
  • Material: Corrosion Resistant Steel In Accordance With Mil-Dtl-25579. Aluminum Option Available Upon Request.
  • Max Operating Pressure PSI: 1500
  • Min Bend Radius : 5.50
  • Min Burst Pressure: 7000
  • Min Proof Pressure : 3
  • Size in: 10
  • Notes: Dimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.

Specification Table

Design 1Flared And Flareless Fittings. Sizes -3 Through -8 Are Forged Design. Sizes -10 Through -16 Are Bent Tube Design. Hydrasearch Field-Attachable Elbow Fittings Are Adjustable In Angular Rotation Throug
FinishPassivated per SAE-AMS2700.
Fitting Mil SpecMIL-DTL-27272
Hose Assembly Mil SpecMIL-DTL-25579
Hose Mil SpecMil-Dtl-27267
Hose Size5/8
Hose Id0.562
MaterialCorrosion Resistant Steel In Accordance With Mil-Dtl-25579. Aluminum Option Available Upon Request.
Max Operating Pressure PSI1500
Min Bend Radius 5.50
Min Burst Pressure7000
Min Proof Pressure 3
Size in10
NotesDimensional Information Is For Reference Only. Variations From These Dimensions On Actual Parts May Occur As The Result Of Engineering Revisions.
