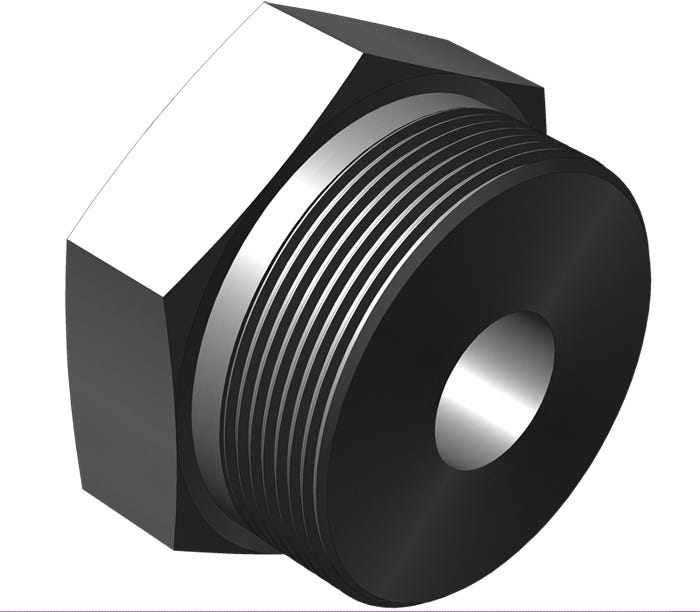

6T64-7-24 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Size
6T64-7-24 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Sizemh
6T64-7-24

6T64-7-24 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Size

Print Icon Print Download Icon Download PDF

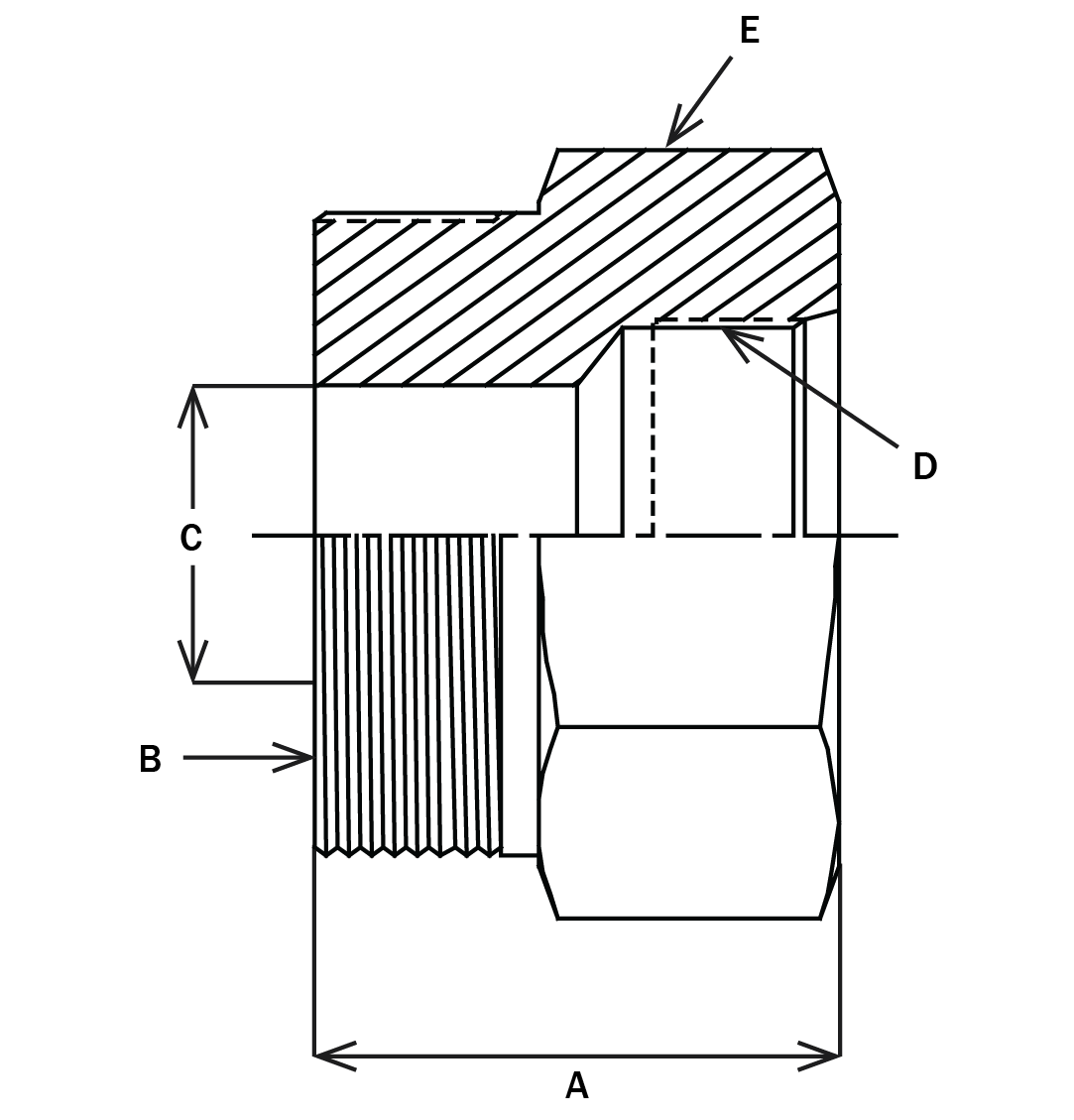

Specification

  • CPV-O-Seal: 64T
  • C: '1-3/8
  • Dim E Hex: '3-1/8
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Thread Size B: 3-1/16"-12
  • Thread Size D: '1-7/8"-12
  • Tube Size: '1-1/2 X 1-1/2

Specification Table

CPV-O-Seal64T
C'1-3/8
Dim E Hex'3-1/8
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Thread Size B3-1/16"-12
Thread Size D'1-7/8"-12
Tube Size'1-1/2 X 1-1/2
