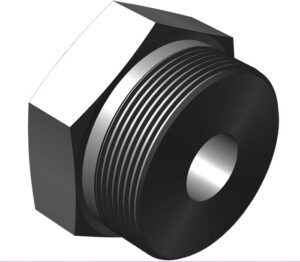

6T64-2-8 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Size
6T64-2-8 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Size6t64-5-16-cutside-100x100-26t64drawing-100x100-2
6T64-2-8

6T64-2-8 – Straight Thread Fittings – Threadpiece, Female, Style I, Tube Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 64T
  • C: '7/16
  • Dim E Hex: '1-1/2
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Thread Size B: 1-3/8"-12
  • Thread Size D: 3/4"-16
  • Tube Size: '3/8 X 1/2

Specification Table

CPV-O-Seal64T
C'7/16
Dim E Hex'1-1/2
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Thread Size B1-3/8"-12
Thread Size D3/4"-16
Tube Size'3/8 X 1/2
