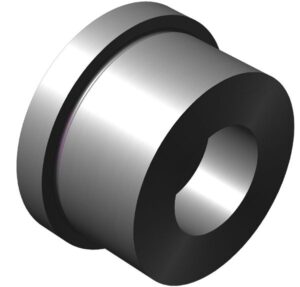

6R48-3-16 – Socket Weld Fittings – Tailpiece, Tube Size
6R48-3-16 – Socket Weld Fittings – Tailpiece, Tube Size6r48-5-16-cut-side-100x100-36r48drawing-100x100-3
6R48-3-16

6R48-3-16 – Socket Weld Fittings – Tailpiece, Tube Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 48R
  • C: '1/2
  • D: '1.003
  • E: '1/2
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Tube Size: '1/2 X 1

Specification Table

CPV-O-Seal48R
C'1/2
D'1.003
E'1/2
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Tube Size'1/2 X 1
