6R48-1-8

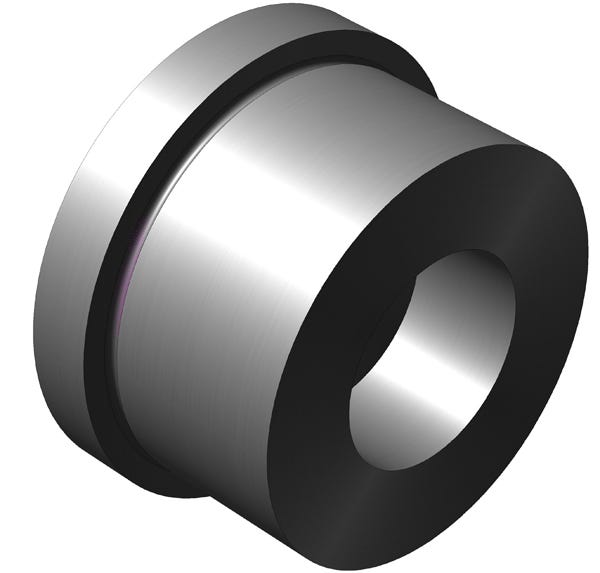

6R48-1-8 – Socket Weld Fittings – Tailpiece, Tube Size

Print Icon Print Download Icon Download PDF

Specification

  • CPV-O-Seal: 48R
  • C: '7/16
  • D: '0.506
  • E: '7/16
  • References: Technical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
  • Tube Size: '1/4 x 1/2

Specification Table

CPV-O-Seal48R
C'7/16
D'0.506
E'7/16
ReferencesTechnical Products 6000 Series Fitting and Ordering Information for TECH-O-SEAL Fittings (Catalog 1220).pdf
Tube Size'1/4 x 1/2
