6GSC81-2

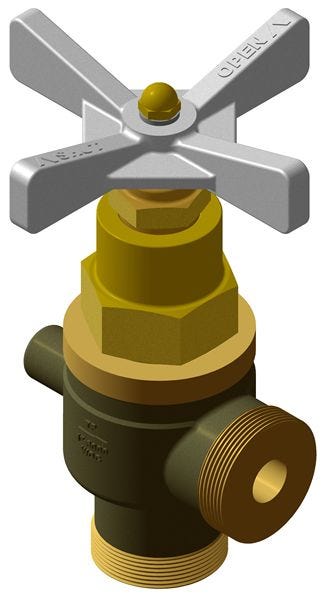

6GSC81-2 – Brass Angle Hose Valve

Print Icon Print Download Icon Download PDF

Specification

  • Approx Dimension B Closed In: 4-15/32''
  • Approx Dimension B Open In: 4-29/32''
  • Approx Dimension D In: 3-1/2''
  • CPV-O-Seal: 581''
  • C: 1-5/8''
  • Material: Bronze Body
  • References: Technical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
  • Thread Size E: 1-3/8"-12''

Specification Table

Approx Dimension B Closed In4-15/32''
Approx Dimension B Open In4-29/32''
Approx Dimension D In3-1/2''
CPV-O-Seal581''
C1-5/8''
MaterialBronze Body
ReferencesTechnical Products Valves & Accessories Valve Information for TECH-O-SEAL Valves (Catalog 1220).pdf
Thread Size E1-3/8"-12''
